10.15
Section 10
Reassembly
10
3. Install new plugs and torque to 24.4-29.8 N·m
(18-22 . lb.). See Figure 10-58.

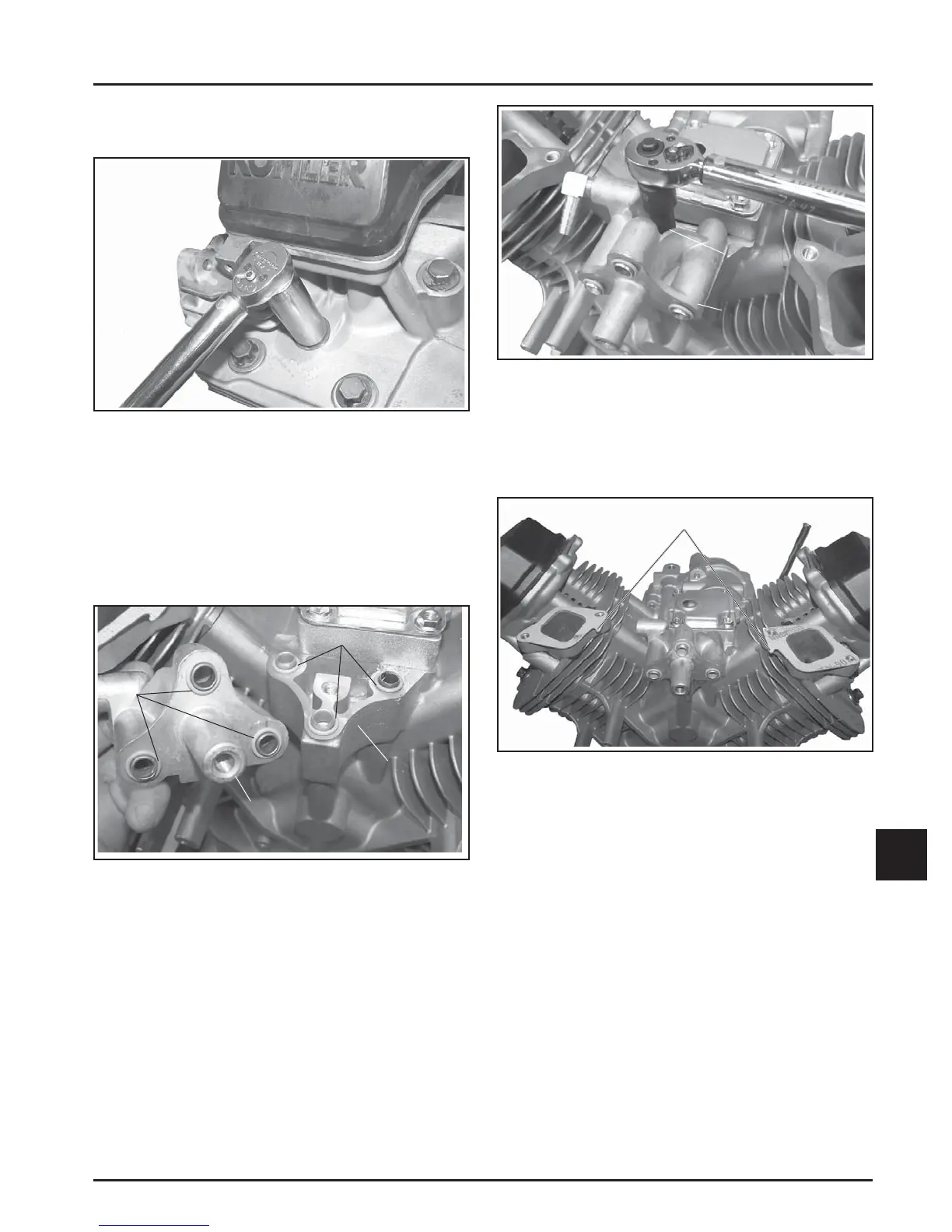

Figure 10-58. Installing Spark Plugs.
Install Oil Filter Adapter
1. Make sure all sealing surfaces are clean and the
three dowel pins are in place on the crankcase
adapter surface. Carefully install a new O-ring
around each of the dowel pins. Then install three
new O-rings onto the dowel pins of the oil fi lter
adapter. See Figure 10-59.
O-rings
O-rings
Crankcase
Adapter
Figure 10-59. Installed O-rings on Crankcase and
Oil Filter Adapter.
2. Install the oil fi lter adapter onto the crankcase.
Install and torque the M8 capscrew to 24.4 N·m
(216 in. lb.). See Figure 10-60.
Mounting
Screw
Oil Filter
Adapter
Figure 10-60. Torquing Oil Filter Adapter.
Install Intake Manifold
1. Install new intake manifold gaskets so the
notched section is inward and points toward the
fl ywheel side. See Figure 10-61.
Notches
Figure 10-61. Installed Intake Manifold Gaskets.
