Disassembly
Remove Carburetor Adapter and Heat
Deflector
1. Remove the two socket head cap screw securing
carburetor adapter, gaskets and heat deflector to
the cylinder head. See Figure 9-27.
2. Remove the carburetor adapter, heat shield, and
gaskets from the engine. See Figure 9-27.

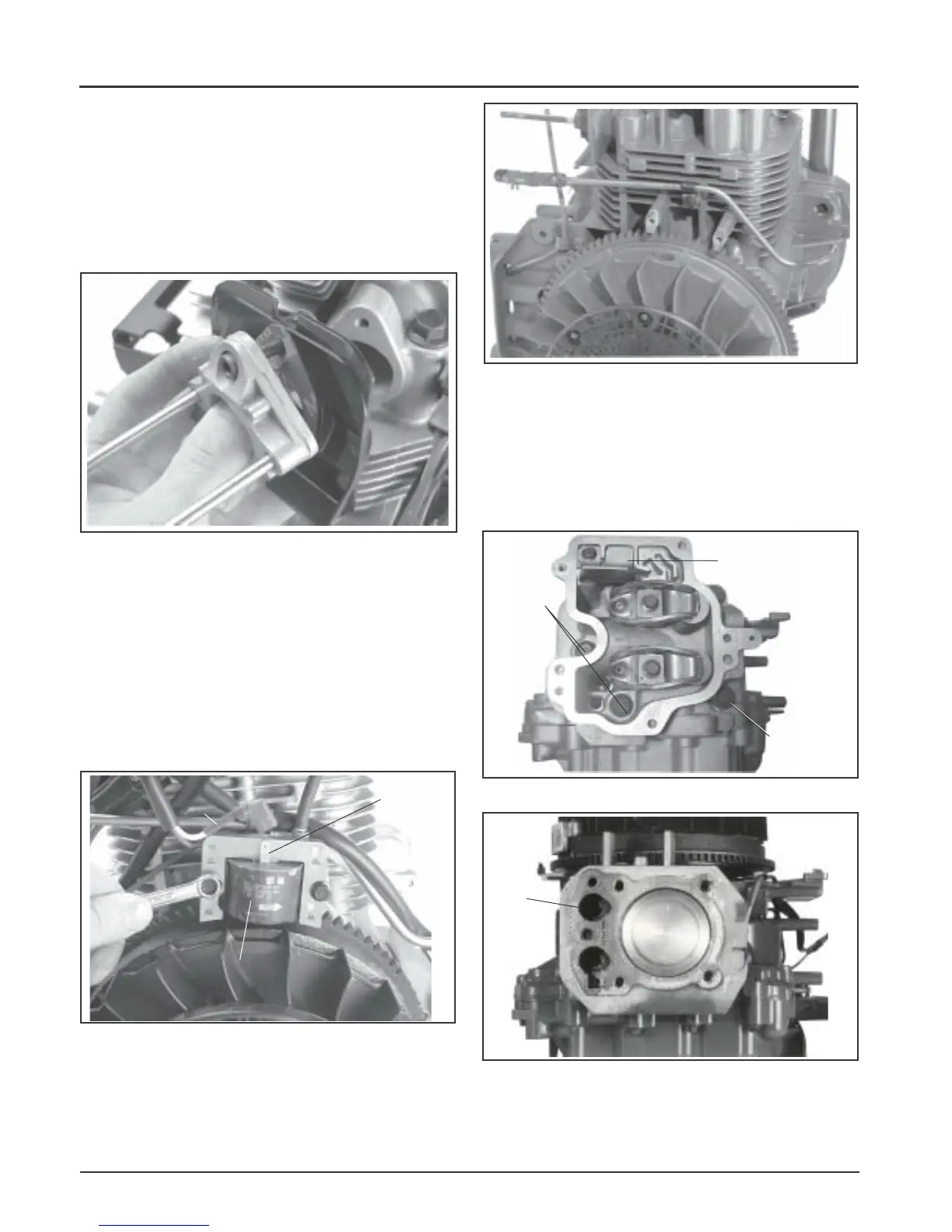

Figure 9-27. Removing Carburetor Adapter and
Heat Deflector.
Remove Ignition Module
1. Disconnect the kill lead from the ignition module
terminal. See Figure 9-28.
2. Rotate flywheel magnet away from ignition
module.
3. Remove the two hex flange screws and ignition
module.
Figure 9-29. Removing Fuel Line.
Remove Cylinder Head
1. Remove the hex flange screws, spacer (from the
screw by the exhaust port), cylinder head, push
rods, and cylinder head gasket. See Figures 9-30
and 9-31. Mark the push rods for reassembly.
Discard the screws. Do not reuse.
Figure 9-28. Removing Ignition Module.
Remove Fuel Line
1. Remove the hex flange screw, clip, and fuel line.
See Figure 9-29.
Figure 9-31. Removing Cylinder Head Gasket.
Figure 9-30. Removing Cylinder Head.
Kill
Lead
Kill
Terminal
Ignition Module
Cylinder
Head
Gasket
Hex Flange
Screws
Breather Reed
Retainer and
Breather Reed
Hex Flange
Screw and
Spacer
