11.2
Section 11
Reassembly

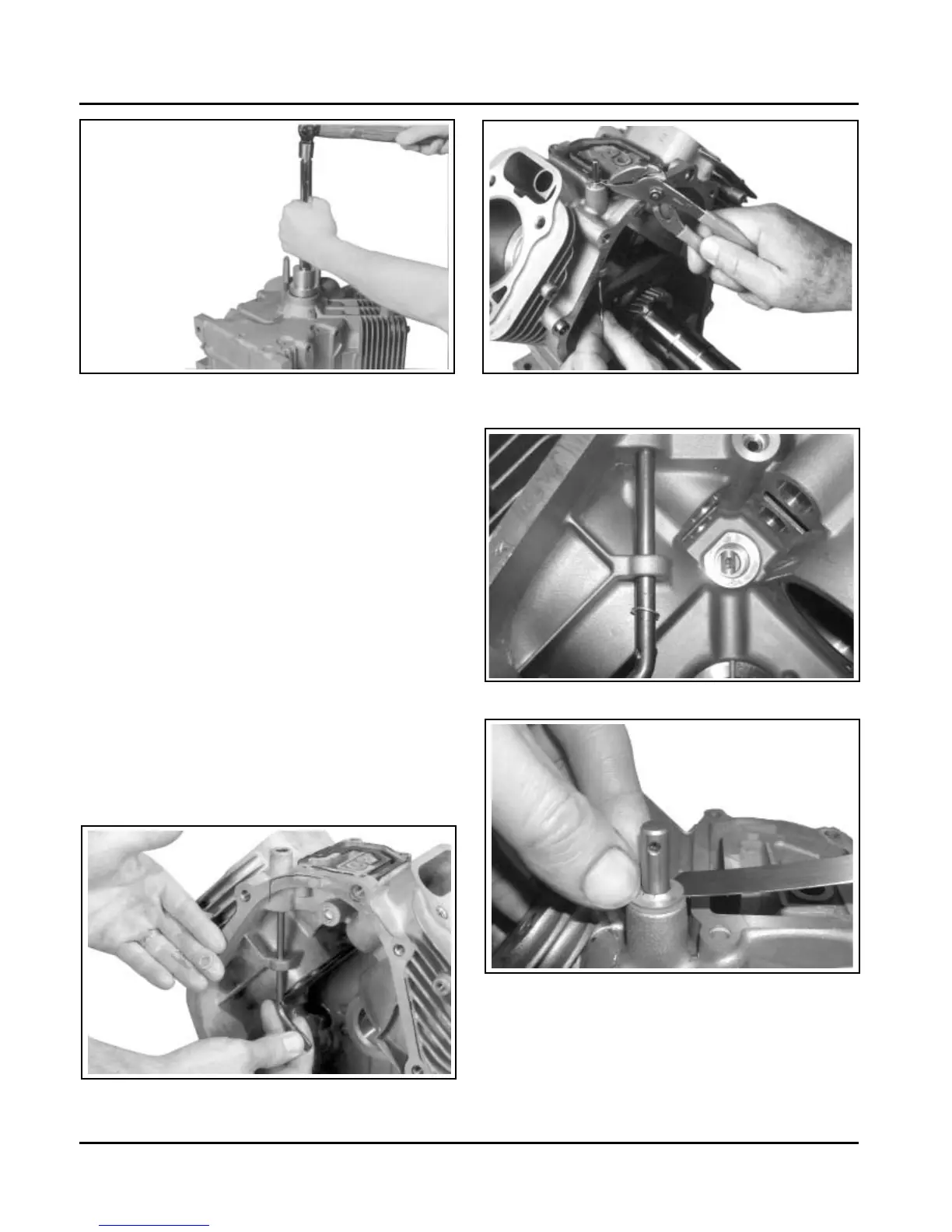

Figure 11-2. Installing Oil Seal.
Install Governor Cross Shaft
1. Lubricate the governor cross shaft bearing
surfaces in the crankcase with engine oil.
2. Slide the small lower washer onto the governor
cross shaft and install the cross shaft from the
inside of the crankcase.
3. 6 mm Governor Shaft: Install the plain washer
and then insert the hitch pin into the smaller, lower
hole of the governor cross shaft. See Figures 11-3
and 11-4.
8 mm Governor Shaft: Install the nylon washer
onto the governor cross shaft, then start the push-
on retaining ring. Hold the cross shaft up in
position, place a 0.50 mm (0.020 in.) feeler gauge
on top of the nylon washer, and push the retaining
ring down the shaft to secure. Remove the feeler
gauge, which will have established the proper end
play. See Figures 11-5 and 11-6.
Figure 11-4. Installing Governor Cross Shaft Hitch
Pin (6 mm Shaft).
Figure 11-3. Installing 6 mm Governor Cross Shaft.
Figure 11-6. Setting Governor Cross Shaft End Play
(8 mm Shaft).
Install Crankshaft
1. Carefully slide the flywheel end of the crankshaft
through the main bearing in the crankcase. See
Figure 11-7.
Figure 11-5. Installing 8 mm Governor Cross Shaft.
