4.3
Section 4
Air Cleaner and Air Intake System
4
5. Check the seal for any damage or deterioration.
Replace as necessary. See Figure 4-7.
6. Reinstall the seal, paper element, precleaner,
element cover, and wing nut.
7. Reinstall the air cleaner cover and secure with the
latches or the retaining knob.
NOTE: Make sure the correct depth air cleaner
element and rubber seal are used for the
engine spec involved. Some engines use
a deeper or extra capacity air cleaner
and a longer rubber seal.

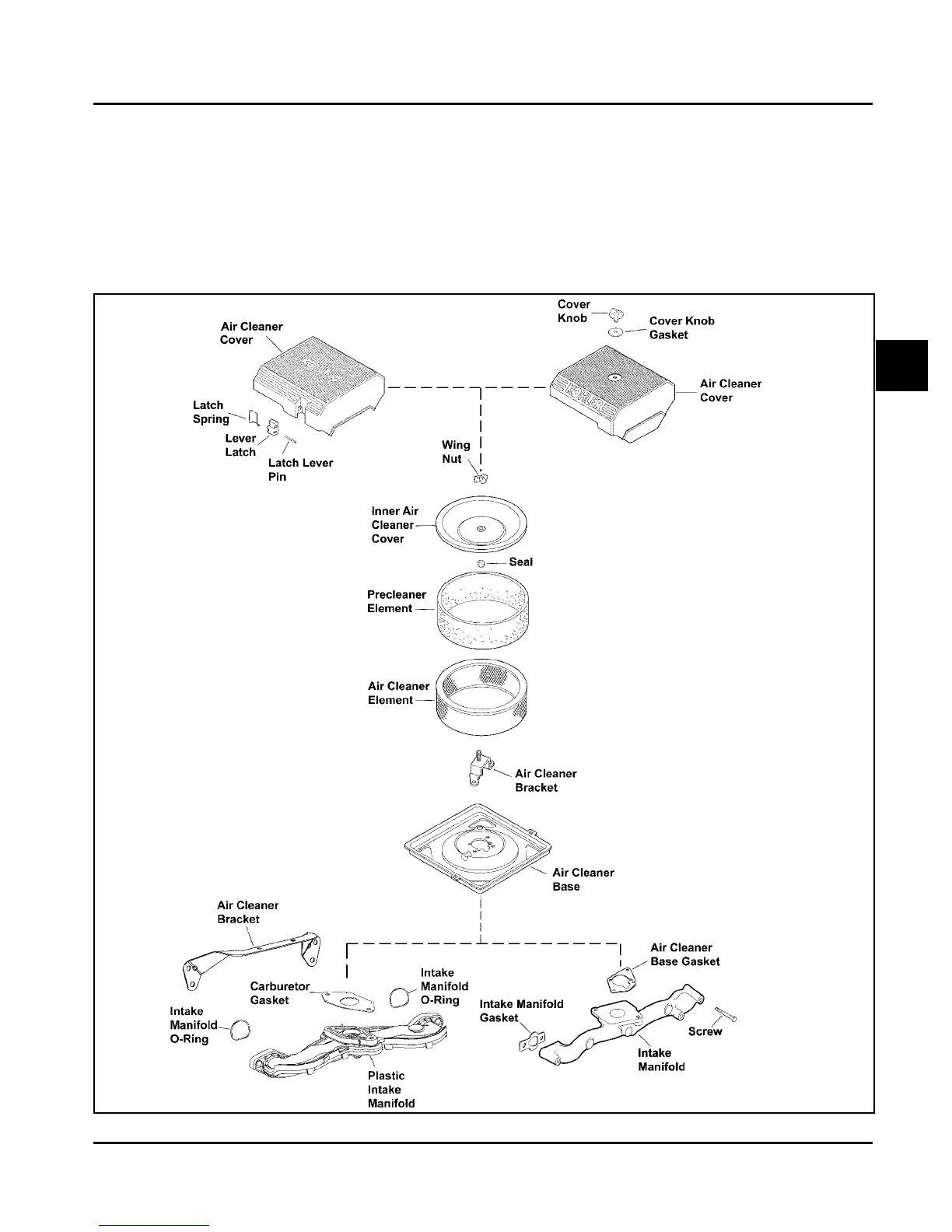

Figure 4-8. Exploded View of Standard Air Intake System Components.
