Kohler COMMAND CV17-745 - Page 10

1.8
Section 1
Safety and General Information

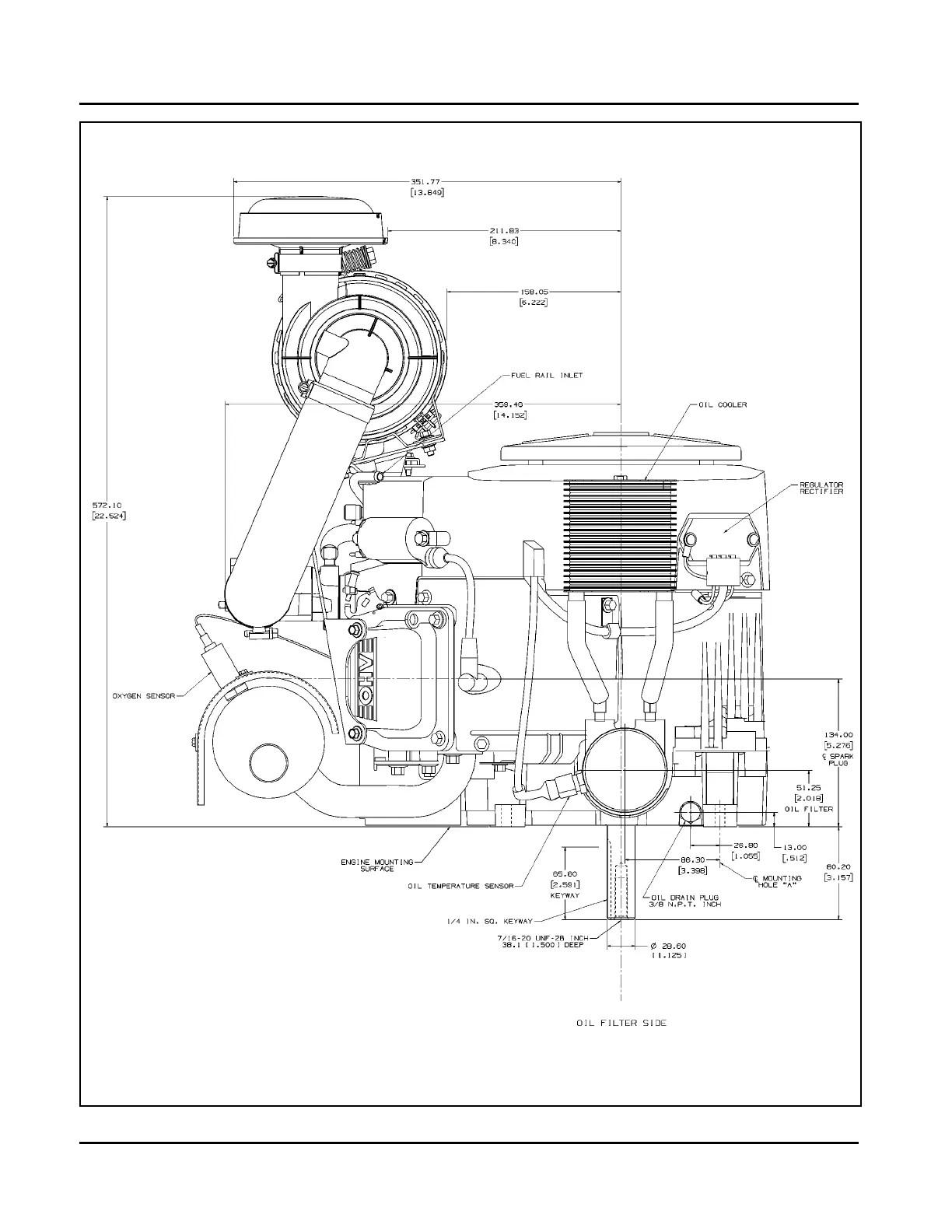

Figure 1-6. Typical Engine Dimensions CV EFI Series with Heavy-Duty Air Cleaner.
Dimensions in millimeters.
Inch equivalents shown in ().
