9.4
Section 9
Disassembly

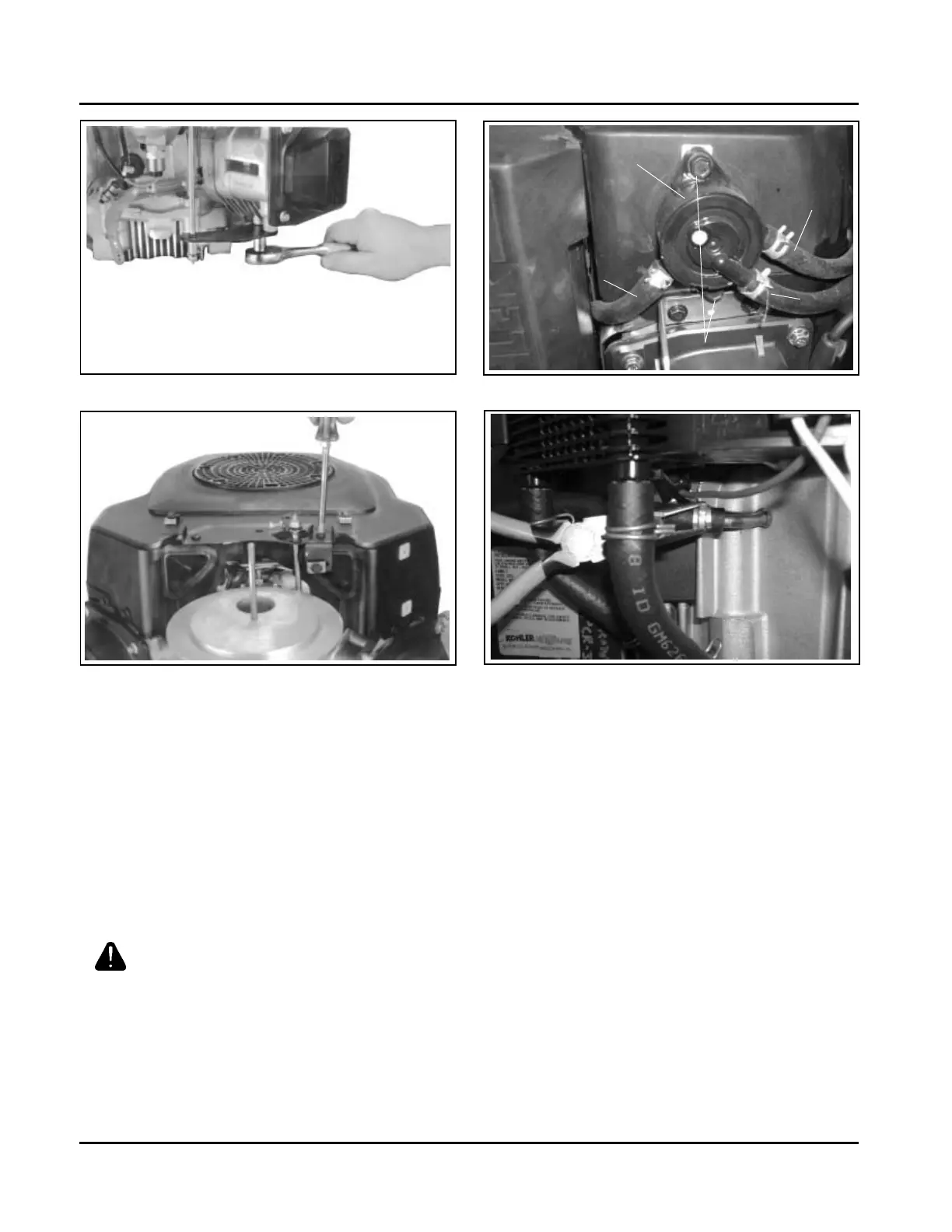

Figure 9-11. Removing Control Panel.
Remove Control Panel (If So Equipped)
1. Disconnect the Oil Sentry™ Indicator Light wires.
2. Disconnect the choke control cable from the
throttle control bracket.
3. Disconnect the throttle control shaft from the
throttle control bracket. See Figure 9-11.
4. Remove the panel from the blower housing.
Remove Fuel Pump
WARNING: Explosive Fuel!
Gasoline may be present in the carburetor and fuel
system. Gasoline is extremely flammable and its
vapors can explode if ignited. Keep sparks, open
flames and other sources of ignition away from the
engine.
1. Disconnect the fuel lines at the carburetor and at
Figure 9-10. Removing Throttle Control Bracket.
Figure 9-12. Pulse Fuel Pump Details.
Figure 9-13. Disconnecting Pulse Line from
Crankcase.
2. Disconnect the pulse (vacuum) hose from the
crankcase. See Figure 9-13.
3. Remove the two hex. flange mounting screws
from the blower housing and remove the fuel
pump and lines as an assembly. See Figure 9-12.
Remove Throttle Controls
1. Remove the four hex. flange screws securing the
throttle control bracket and lower air cleaner
bracket (some models), to the cylinder heads.
See Figures 9-14 and 9-15.
the in-line fuel filter. See Figure 9-12.
Fuel Pump
Outlet Hose (To
Carburetor)
Inlet
Hose
Pulse
Hose
Mounting Screws
