11.18
Section 11
Reassembly

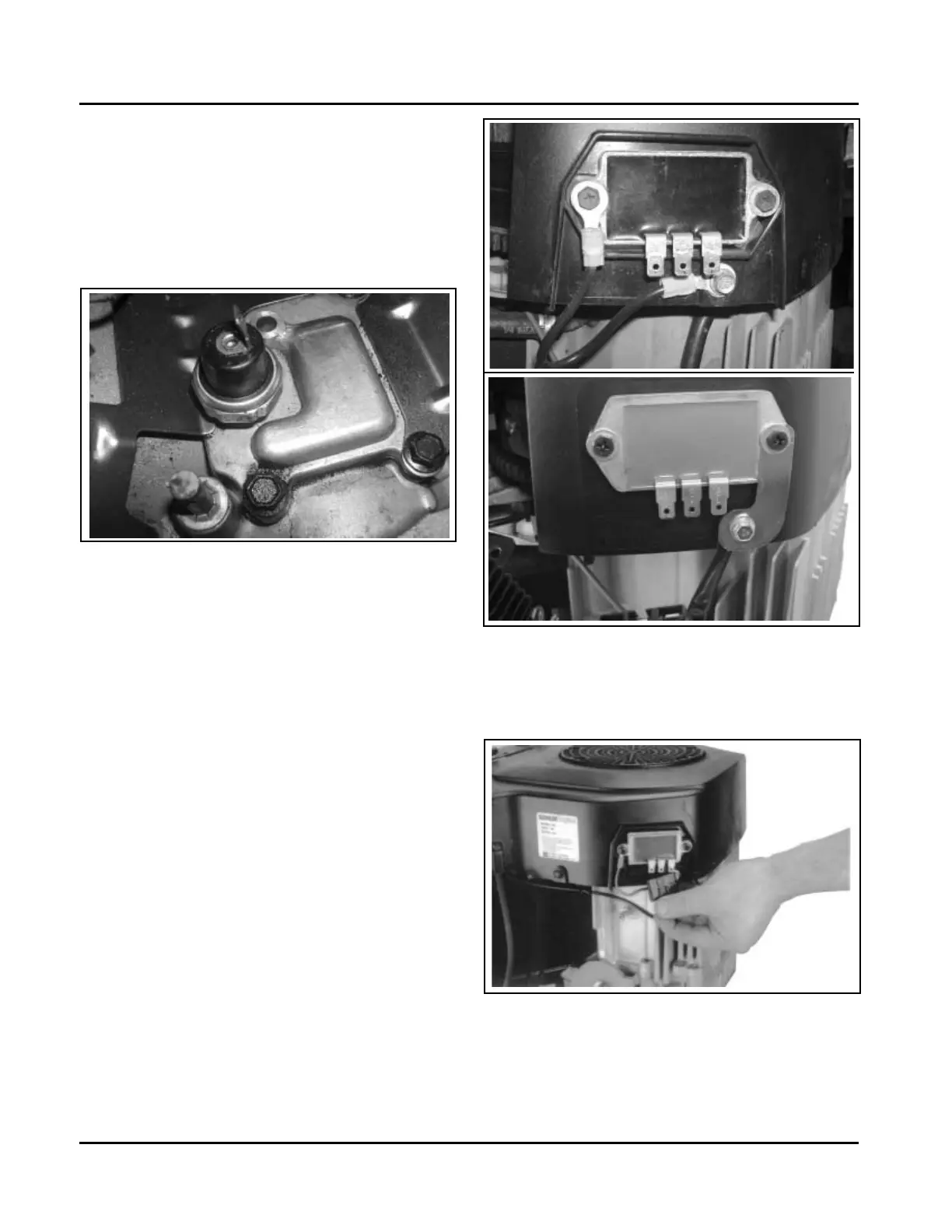

Figure 11-64. Rectifier-Regulator Ground Details.
2. Install the B+ terminal/lead into the center position
of the rectifier-regulator plug and connect the plug
to the rectifier-regulator. See Figure 11-65.
Figure 11-63. Oil Sentry™ Switch (Some Models).
Install Control Panel (If So Equipped)
1. Install the panel to the blower housing.
2. Connect the throttle control shaft to the throttle
control bracket.
3. Connect the choke control cable to the throttle
control bracket.
4. Connect the Oil Sentry™ indicator light wires.
Reconnect Rectifier-Regulator
1. Install the rectifier-regulator in the blower housing if
removed previously, then connect the rectifier-
regulator ground lead with the washer and the
silver screw through the eyelet as shown. If a
grounding bracket is used, secure with the
mounting screw and washer, against the outer
side of the rectifier-regulator. See Figure 11-64.
Install Oil Sentry™ (If So Equipped)
1. Apply pipe sealant with Teflon
®
(Loctite
®
No. 59241
or equivalent) to the threads of the Oil Sentry
™
switch and install it into the breather cover. See
Figure 11-63. Torque to 4.5 N·m (40 in. lb.).
2. Connect the wire lead (green) to the Oil Sentry
™
terminal.
Figure 11-65. Attaching Connector Plug.
SMART-SPARK
™
Module
1. On engines with SMART-SPARK
™
, reinstall the
SAM module to the blower housing or cylinder
baffle. Do not over-tighten the retaining screws.
