11.25
Section 11
Reassembly
11

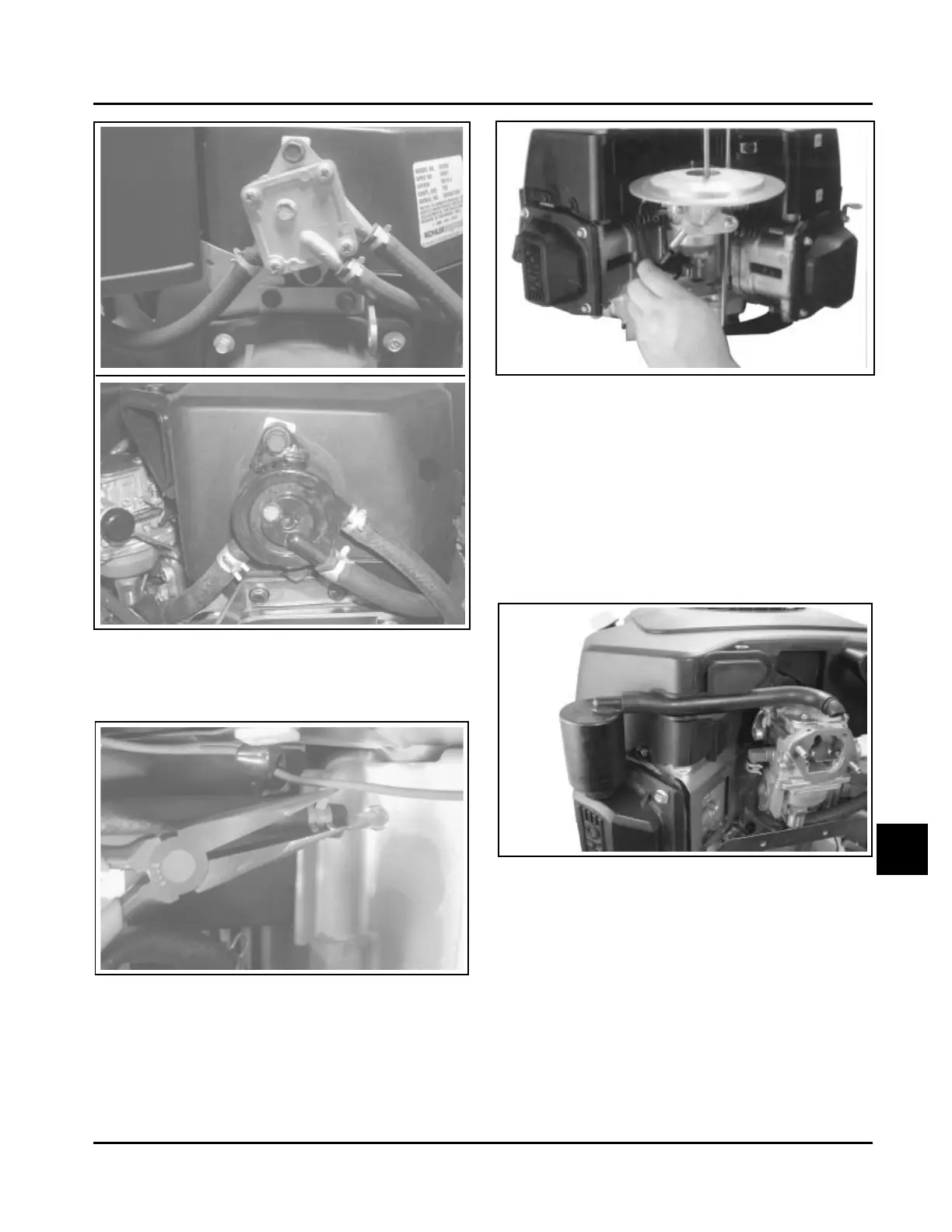

Figure 11-78. Install Pulse Line.
3. Connect the fuel lines. See Figure 11-79.
Figure 11-77. Reinstalled Fuel Pump.
2. Install the fuel pump using the two hex. flange
screws. Torque the screws to 2.3 N·m (20 in. lb.).
Figure 11-80. Breather Hose and Separator Details.
2. Position a new gasket and the air cleaner base on
the studs while carefully pulling the loose end of
the rubber breather hose through the base until
properly seated (collars sealed against each side
of the base. See Figure 11-81.
Metal-Cased
Pulse Fuel Pump
Plastic-Cased
Pulse Fuel Pump
Figure 11-79. Installing Fuel Line (Commercial
Mower Shown).
Install Air Cleaner Assembly
Refer to Section 4 for the air cleaner reassembly
procedure.
1. Connect the breather hose and attach the
breather separator to the valve cover. Position the
hose in the cutout of the blower housing (later
models). See Figure 11-80.
