Kohler Command PRO CH742 User Manual

Specifi cations
524 690 34 Rev. D KohlerEngines.com
319.12
[12.564]
SPARK PLUG
REMOVAL
311.90
[12.280]
SPARK PLUG
BOOT REMOVAL
526.84 [20.742]
PRIMARY AIR FILTER
ELEMENT REMOVAL
414.52 [16.320]
SAFETY AIR FILTER
ELEMENT REMOVAL
VA LVE
COVER
298.74
[11.761]
272.52
[10.729]
450.90
[17.752]
135.00
[5.315]
AIR FILTER
RAIN CAP
REMOVAL
92.98
[3.661]
FUEL PUMP
15.70 [.618]
OIL FILTER
REMOVAL
312.01 [12.284]
SPARK PLUG
BOOT REMOVAL
319.23 [12.568]
SPARK PLUG
REMOVAL
14.52 [.572]
SPARK PLUG
BOOT REMOVAL
10.09 [.397]
SPARK PLUG
BOOT
FUEL FILTER
FUEL PUMP
35.31 [1.390]
SPARK PLUG
REMOVAL
142.89
[5.626]
92.10
[3.626]
20°
MOUNTING
HOLE "A"
C
L
130.00 [5.118]
AIR FILTER
COVER
ASSEMBLY
REMOVAL
72.81 [2.867]
SPARK PLUG REMOVAL
52.02 [2.048]
SPARK PLUG BOOT REMOVAL
22.77 [.897]
SPARK PLUG BOOT
184.20
[7.252]
FLYWHEEL SIDE
CRANKSHAFT
C
L
20°
ENGINE MOUNTING SURFACE
4X Ø 10.3
MOUNTING HOLES (THRU)
ENGINE
C
L
SPARK
PLUG
C
L
370.68 [14.594]
42.25
[1.663]
115.88 [4.562]
30.00 [1.181]
32.00 [1.260]
EXHAUST PORT #2
67.50 [2.657]
MUFFLER MOUNTING
BOSSES
OIL FILL
OIL DIPSTICK
113.08 [4.452]
95.50 [3.760]
Ø 36.50 [1.437]
622.41
[24.504]
5/8-18 UNF 2B [INCH]
38.10 [1.500]
155.58
[6.125]
152.08 [5.987]
OIL FILTER
5.50 [.217]
PILOT
FUEL PUMP
100.00
[3.937]
89.00
[3.504]
51.00
[2.008]
52.75
[2.077]
OIL FILTER
12.28
[.483]
REGULATOR
RECTIFIER
ENGINE MOUNTING SURFACE
OIL DRAIN PLUG
3/8 NPT [INCH]
OIL FILTER SIDE
MOUNTING
HOLE "A"
C
L
A
(C-2,2)
A
334.78
[13.180]
75.35
[2.966]
122.10
[4.807]
65.00 [2.559]
MUFFLER
MOUNTING
M8 X 1.25
4 STUDS
50.00 [1.969]
EXHAUST
PORT #1
MOUNTING
HOLES
SOLENOID
SHIFT
STARTER
PILOT Ø 177.80 [7.000]
OPTIONAL PILOT Ø 146.050 [5.750]
ENGINE MOUNTING
SURFACE
7/16-14 UNC 2B [INCH]
21.0 [.827] Ø 196.85 [7.750] B.C.
283.58
[11.164]
MUFFLER
MOUNTING
308.17
[12.133]
50.00 [1.969]
EXHAUST
PORT #2
MOUNTING
HOLES
30°
OIL FILL LOCATION
LIFT STRAP
MOUNTING
HOLE "A"
C
L
PTO SIDE
3/8-16 UNC 2B [INCH]
21.0 [.827] Ø 165.1 [5.000] B.C.
7/16-14 UNC 2B [INCH]
21.0 [.827] Ø 196.85 [7.750] B.C.
OPTIONAL BOLT PATTERN
5/16-24 UNC 2B [INCH]
17.0 [.669] Ø 127.0 [5.000] B.C.
30°
'0)+0'
/1706+0)
574(#%'
/1706+0)
*1.'“#”
%
.

=?

=?
1+.&4#+02.7)
026=+0%*?

=?

=?
/7((.'4/1706+0)
$155'5

=?
':*#756
2146

=?
52#4-
2.7)
%
.
.+(6564#2

=?
56#46'45+&'

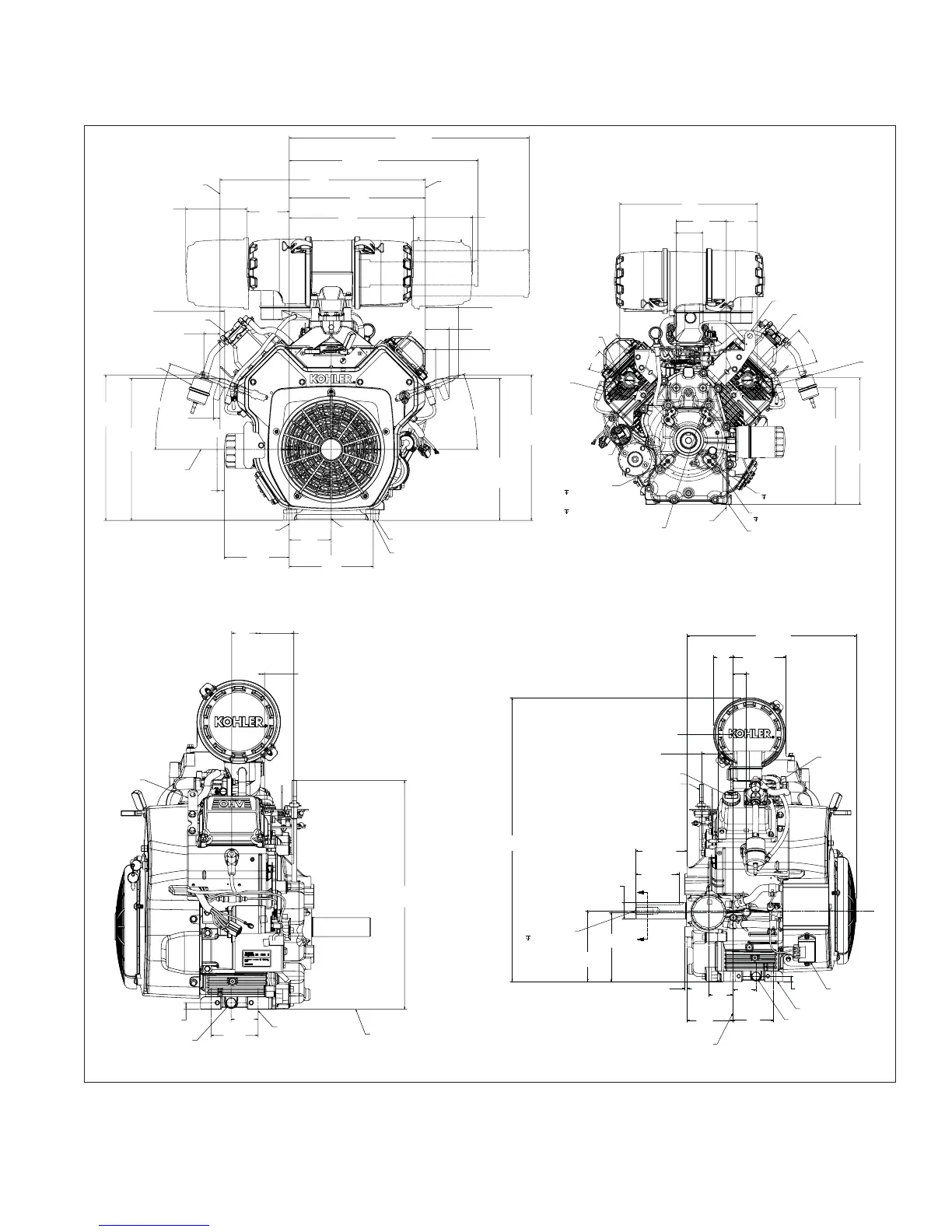

Engine Dimensions
Dimensions in millimeters.
Inch equivalents shown in [ ].

Kohler Command PRO CH742 Specifications

General

Brand	Kohler
Model	Command PRO CH742
Category	Engine
Language	English
