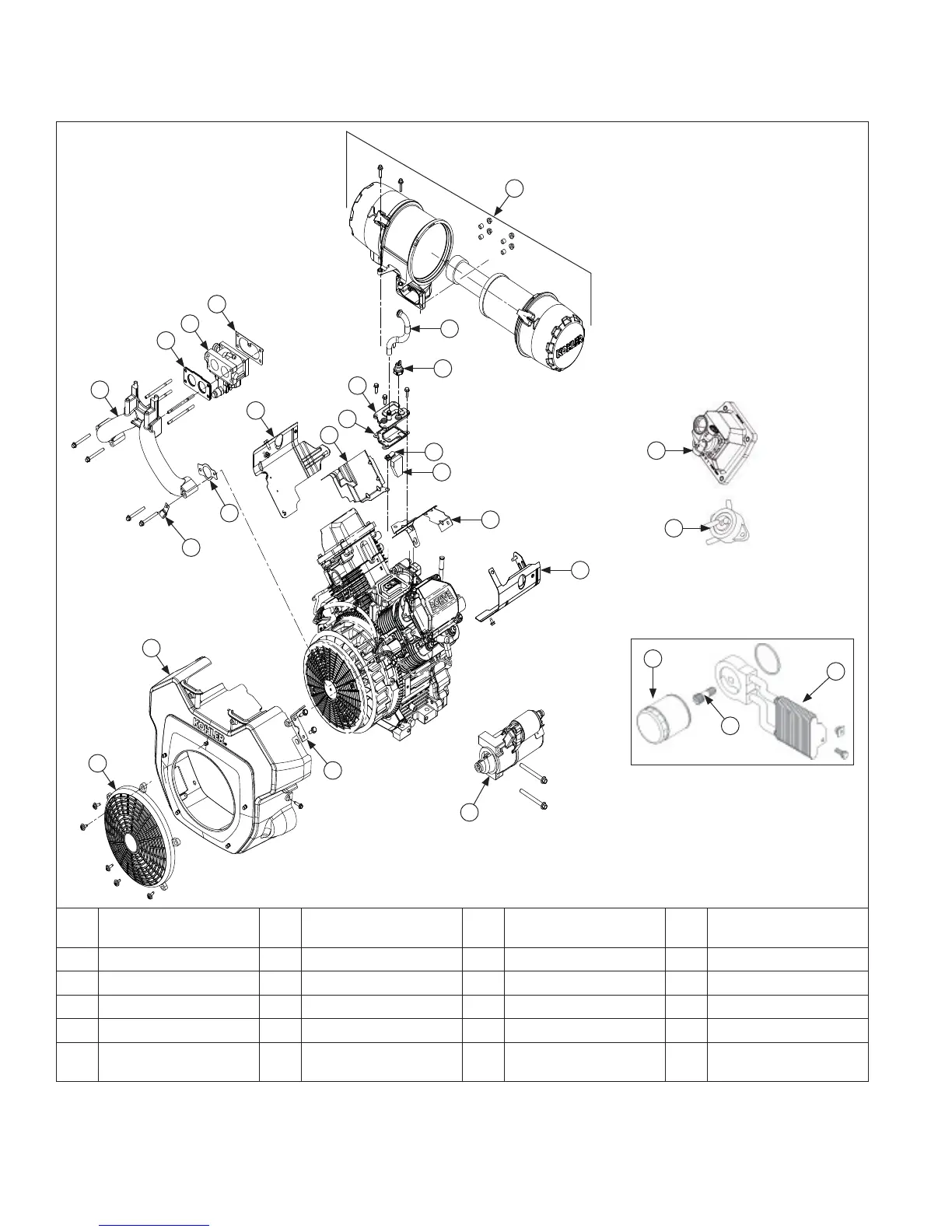

External Engine Components
V
W
A
P
Q
C
D
E
F
I
K
J
H
G
L
F
O
R
B
N
T
U
S
X
M
K
A Intake Manifold B
Intake Manifold
Gasket
C Carburetor Gasket D Carburetor
E Air Cleaner Gasket F Outer Baffl e G Breather Tube H Oil Sentry
™
I Breather Cover J Breather Gasket K Inner Baffl e L Breather Reed
M Filter N Electric Starter O Lifting Bracket P Fixed Guard
Q Blower Housing R Wire Clip S Oil Filter T Nipple
U Oil Cooler V
Valve Cover Fuel
Pump
W Pulse Fuel Pump X Air Cleaner
Reassembly
64 24 690 34 Rev. DKohlerEngines.com
