Specifi cations
KohlerEngines.com 14 690 12 Rev. --

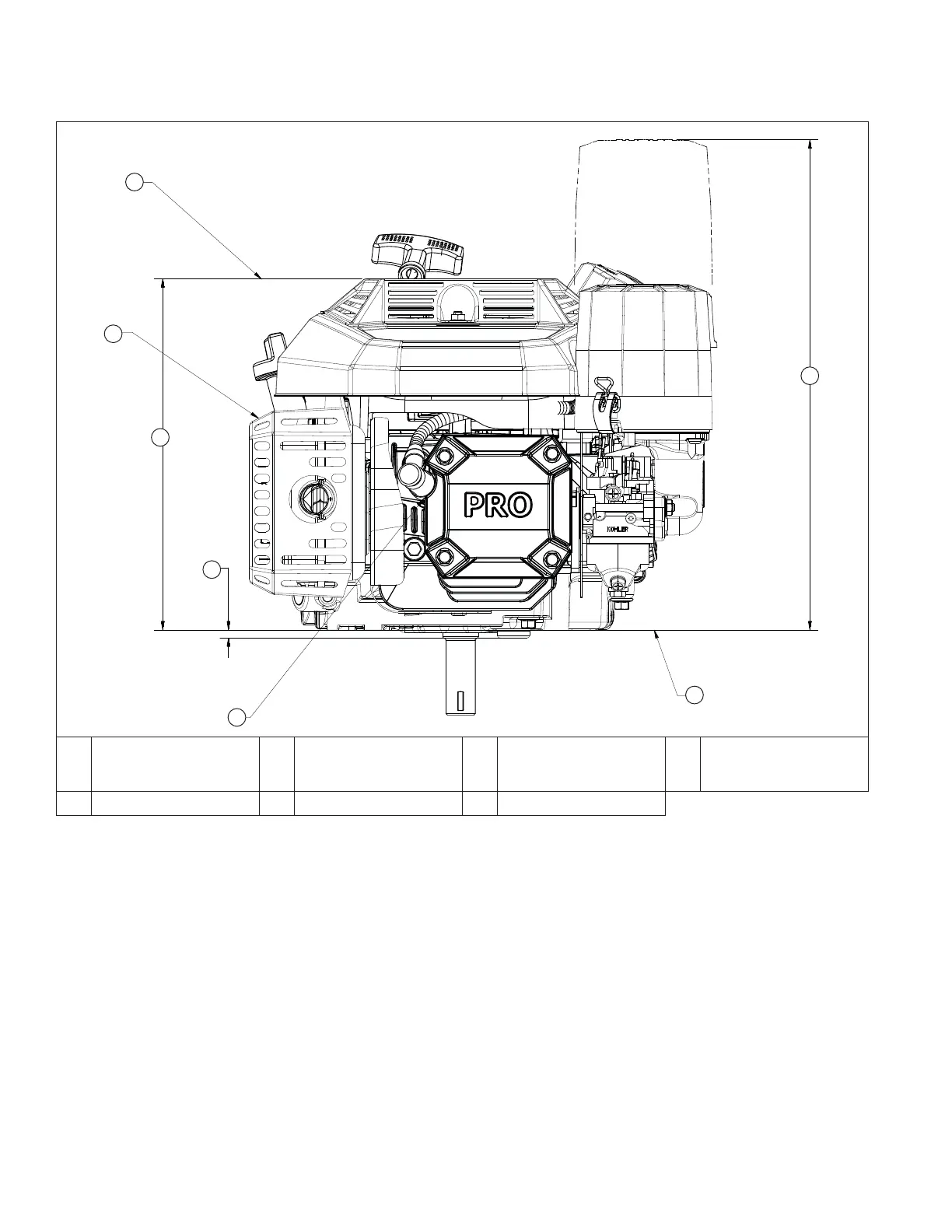

CV200, CV224 Engine Dimensions-Valve Cover Side
B
F
A
C
D
E
G
A
370.01 mm (14.567 in.)
Air Cleaner Cover
Removal
B
Engine Mounting
Surface
C Spark Plug D 6.00 mm (0.236 in.)
E 265.11 mm (10.437 in.) F Front Exit Muffl er G Top of Recoil
