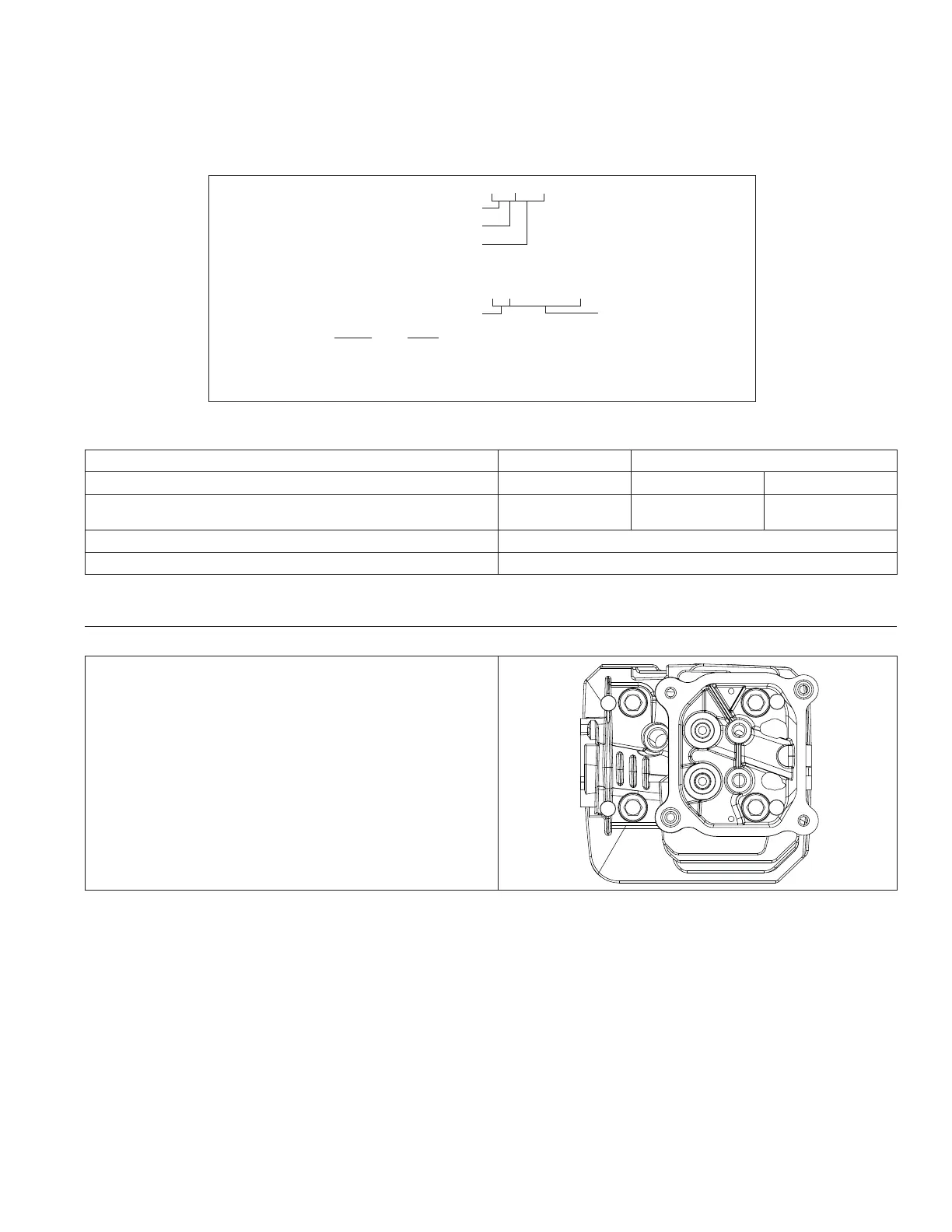

13
Specifi cations
14 690 12 Rev. -- KohlerEngines.com
ENGINE IDENTIFICATION NUMBERS
Kohler engine identifi cation numbers (model, specifi cation and serial) should be referenced for effi cient repair,
ordering correct parts, and engine replacement.
Model . . . . . . . . . . . . . . . . . . . . . CV173
Command Engine
Vertical Shaft
Numerical Designation
Specifi cation . . . . . . . . . . . . . . . CV173-3001
Serial . . . . . . . . . . . . . . . . . . . . . 4823500328
Year Manufactured Code Factory Code
Code Year
48 2018
49 2019
50 2020
GENERAL SPECIFICATIONS
3,5
CV173 CV200 CV224
Bore 70 mm (2.75 in.) 73 mm (2.87 in.)
Stroke 45 mm (1.80 in.) 48 mm (1.89 in.) 53.5 mm (2.11 in.)
Displacement
173 cc
(10.6 cu. in.)
200 cc
(12.2 cu. in.)
224 cc
(13.7 cu. in.)
Oil Capacity (refi ll) 0.70 L (24 oz.)
Maximum Angle of Operation (@ full oil level)
4
25°
TORQUE SEQUENCES CV173 CV200 CV224
(Refer to Torque Specifi cations for torque values.)
Cylinder Head Fasteners
2
4
1
3
3
Values are in Metric units. Values in parentheses are English equivalents.
4
Exceeding maximum angle of operation may cause engine damage from insuffi cient lubrication.
5
Any and all horsepower (hp) references by Kohler are Certifi ed Power Ratings and per SAE J1940 & J1995 hp
standards. Details on Certifi ed Power Ratings can be found at KohlerEngines.com.
