Specifi cations
KohlerEngines.com 14 690 12 Rev. --

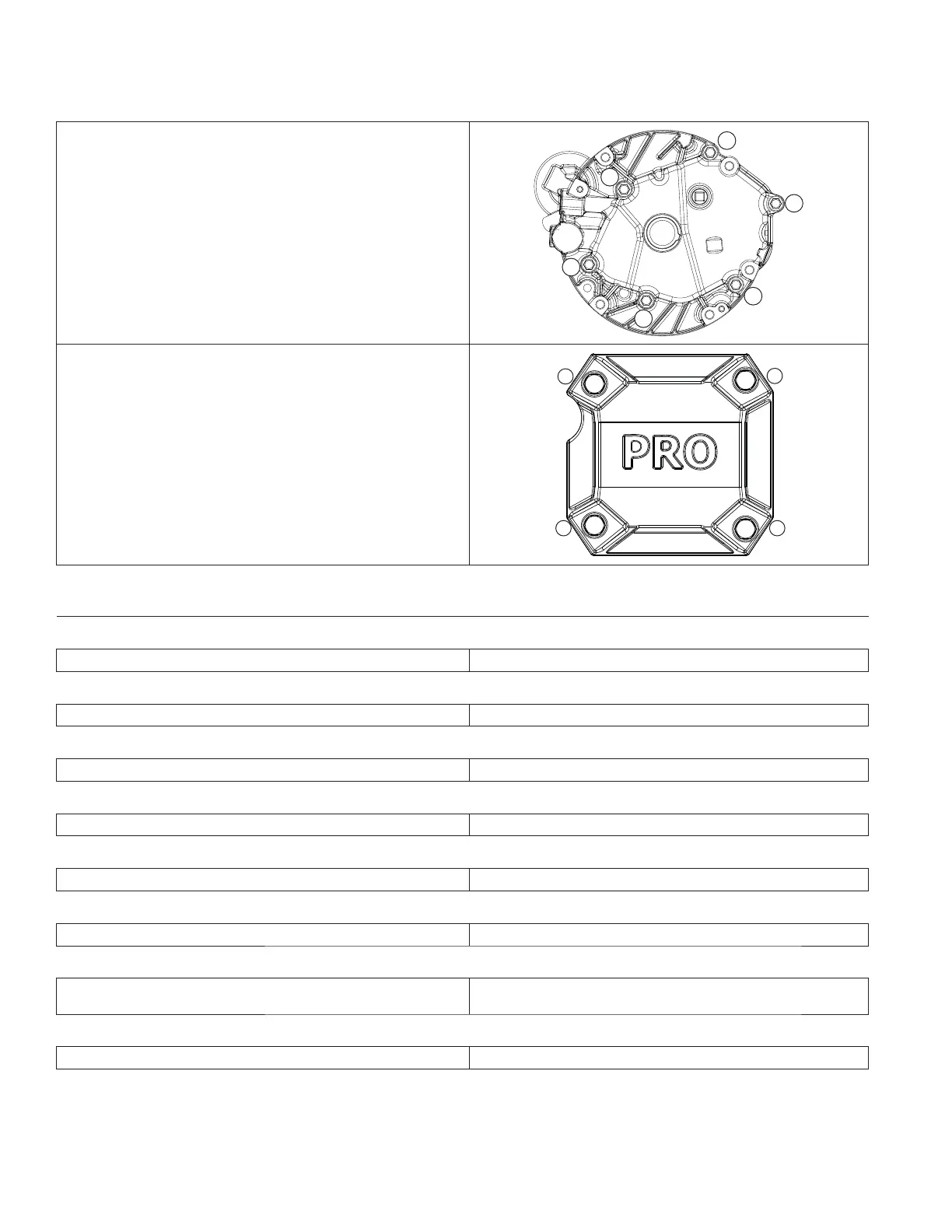

TORQUE SEQUENCES CV173 CV200 CV224
Oil Pan Fasteners
1
6
4
5
3
2
Valve Cover Fasteners
2
41
3
TORQUE SPECIFICATIONS
3,6
CV173 CV200 CV224
Air Cleaner Base to Carb Studs
Nut 8 N·m (71 in. lb.)
Blower Housing/Engine Cover/Retractable Starter
Stud 10 N·m (89 in. lb.)
Brake (if equipped)
Mounting Fastener 9.5 N·m (84 in. lb.)
Breather Cover
Fastener 10 N·m (89 in. lb.)
Carburetor
Stud 5 N·m (44 in. lb.)
Connecting Rod
Cap Fastener (torque in increments) 12.5 N·m (111 in. lb.)
Cylinder Head (torque sequence on page 13)
Fastener (torque in 2 increments) fi rst to 13 N·m (115 in. lb.)
fi nally to 25.7 N·m (227 in. lb.)
Dipstick Tube
Fastener 8 N·m (71 in. lb.)
3
Values are in Metric units. Values in parentheses are English equivalents.
6
Lubricate threads with engine oil prior to assembly.
