Specifi cations
KohlerEngines.com 14 690 12 Rev. --

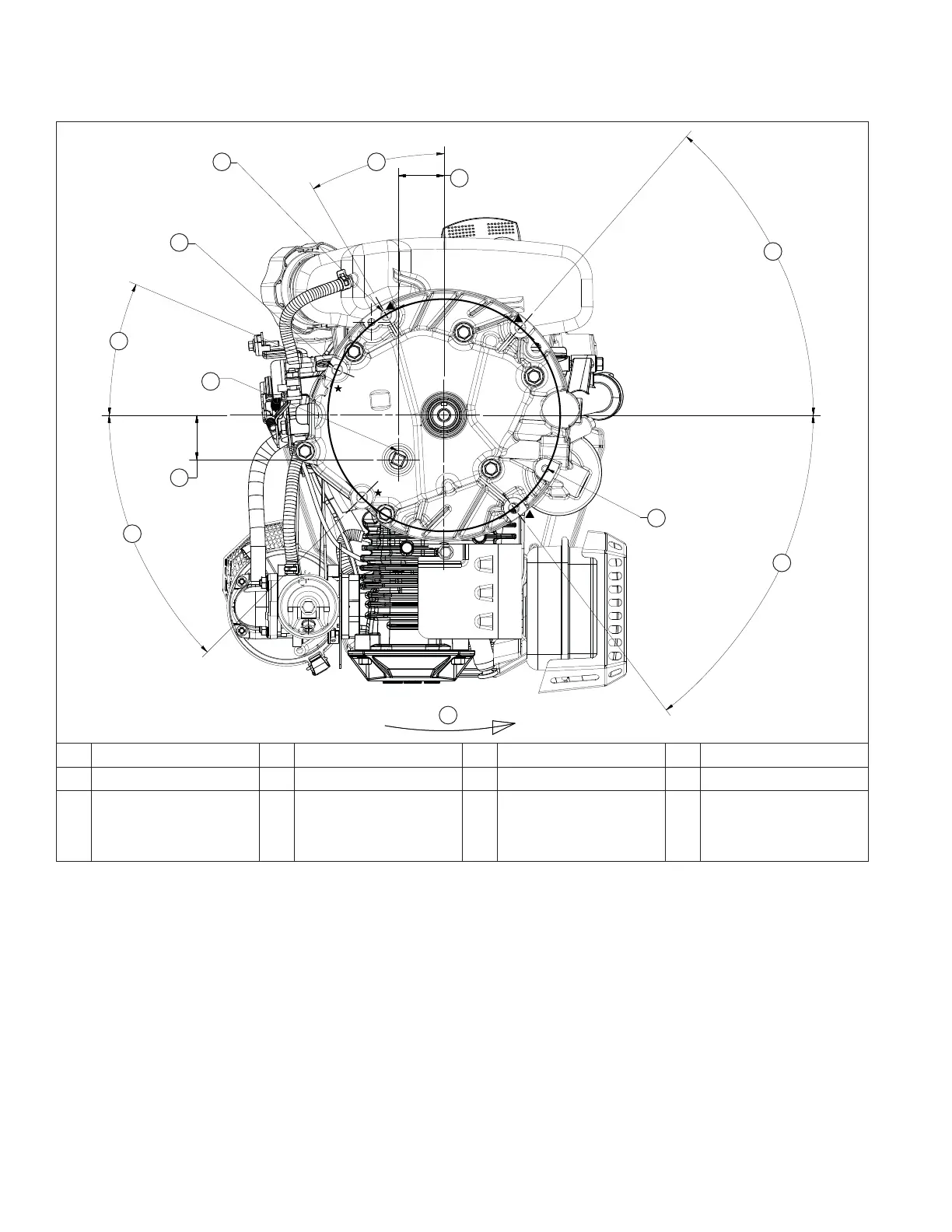

CV200, CV224 Engine Dimensions-Engine Mounting Surface (PTO Side)
B
F
A
C
D
E
G
I
H
J
K L
A 49° B 53° C Ø 203.20 mm (8.00 in.) D Rotation Direction
E 40.00 mm (1.575 in.) F 45° G 39.00 mm (1.535 in.) H Optional Oil Drain Plug
I 23° J
2 X Ø 8.75 mm (0.344
in.) 27.5 mm (1.08
in.) Deep Marked
as 
K
3 X Ø 8.75 mm (0.344
in.) Thru Marked
as ▲
L 30°
