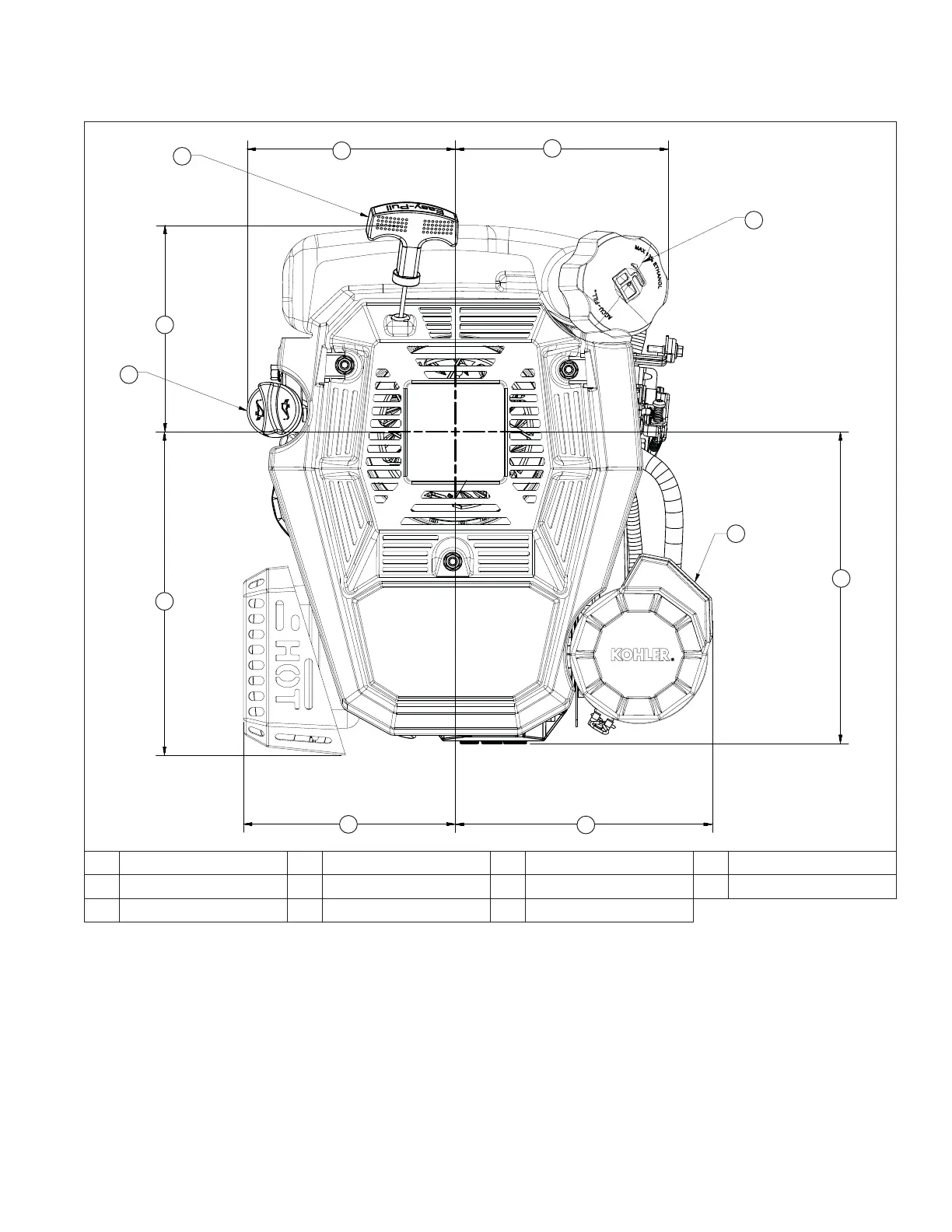

CV200, CV224 Engine Dimensions-Flywheel Side
B
F
A
C
D
E
G
I
J
K
H
A 156.63 mm (6.167 in.) B 160.24 mm (6.309 in.) C Fuel Fill D 234.45 mm (9.230 in.)
E Air Filter and Cover F 193.30 mm (7.610 in.) G 159.40 mm (6.276 in.) H 243.27 mm (9.578 in.)
I Oil Fill and Dipstick J 155.35 mm (6.116 in.) K Recoil Rear Pull
