8.7
Section 8
Disassembly
8

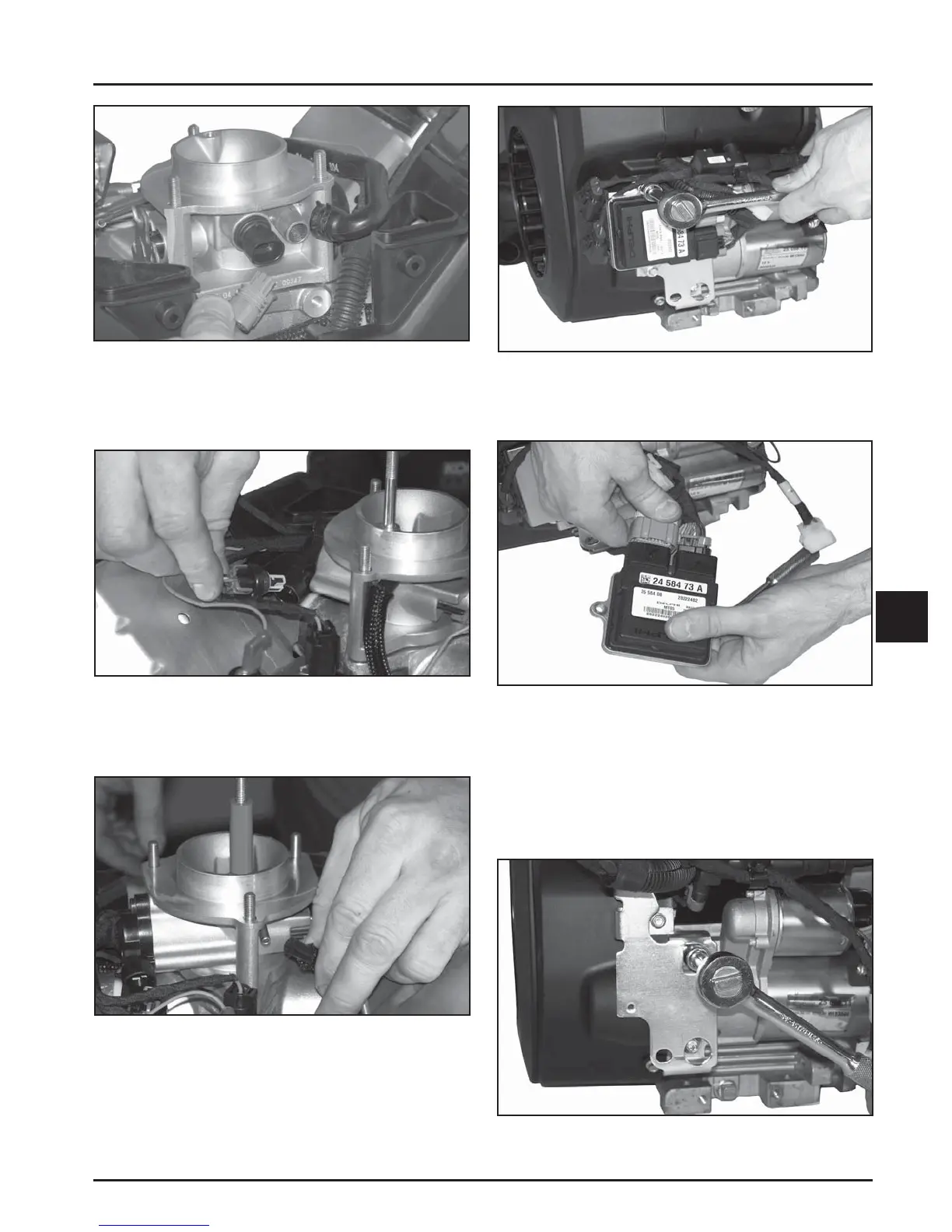

Figure 8-24. Disconnecting Intake Air Temperature
Sensor.
3. Disconnect the thro le position sensor connector.
See Figure 8-25.
Figure 8-25. Disconnecting Throttle Position
Sensor.
4. Disconnect the vent hose from the thro le body.
See Figure 8-26.
Figure 8-26. Disconnecting Vent Hose.
5. Slide the thro le body o the intake manifold.
Remove Electronic Control Unit (ECU)
1. Remove the two hex ange screws securing the
ECU to the bracket. See Figure 8-27.
Figure 8-27. Removing ECU Fasteners.
2. Disconnect the Black and Grey electrical
connectors from the ECU. See Figure 8-28.
Figure 8-28. Disconnecting the ECU Electrical
Connectors.
Remove Electronic Control Unit Bracket
and Electric Starter Motor
1. Disconnect the leads from the starter.
2. Remove the two hex ange screws. See Figure 8-29.
Figure 8-29. Removing Electric Starter Motor.
Mounting
Bolts
