8.6
Section 8
Disassembly

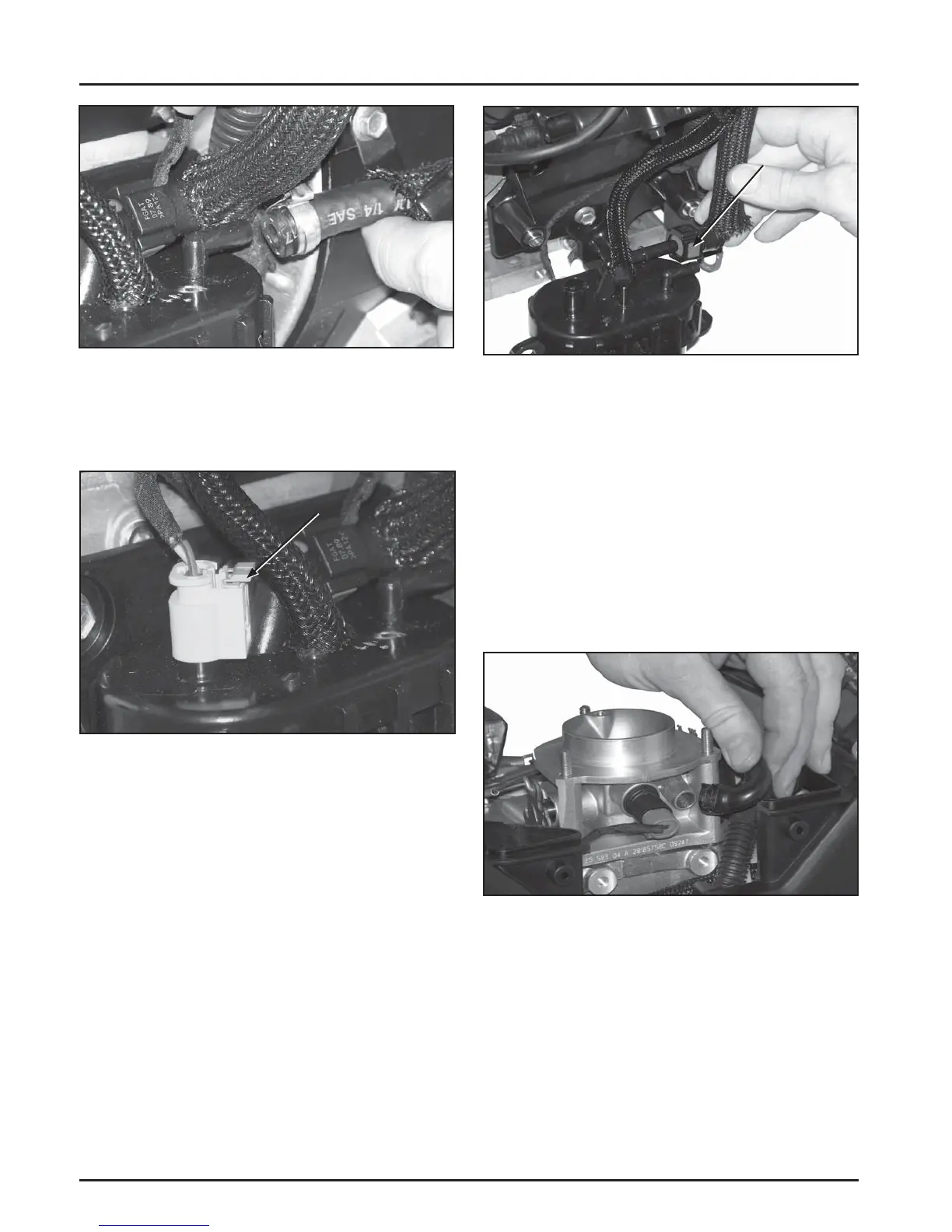

Figure 8-22. Slowly Pull Connector.
NOTE: Figure 8-22 depicts removing the connector
without a shop towel wrapped around it for
instructional purposes only.
6. Disconnect the vent hose from the top of the fuel
pump module.
7. Remove the screws securing the fuel pump
module baffl e which the pump was mounted to.
Remove Throttle Body
1. Disconnect the breather tube from the thro le
body. See Figure 8-23.
Figure 8-23. Disconnecting the Breather Tube.
2. Disconnect the intake air temperature sensor
from the thro le body. See Figure 8-24.
Grey Release Tab
Grey Release Tab
Release Button
Release Button
Figure 8-20. Remove Inlet Fuel Line and Oetiker
Clamp.
3. Disconnect the yellow electrical connector by
pulling up on the grey tab to release. See Figure
8-21.
Figure 8-21. Disconnect Electrical Connector.
4. Wrap a shop towel completely around the high
pressure fuel line connector.
5. Press the release bu on(s) and slowly pull the
connector away from the fuel pump module,
allowing the shop towel to absorb any residual
fuel in the high pressure fuel line. Any spilled
fuel must be completely wiped up immediately.
See Figure 8-22.

Kohler Command PRO ECH749 Specifications

General

Fuel System	Carburetor
Starter	Electric
Governor Type	Mechanical
Lubrication System	Full Pressure
Fuel Type	Gasoline
Crankshaft Orientation	Horizontal
Bore	3.27 in (83 mm)
Cooling System	Air
Oil Type	SAE 10W-30
Spark Plug Gap	0.030 in (0.76 mm)
Valve Clearance - Intake	0.004 - 0.006 in (0.10 - 0.15 mm)
Crankshaft Type	Varies by model
Crankshaft Thread Size	Varies by model
Crankshaft Length	Varies by model
Crankshaft Diameter	Varies by model
Type	Overhead Valve (OHV)
