Kohler Command PRO ECH749 Service Manual

7.10
Section 7
Electrical System and Components

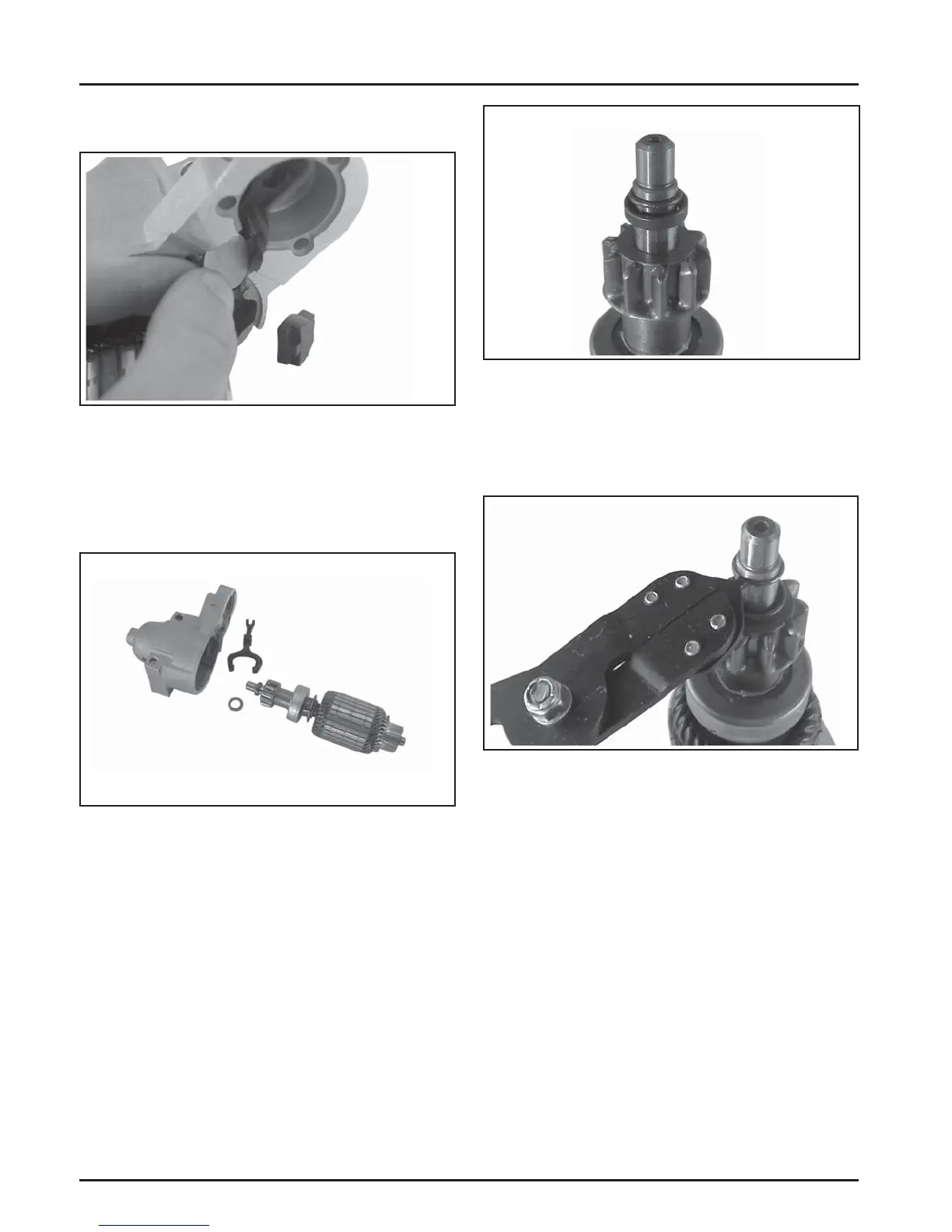

Figure 7-17. Retaining Ring Detail.
10. Remove the retainer from the armature sha .
Save the stop collar. See Figure 7-18.
NOTE: Do not reuse the old retainer.
Figure 7-16. Armature and Lever Removed.
9. Push the stop collar down to expose the retaining
ring. See Figure 7-17.
6. Remove the rubber grommet and backing plate
from the end cap. See Figure 7-15.
Figure 7-15. Rubber Grommet and Backing Plate.
7. Take out the drive lever and pull the armature
out of the drive end cap. See Figure 7-16.
8. Remove the thrust washer from the armature
sha . See Figure 7-16.
Figure 7-18. Removing Retaining Ring.
11. Remove the drive pinion assembly from the
armature.
12. Clean the parts as required.
NOTE: Do not soak the armature or use solvent
when cleaning. Wipe clean using a so cloth,
or use compressed air.

Kohler Command PRO ECH749 Specifications

General

Fuel System	Carburetor
Starter	Electric
Governor Type	Mechanical
Lubrication System	Full Pressure
Fuel Type	Gasoline
Crankshaft Orientation	Horizontal
Bore	3.27 in (83 mm)
Cooling System	Air
Oil Type	SAE 10W-30
Spark Plug Gap	0.030 in (0.76 mm)
Valve Clearance - Intake	0.004 - 0.006 in (0.10 - 0.15 mm)
Crankshaft Type	Varies by model
Crankshaft Thread Size	Varies by model
Crankshaft Length	Varies by model
Crankshaft Diameter	Varies by model
Type	Overhead Valve (OHV)
