Kohler Command PRO ECH749 Service Manual

7
7.9
Section 7
Electrical System and Components

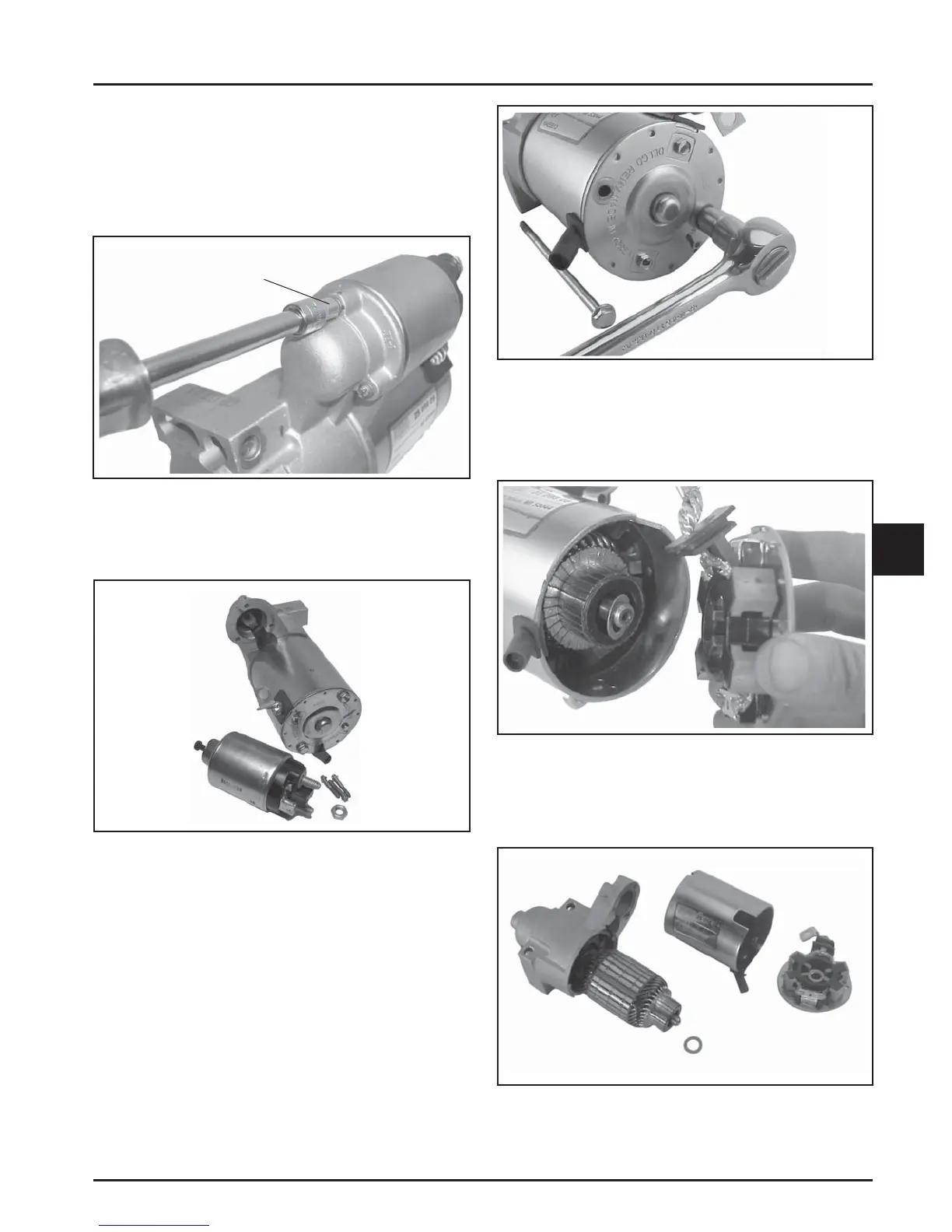

Starter Disassembly
1. Remove the hex nut and disconnect the positive
(+) brush lead/bracket from the solenoid terminal.
2. Remove the three screws securing the solenoid to
the starter. See Figure 7-10.
Figure 7-10. Removing Solenoid Screws.
NOTE: Test procedure for checking starter solenoid
on pages 7.16 and 7.17.
Torx Head Screws
Figure 7-11. Solenoid Removed from Starter.
3. Remove the two thru (larger) bolts. See Figure
7-12.
Figure 7-12. Removing Thru Bolts.
4. Remove the commutator end plate assembly,
containing the brush holder, brushes, springs,
and locking caps. Remove the thrust washer from
inside the commutator end. See Figure 7-13.
Figure 7-13. Removing Commutator End Plate
Assembly.
5. Remove the frame from the armature and drive
end cap. See Figure 7-14.
Figure 7-14. Starter Frame Removed.

Kohler Command PRO ECH749 Specifications

General

Fuel System	Carburetor
Starter	Electric
Governor Type	Mechanical
Lubrication System	Full Pressure
Fuel Type	Gasoline
Crankshaft Orientation	Horizontal
Bore	3.27 in (83 mm)
Cooling System	Air
Oil Type	SAE 10W-30
Spark Plug Gap	0.030 in (0.76 mm)
Valve Clearance - Intake	0.004 - 0.006 in (0.10 - 0.15 mm)
Crankshaft Type	Varies by model
Crankshaft Thread Size	Varies by model
Crankshaft Length	Varies by model
Crankshaft Diameter	Varies by model
Type	Overhead Valve (OHV)
