7.14
Section 7
Electrical System and Components

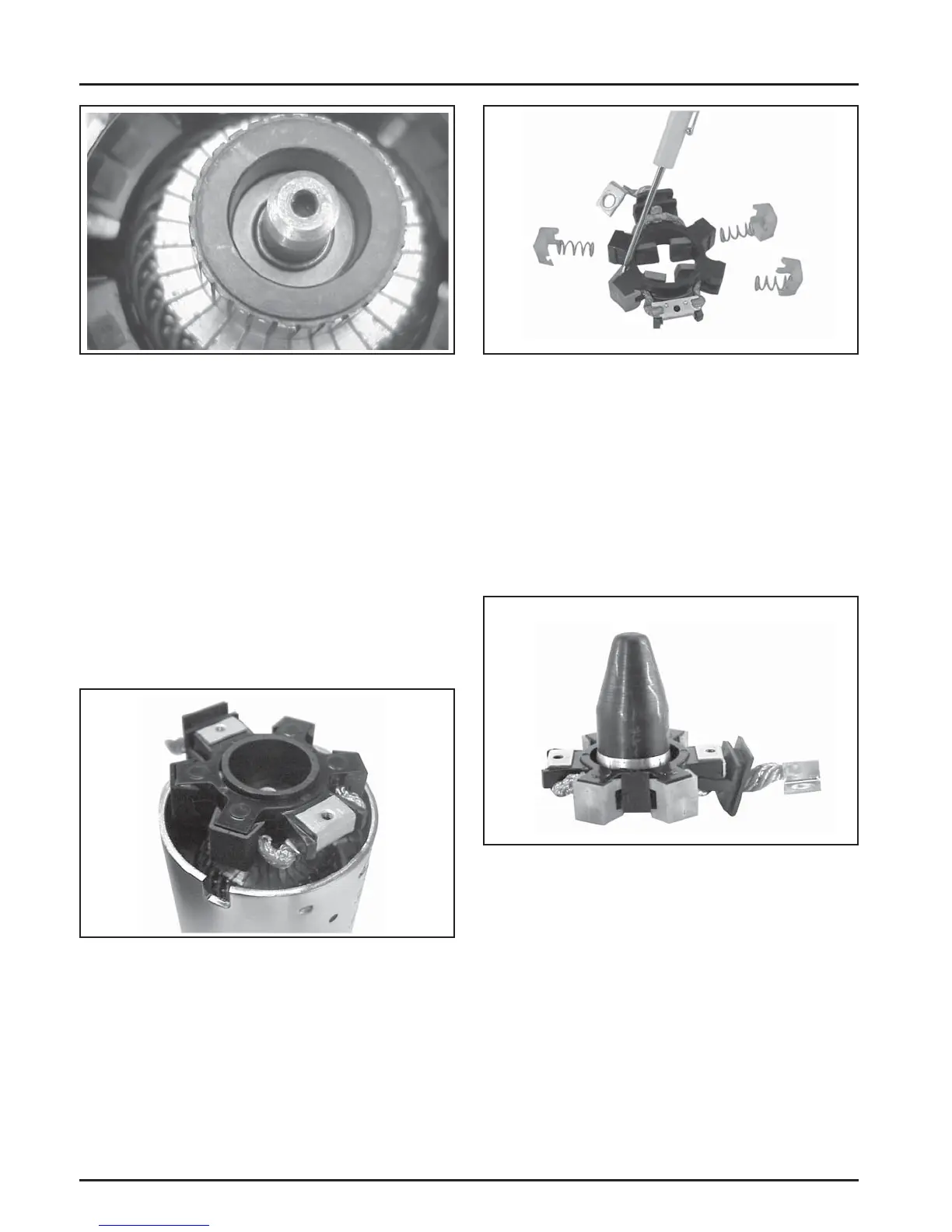

Figure 7-29. Installing Thrust Washer.
10. Starter reassembly when replacing the Brushes/
Brush Holder Assembly:
a. Hold the starter assembly vertically on the
end housing, and carefully position the
assembled brush holder assembly, with the
supplied protective tube, against the end of
the commutator/armature. The mounting
screw holes in the metal clips must be up/out.
Slide the brush holder assembly down into
place around the commutator, and install the
positive (+) brush lead grommet in the cutout
of the frame. See Figure 7-30. The protective
tube may be saved and used for future
servicing.
Figure 7-31. Removing Retaining Clips.
b. Position each of the brushes back in their slots
so they are fl ush with the I.D. of the brush
holder assembly. Insert the Brush Installation
Tool with extension, or use the tube described
above from a prior brush installation, through
the brush holder assembly, so the holes in the
metal mounting clips are up/out.
c. Install the brush springs and snap on the four
retainer caps. See Figure 7-32.
Figure 7-30. Installing Brush Holder Assembly with
Supplied Tube.
Starter reassembly when not replacing the Brushes/
Brush Holder Assembly:
a. Carefully unhook the retaining caps from over
each of the brush assemblies. Do not lose the
springs. See Figure 7-31.
Figure 7-32. Brush Installation Tool with
Extension.
d. Hold the starter assembly vertically on the
end housing, and carefully place the tool
(with extension) and assembled original brush
holder assembly onto the end of the armature
sha . Slide the brush holder assembly down
into place around the commutator, install the
positive (+) brush lead grommet in the cutout
of the frame. See Figure 7-33.
