7
7.13
Section 7
Electrical System and Components

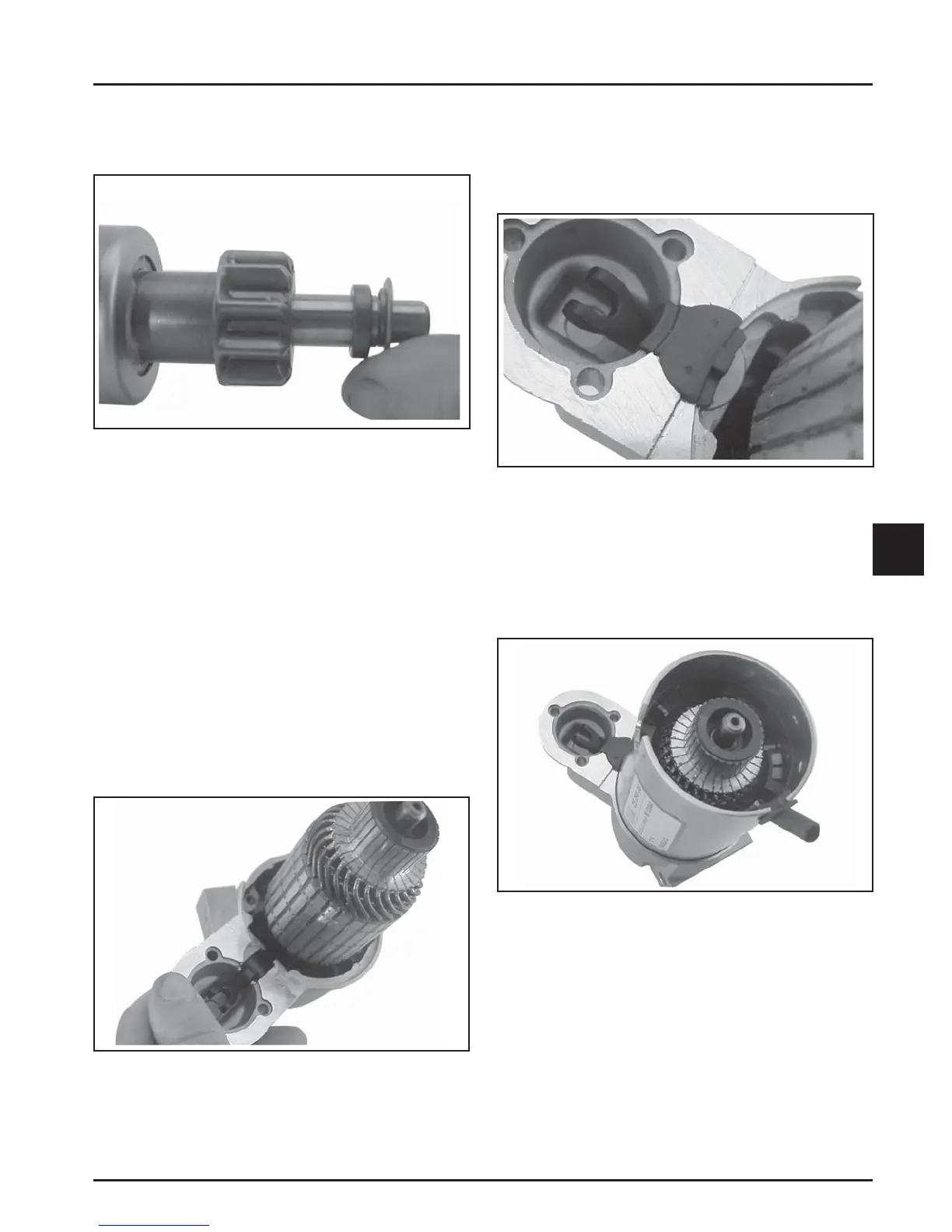

Figure 7-25. Installing Thrust Washer.
4. Apply a small amount of oil to the bearing in the
drive end cap, and install the armature with the
drive pinion.
5. Lubricate the fork end and center pivot of the
drive lever with drive lubricant (see Section 2).
Position the fork end into the space between the
captured washer and the rear of the pinion.
6. Slide the armature into the drive end cap, and
at the same time seat the drive lever into the
housing.
NOTE: Correctly installed, the center pivot section
of the drive lever will be fl ush or below the
machined surface of the housing which
receives the backup washer. See Figure 7-26.
Figure 7-26. Installing Armature and Pivot Lever.
Figure 7-27. Installing Backing Plate and Grommet.
8. Install the frame, with the small notch forward,
onto the armature and drive end cap. Align the
notch with the corresponding section in the
rubber grommet. Install the drain tube in the rear
cutout, if it was removed previously. See Figure
7-28.
7. Install the backing plate, followed by the rubber
grommet, into the matching recess of the drive
end cap. The molded recesses in the grommet
should be out, matching and aligned with those
in the end cap. See Figure 7-27.
Figure 7-28. Installing Frame and Drain Tube.
9. Install the fl at thrust washer onto the commutator
end of the armature sha . See Figure 7-29.
3. Install the off set thrust (stop) washer so the
smaller off set of the washer faces the retainer/
collar. See Figure 7-25.
