8.17
Section 8
Disassembly
8

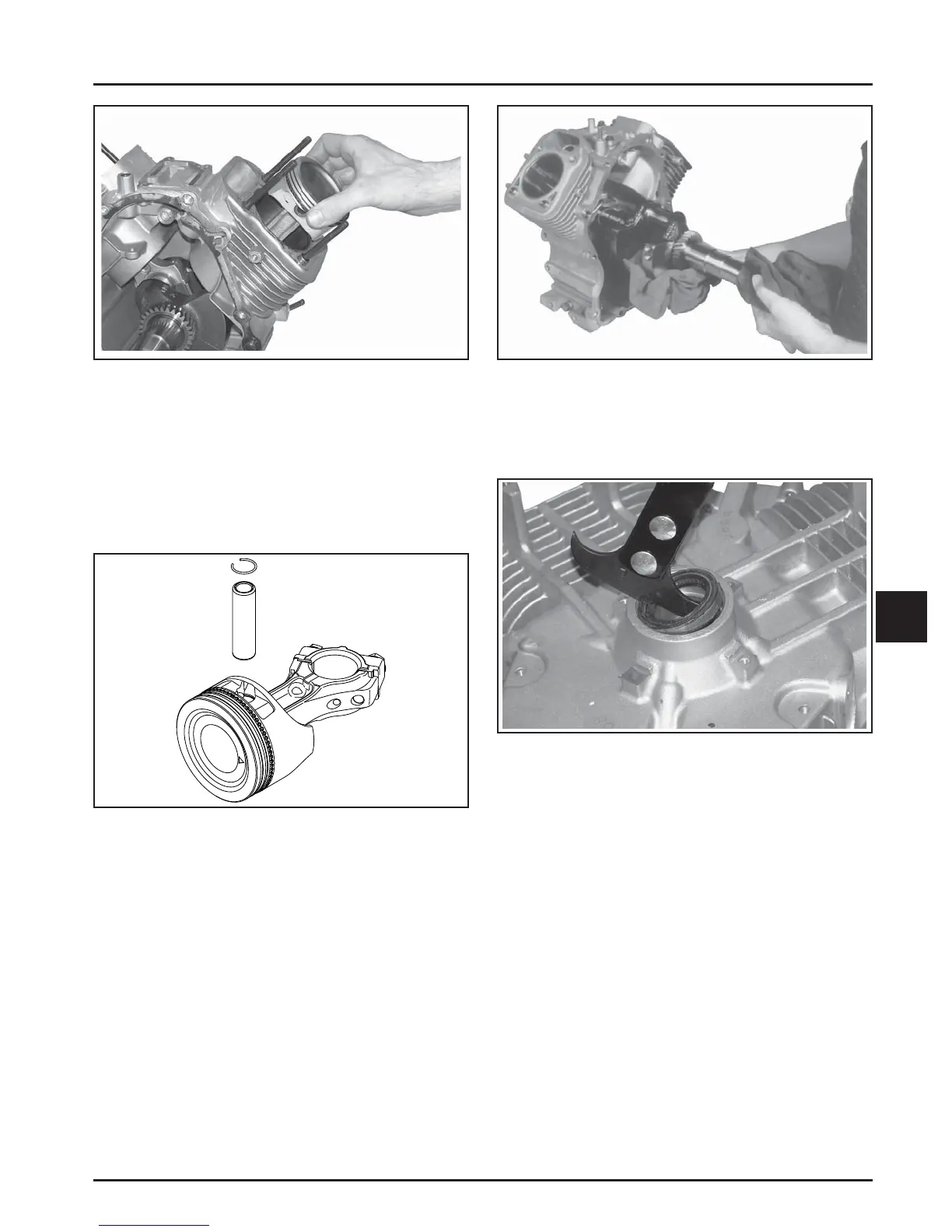

Figure 8-67. Removing Connecting Rod and Piston
Assembly.
3. Repeat the above procedure for the other
connecting rod and piston assembly.
4. Remove piston pin from piston for inspection.
Use a small screwdriver to pry the pin retainer
out of the groove. See Figure 8-68.
Figure 8-68. Remove Piston Pin.
Remove Crankshaft
1. Carefully pull the cranksha from the crankcase.
See Figure 8-69.
Figure 8-69. Removing Crankshaft.
Remove Flywheel End Oil Seal
1. Remove the oil seal from the crankcase. See
Figure 8-70.
Figure 8-70. Removing Oil Seal.
To Next Page
