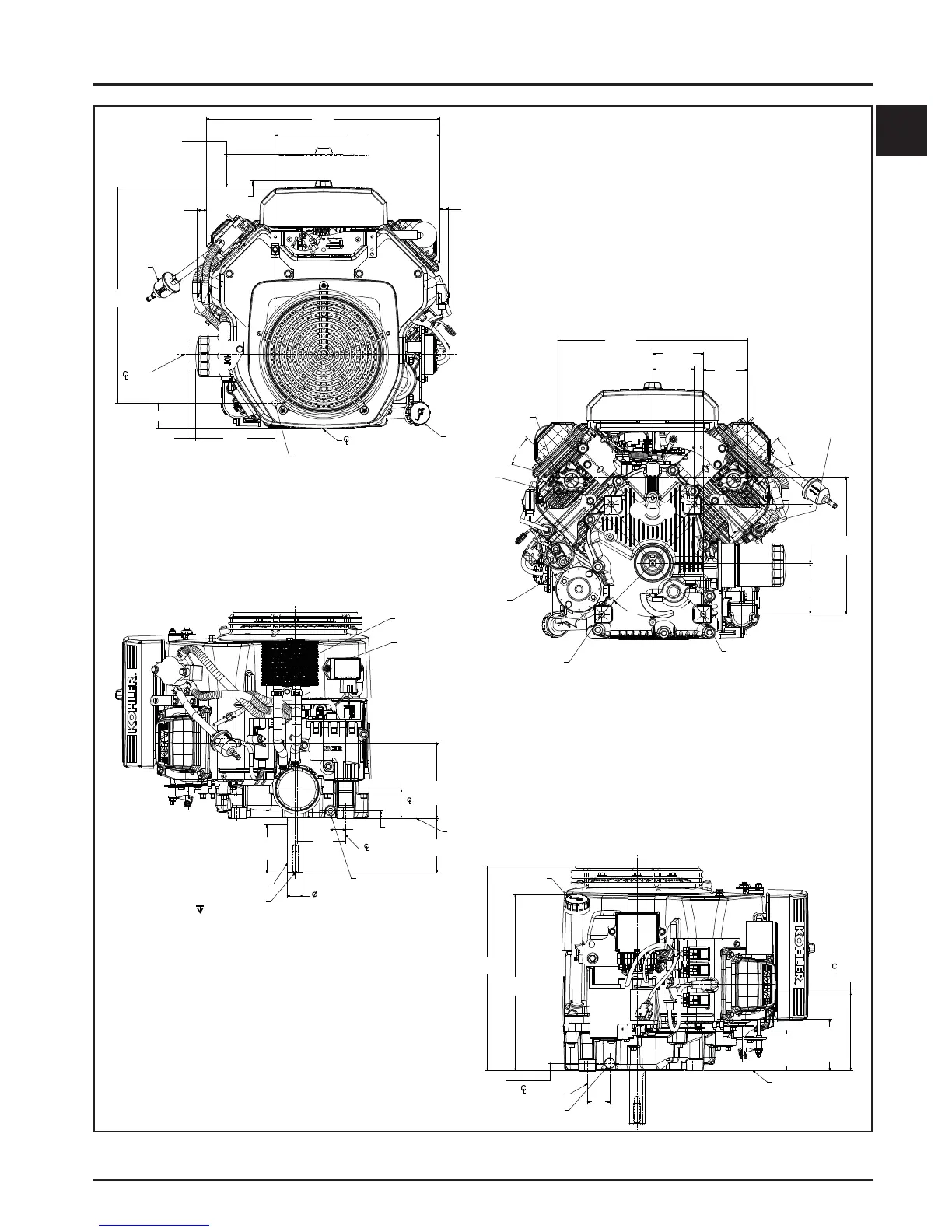

Figure 1-5. Typical Engine Dimensions - ECV749 with Low-Profi le Air Cleaner.
Dimensions in millimeters.
Inch equivalents shown in [ ].
MOUNTING
HOLE “A”
ENGINE
OIL FILL &
DIPSTICK
FLYWHEEL
SIDE
CRANKSHAFT
FUEL
FILTER
17.01
[.670]
SPARK
PLUG
45.57
[1.794]
15.70
[.618]
OIL FILTER
REMOVAL
145.58
[5.731]
60.00
[2.362]
AIR CLEANER
COVER REMOVAL
427.72
[16.839]
302.03
[11.891]
16.31
[.642]
SPARK
PLUG
12.15
[.478]
397.06
[15.632]
4X Ø 9.20 [.362]THRU
Ø 254.00 [10.000] B.C.
SOLENOID
SHIFT
STARTER
50.00
[1.969]
EXHAUST
PORT #1
M8 X 1.25
4STUDS
30º
334.62
[13.174]
2X 89.41
[3.520]
ENGINE MOUNTING SURFACE
(PTO SIDE)
OIL FILTER
SIDE
STARTER
SIDE
2X 72.85
[2.868]
77.90
[3.067]
30º
45º
45º
104.02
[4.095]
241.87
[9.523]
89.41
[3.520]
MOUNTING HOLE “A”
50.00
[1.969]
EXHAUST
PORT#2
35º 35º
ENGINE
MOUNTING
SURFACE
154.94
[6.100]
SPARK
PLUG
92.94
[3.659]
EXHAUST
PORT #1
72.69
[2.862]
EXHAUST
PORT #2
1/4 IN. SQ.
KEYWAY
85.50
[3.366]
KEYWAY
85.91
[3.382]
OIL FILTER
OIL DRAIN PLUG
3/8 NPT [INCH]
MOUNTING
HOLE “A”
26.41
[1.040]
13.95
[.549]
ENGINE MOUNTING SURFACE
96.70
[3.807]
52.26
[2.057]
OIL FILTER
134.94
[5.312]
SPARK PLUG
OIL
COOLER
REGULATOR
RECTIFIER
40.41
[1.591]
OIL DRAIN PLUG
3/8N.P.T[INCH]
MOUNTING
HOLE “A”
13.49
[.531]
317.23
[12.489]
367.37
[14.463]
OILFILL&
DIPSTICK
28.56
[1.125]
7/1
6-20 UNF 2B [INCH]
38.1 [1.500]
