9.13
Section 9
Inspection and Reconditioning
9

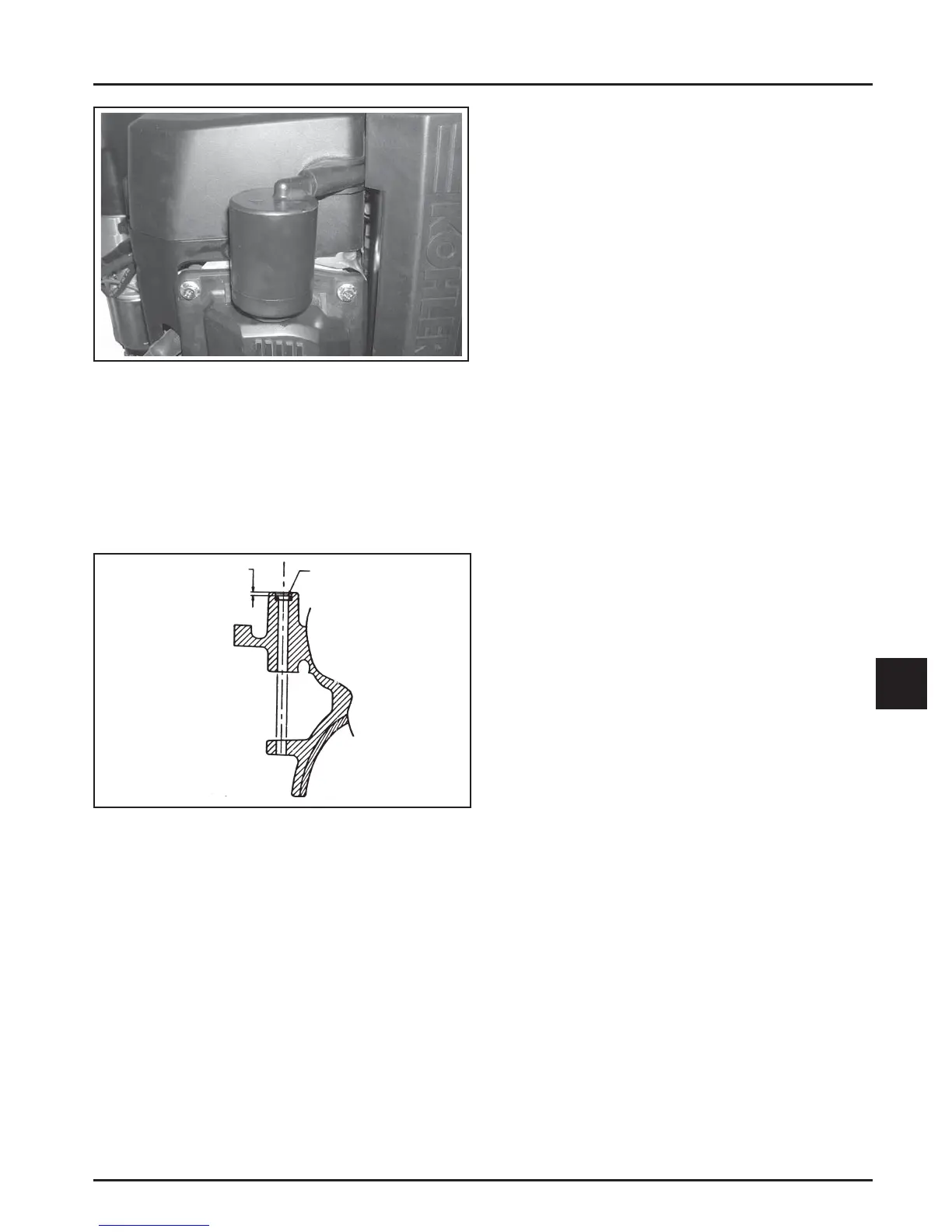

Figure 9-19. Installing Cross Shaft Oil Seal.
Figure 9-18. Oil Separator.
Governor Cross Shaft Oil Seal
If the governor cross sha seal is damaged and/or
leaks, replace it using the following procedure.
Remove the oil seal from the crankcase and replace
it with a new one. Install the new seal to the depth
shown in Figure 9-19 using a seal installer.
2.0 mm (0.0787 in.)
Governor Cross
Shaft Seal
