7.10
Section 7
Electrical System and Components

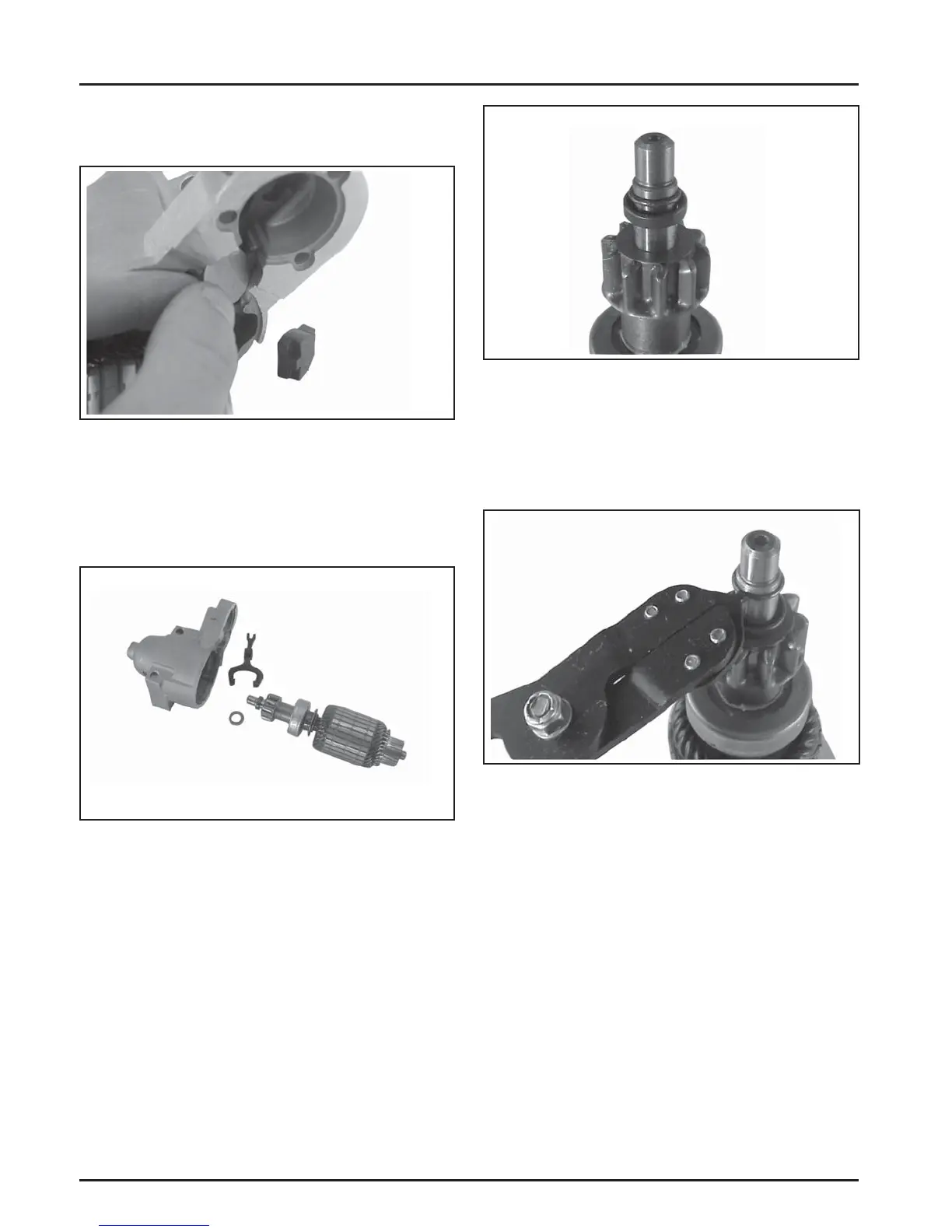

Figure 7-17. Retaining Ring Detail.
10. Remove the retainer from the armature sha .
Save the stop collar.
NOTE: Do not reuse the old retainer.
Figure 7-16. Armature and Lever Removed.
9. Push the stop collar down to expose the retaining
ring. See Figure 7-17.
6. Remove the rubber grommet and backing plate
from the end cap. See Figure 7-15.
Figure 7-15. Rubber Grommet and Bushing Plate.
7. Take out the drive lever and pull the armature
out of the drive end cap. See Figure 7-16.
8. Remove the thrust washer from the armature
sha . See Figure 7-16.
Figure 7-18. Removing Retaining Ring.
11. Remove the drive pinion assembly from the
armature.
12. Clean the parts as required.
NOTE: Do not soak the armature or use solvent
when cleaning. Wipe clean using a so cloth,
or use compressed air.
