Disassembly/Inspection and Service
KohlerEngines.com 16 690 01 Rev. --
3. Once valve spring is compressed, remove following
items.
● Valve spring keepers.
● Valve spring caps.
● Valve springs.
● Intake and exhaust valves (mark position).
● Valve stem seal.
● Washer (intake valve only).
4. Repeat above procedure for other cylinder head. Do
not interchange parts from 1 cylinder head to
another.
Inspection and Service

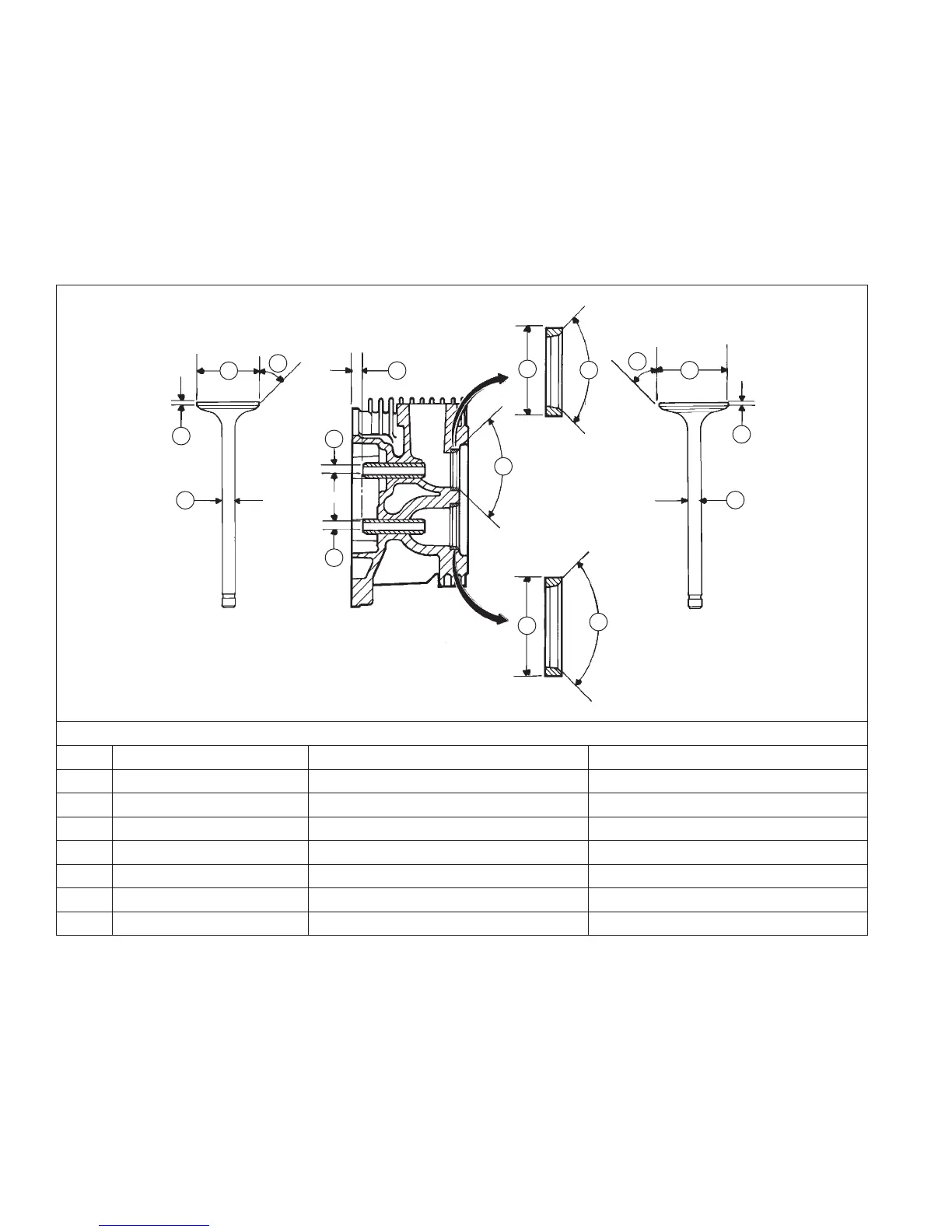

Valve Details
H
E
F
A
C
D
F
E
G
A
H
D
A
B
B
G
Intake Valve
Exhaust Valve
Intake Insert
Exhaust Insert
Dimension Intake Exhaust
A Seat Angle 89° 89°
B Insert O.D. 36.987/37.013 mm (1.4562/1.4572 in.) 32.987/33.013 mm (1.2987/1.2997 in.)
C Guide Depth 4 mm (0.1575 in.) 6.5 mm (0.2559 in.)
D Guide I.D. 7.040/7.060 mm (0.2772/0.2780 in.) 7.040/7.060 mm (0.2772/0.2780 in.)
E Valve Head Diameter 33.37/33.63 mm (1.3138/1.3240 in.) 29.37/29.63 mm (1.1563/1.1665 in.)
F Valve Face Angle 45° 45°
G Valve Margin (Min.) 1.5 mm (0.0591 in.) 1.5 mm (0.0591 in.)
H Valve Stem Diameter 6.982/7.000 mm (0.2749/0.2756 in.) 6.970/6.988 mm (0.2744/0.2751 in.)
After cleaning, check fl atness of cylinder head and
corresponding top surface of crankcase, using a surface
plate or piece of glass and feeler gauge. Maximum
allowable out of fl atness is 0.076 mm (0.003 in.).
Carefully inspect valve mechanism parts. Inspect valve
springs and related hardware for excessive wear or
distortion. Check valves and valve seat area or inserts
for evidence of deep pitting, cracks, or distortion.
Check clearance of valve stems in guides. See valve
details and specifi cations.
Hard starting, or loss of power accompanied by high
fuel consumption may be symptoms of faulty valves.
Although these symptoms could also be attributed to
worn rings, remove and check valves fi rst. After removal,
clean valve heads, faces, and stems with a power wire
brush. Then, carefully inspect each valve for defects
such as warped head, excessive corrosion, or worn stem
end. Replace valves found to be in bad condition.
