Kohler Decision-Makerr 3+ User Manual

16 TT-1625 7/17
GM85125-A
Note: Dimensions shown are in mm.
25.4 mm is equal to 1 inch.

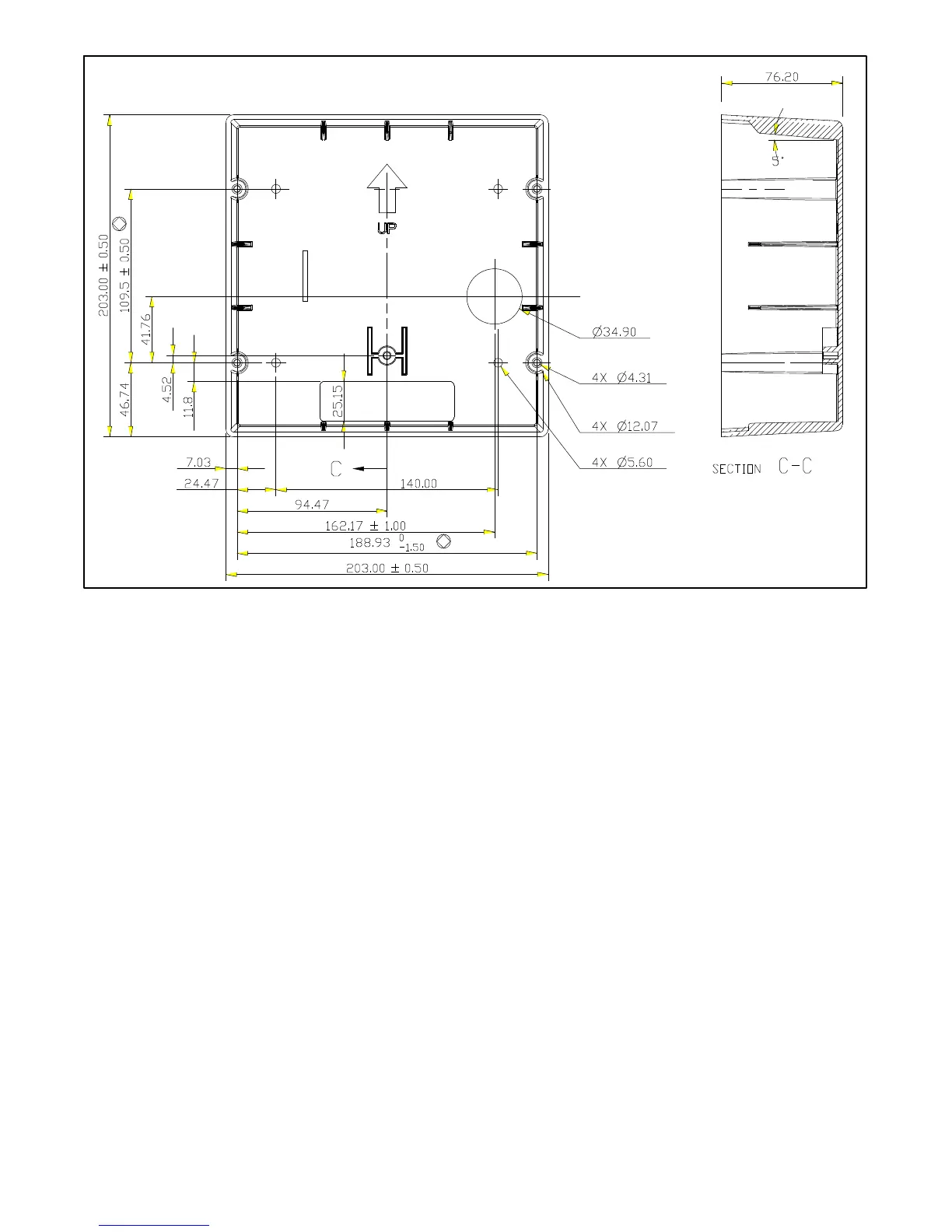

Figure 17 RSA III Mounting Hole Dimensions in Supplied Box GM85123
5.2 Remove four screws X-67-154 from the RSA III
bezel GM85134 and remove bezel from the
RSA III box GM85123. See Figure 17 for RSA III
supplied box mounting hole information.
The installation instructions describe three RSA III
mounting scenarios:
D Surface mount with supplied box (step 5.3).
D Flush mount with supplied box (step 5.4).
D Flush mount using a user-supplied Hoffman box
(step 5.5).
5.3 Surface mount RSA III initial installation.
5.3.1 Prepare the mounting site by drilling pilot
holes for anchors, if used.
Note: Mount the RSA III box to a standard 10 cm
(4 in.) square electrical box installed in the
wall.
5.3.2 C reate an opening in the wall for the
electrical wiring from the master RSA III to
the controller communications and power
supply. The wall opening must allow for
the wiring of the RSA III slave, if used.
Protect the RSA III front panel assembly
from dust and debris when drilling the
holes.
5.3.3 Drill an appropriate size hole in box
GM85125 if a user-supplied conduit
connector is required. Install the user-
supplied connector.
5.3.4 Temporarily mount the RSA III box to the
wall or to the electrical box in the wall and
check for proper hole alignment. Adjust as
needed. Remove RSA III box.
Note: Use mounting hardware suitable for the
wall composition and thickness.
5.3.5 R epeat step 3 for RSA III slaves, as
needed.
5.3.6 Proc eed to step 6, Wire the RSA III.
5.4 Flush mount RSA III initial installation with
box GM85125 (Part of RSA III kit).
5.4.1 Prepare mounting site by creating an
opening in wall for flush-mounting RSA III
box.
