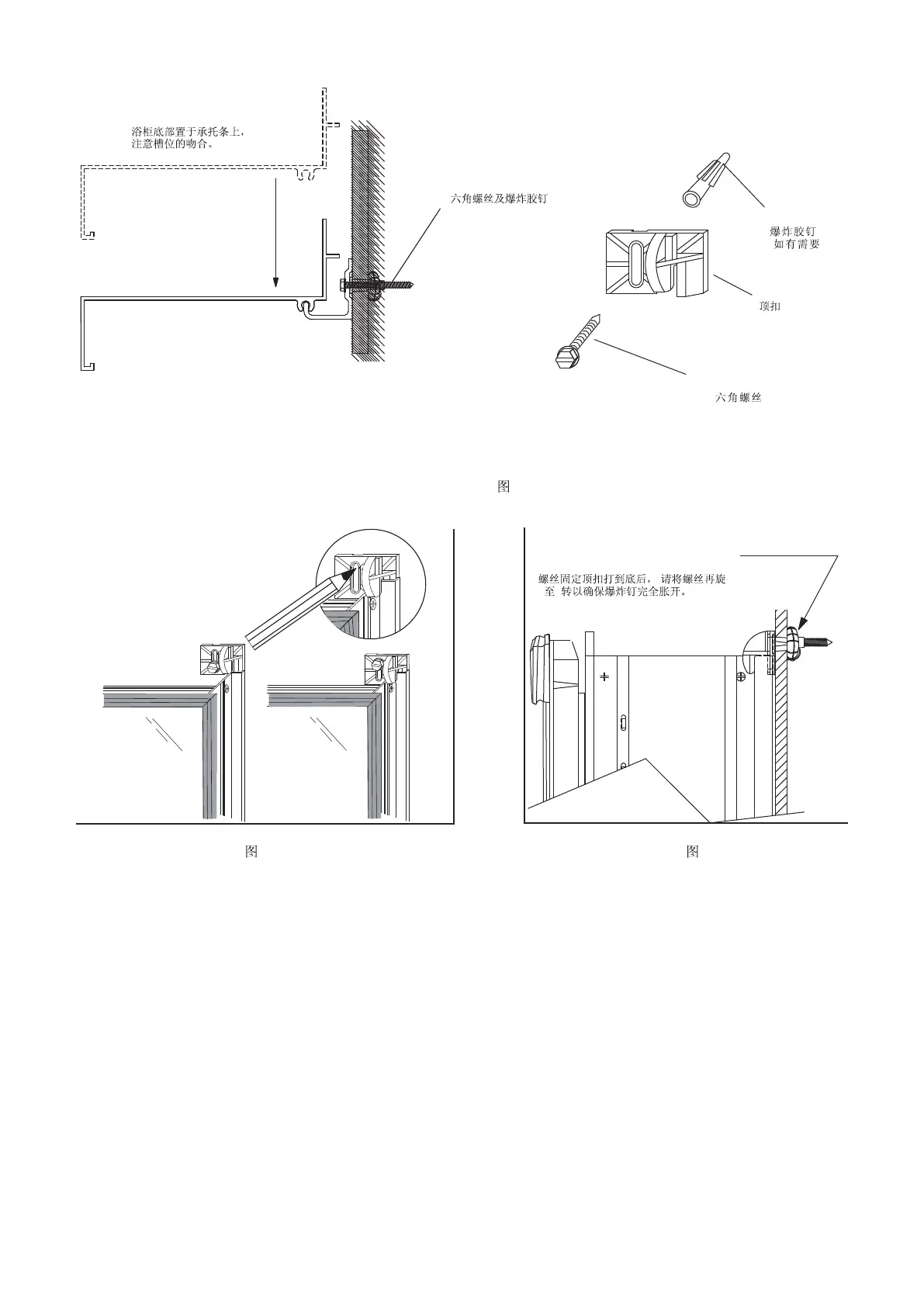

Cabinet bottom sits in lip on bottom
mounting bar
#8x2"Hex
Head screw &
Wall anchor
(use driver)
#8
x1/4"
Top mount clip
Wall anchor
(if required)
()
#8x2 Hex head screw
(Use 1/4 driver)
#8 .
"
"
Fig. 6 6
7B
7C
Once Screw is bottomed out on
mount clip, turn screw and additional
5 to 7 turns to fully expand the anchor.
57
Side view at top of cabinet
Fig. 7 7
-6-
7A
Fig. 8 8
1056564-T01-A
