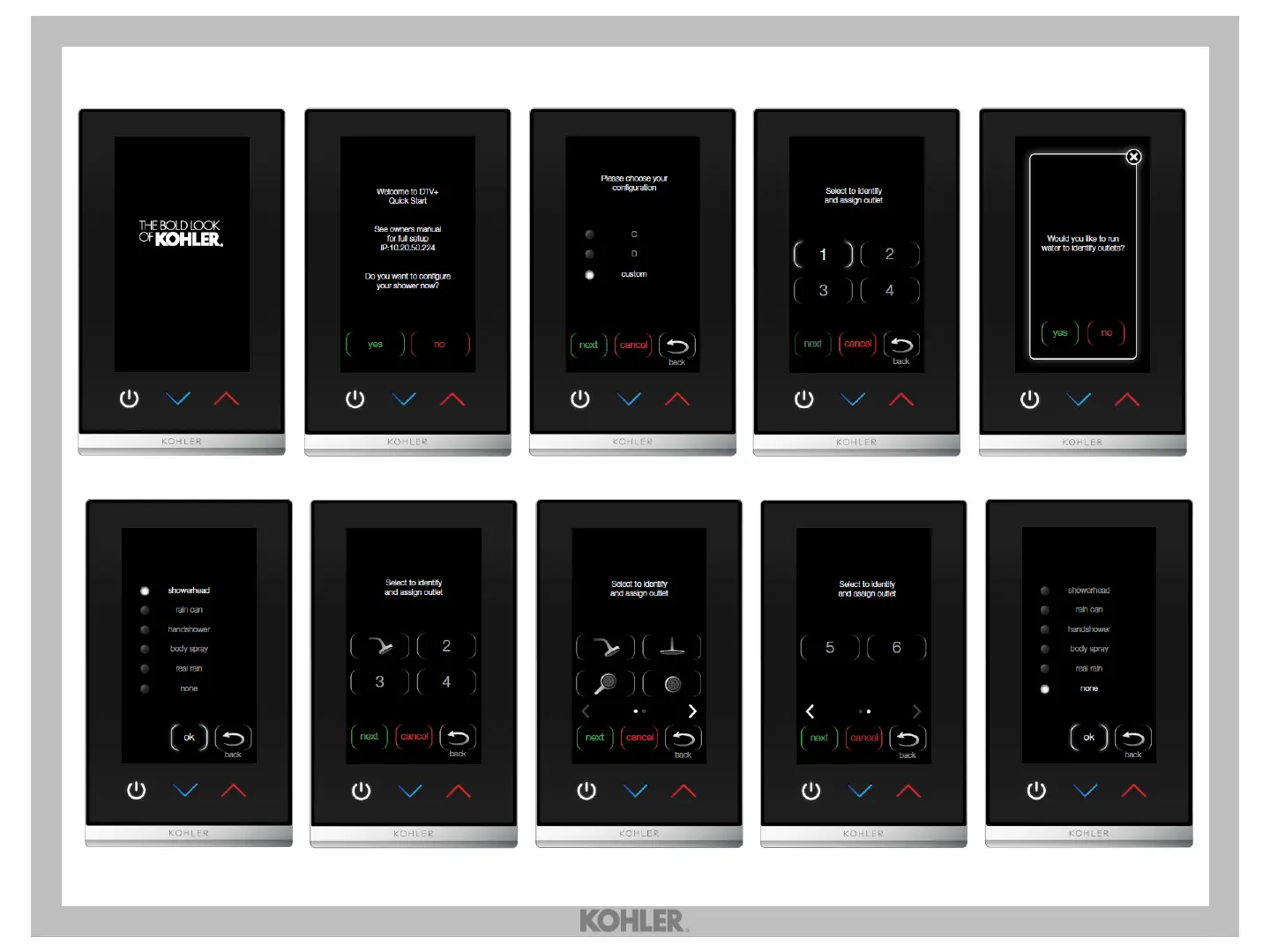

Example: Custom Configuration With Six Port Valve
DTV+ Quick Start
Press Power icon Select Yes to start Quick Start Configuration options for connected
valve/s. Select Custom. Select Next
Select valve outlet 1. Select next. Option to run water for 5 seconds to
identify outlet. Select Yes or No.
Select appropriate description for
outlet. Select Ok
Outlet populated with icon. Repeat for
outlets 2 – 4.
If more than four outlets, press arrow
to move to second page.
Complete selection sequence for
remaining outlets.
For any unused valve outlets, select
none
Page 1 of 2
To Next Page
