TP-5700 7/932 Section 1 General
TP-5700-1
1. Exhaust thimble (for wall or ceiling)
2. Silencer
3. Supports
4. Flexible sections
5. Duct work for cooling air outlet
6. Mounting base
7. Controller
8. Electrical conduit
9. Watertrapwithdrain
10. Fresh air intake
1
2
3
4
5
6
7
8
9
10

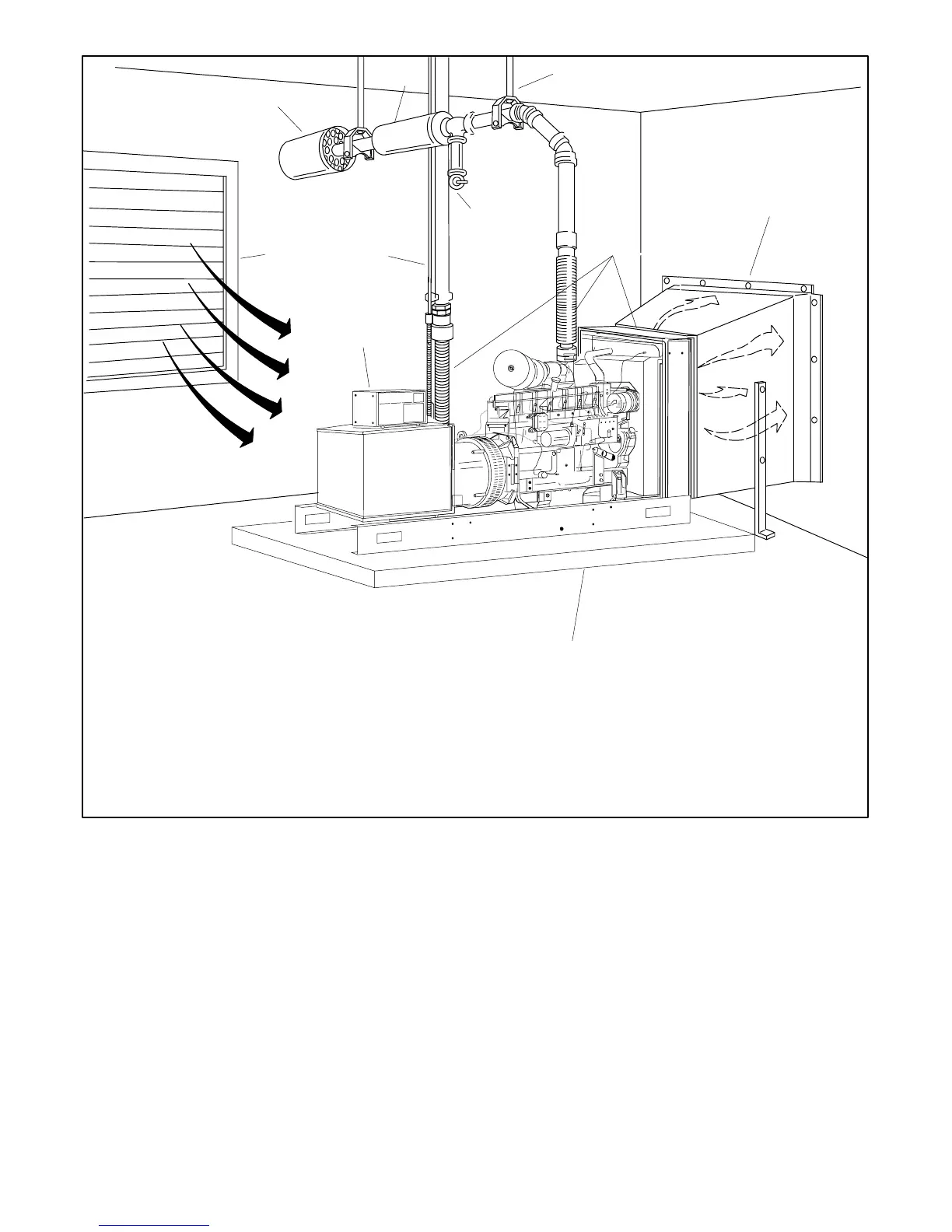

Figure 1-1 Typical Stationary-Duty Generator Set Installation
