TP-5700 7/93 39Section 7 Electrical Requirements
7.9 Remote Emergency Stop
Switch
The emergency stop switch allows immediate shutdown
of the generator from a remote location. If the
emergency stop switch is activated, the emergency stop
lamp on the generator controller lights and the unit shuts
down immediately. The generator cannot be restarted
until the emergency stop switch is reset. See
Figure 7-8.
GENERATOR
EMERGENCY
STOP
PULL TO
BREAK
GLASS

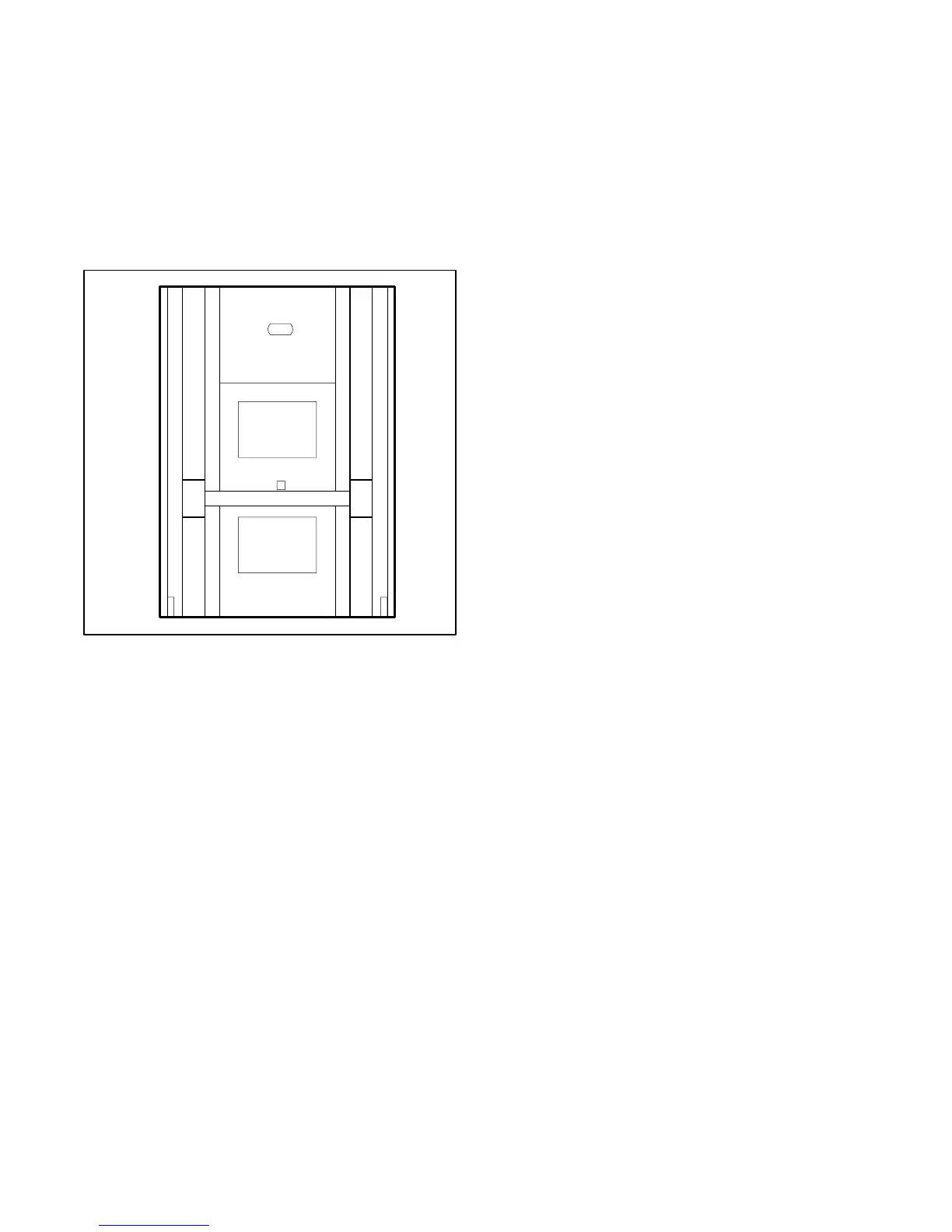

Figure 7-8 Remote Emergency Stop Switch
7.10 Dry Contact Kit
The dry contact kit allows monitoring of the standby
system and/or the ability to activate accessories from a
remote location. Customer- provided warning devices
(lamps, horns, etc.) can be connected to any of the
generator controller’s alarm/indication outputs, allowing
the user to “customize” an alarm system to their needs.
7.11 Wiring
Connections between the components of a standby
generator system differ based on the type of equipment
used, options, and installation. Figure 8-6 on the
following page gives examples of the possible options
and wire connections necessary to make a standby
system operational. You should always refer to the
wiring diagram for details regarding wire sizing, location,
and number.
