1004636-2-A
4
Kohler Co.
Valve
Body
Hose
Nut
Washer
Plumbers
Putty
Shank
Tee
Escutcheon

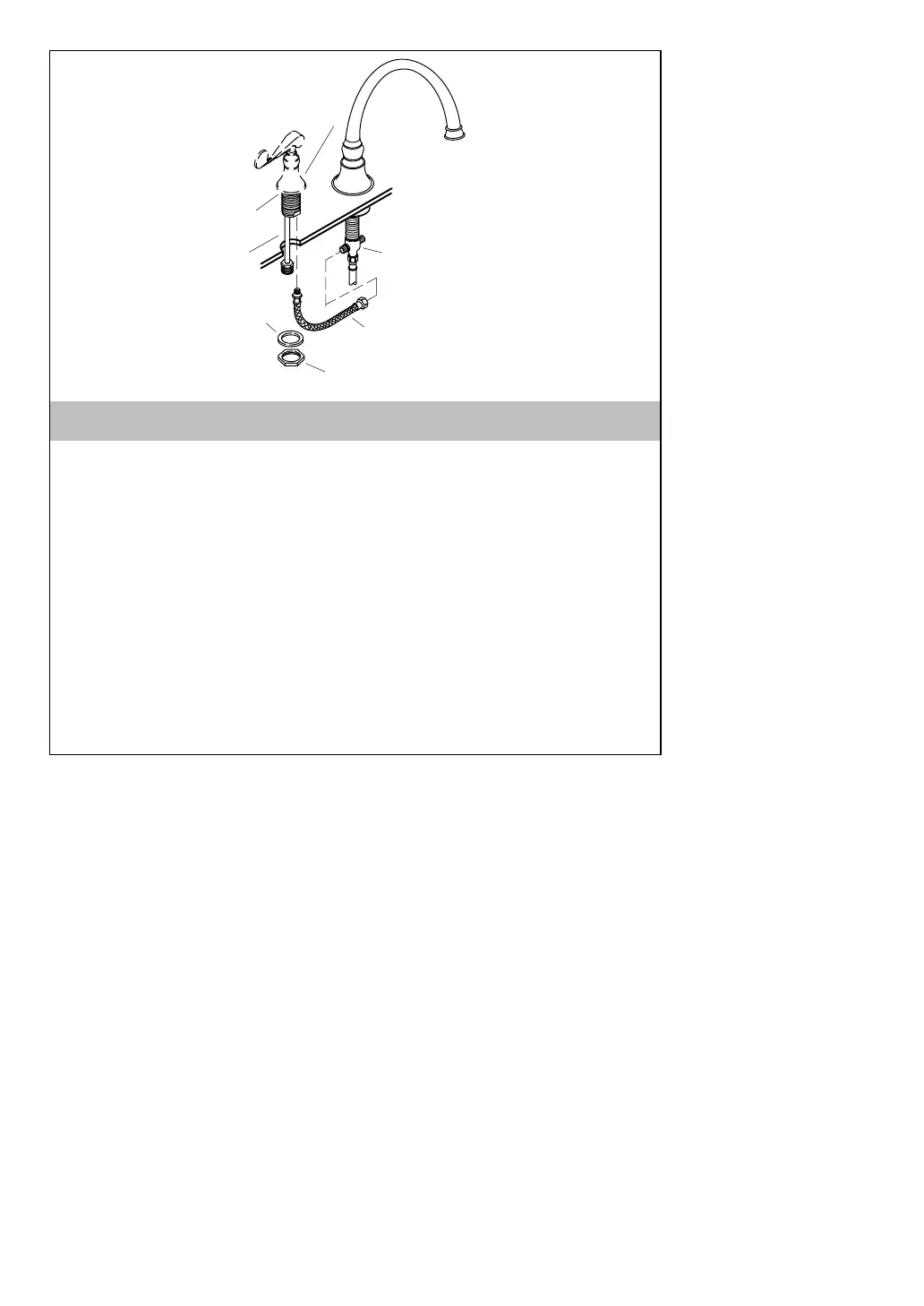

2. Valve Body/Tee Installation
- Apply a bead of plumbers putty or other sealant to the undersides of
the handle escutcheons according to the putty manufacturer’s
instructions.
- Insert the valve bodies into the mounting holes from the top of the
sink. Make sure the hot valve body (marked red) is installed i n the
left-hand hole (as viewed from the front of the sink).
- Install a washer and nut to the bottom of the valve bodies.
- Align the valve bodies so the copper tubing faces to the outside.
- Wrench tighten the nuts.
- Remove any excess plumbers putty.
- Connect the hoses to the shank tee, and tighten.
