1004636-2-A
3
Kohler Co.
Sink
Handspray
Spray
Holder
Nut
Nut
Handspray
Hose
Washer
Spout
Shank
Putty
Gasket
Plumbers
Putty
Shank
Tee

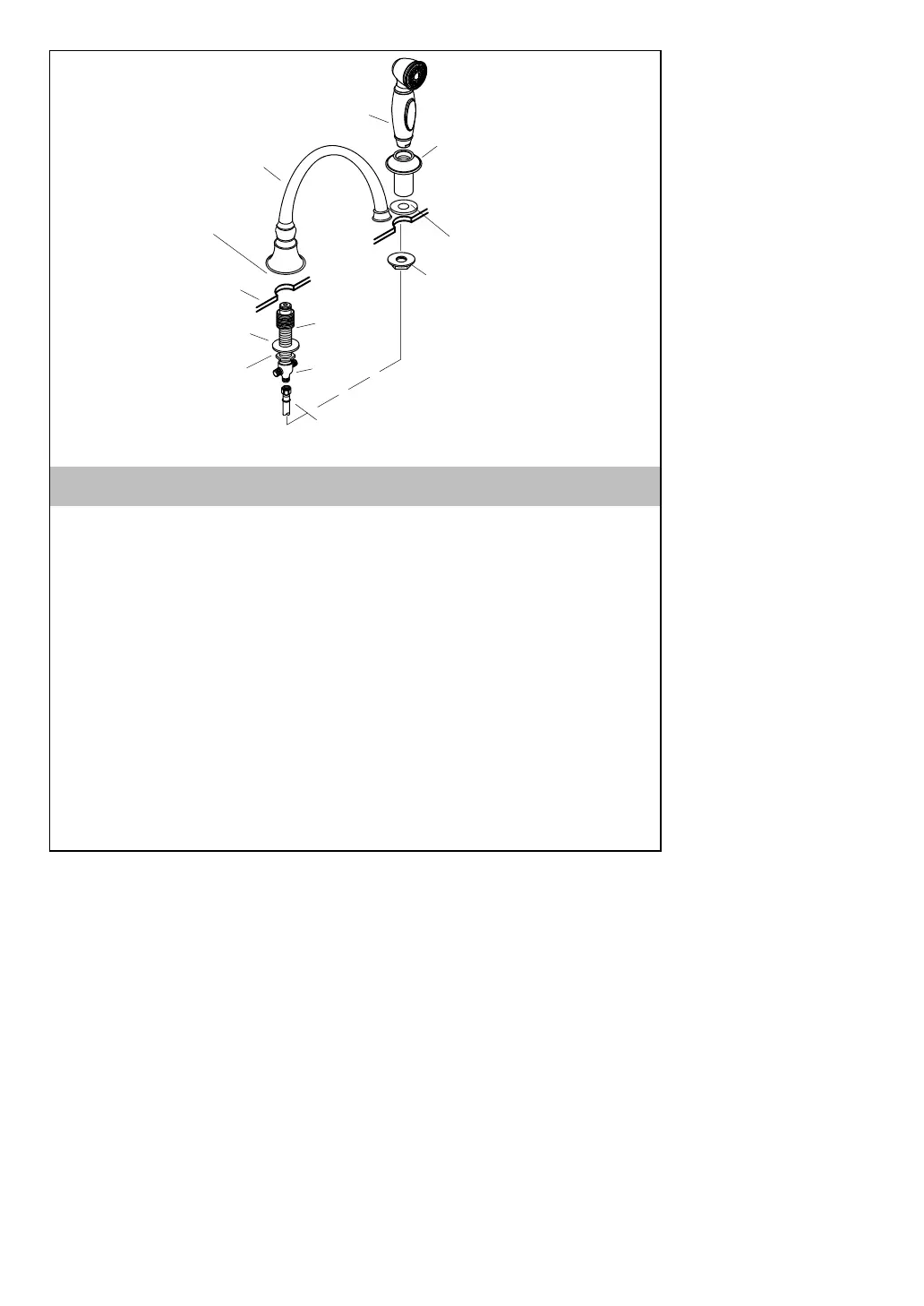

1. Spout/Handspray Installation
- Apply a bead of plumbers putty or other sealant to the underside of
the spout base according to the putty manufacturer’s instructions.
- Thread the nut and washer to the bottom of the shank.
- Insert the shank from the bottom of the sink, and thread the spout
onto the shank. Back the spout off 1/8 turn after the spout bottoms
out.
- Tighten the nut and washer to secure the shank to the sink.
- Slide the provided gasket onto the spray holder.
- Slide the spray holder through the mounting hole from above.
- From under the sink, securely hand tighten the nut.
- Insert the handspray hose through the spray holder, and attach the
hose to the shank tee, using thread sealant.
