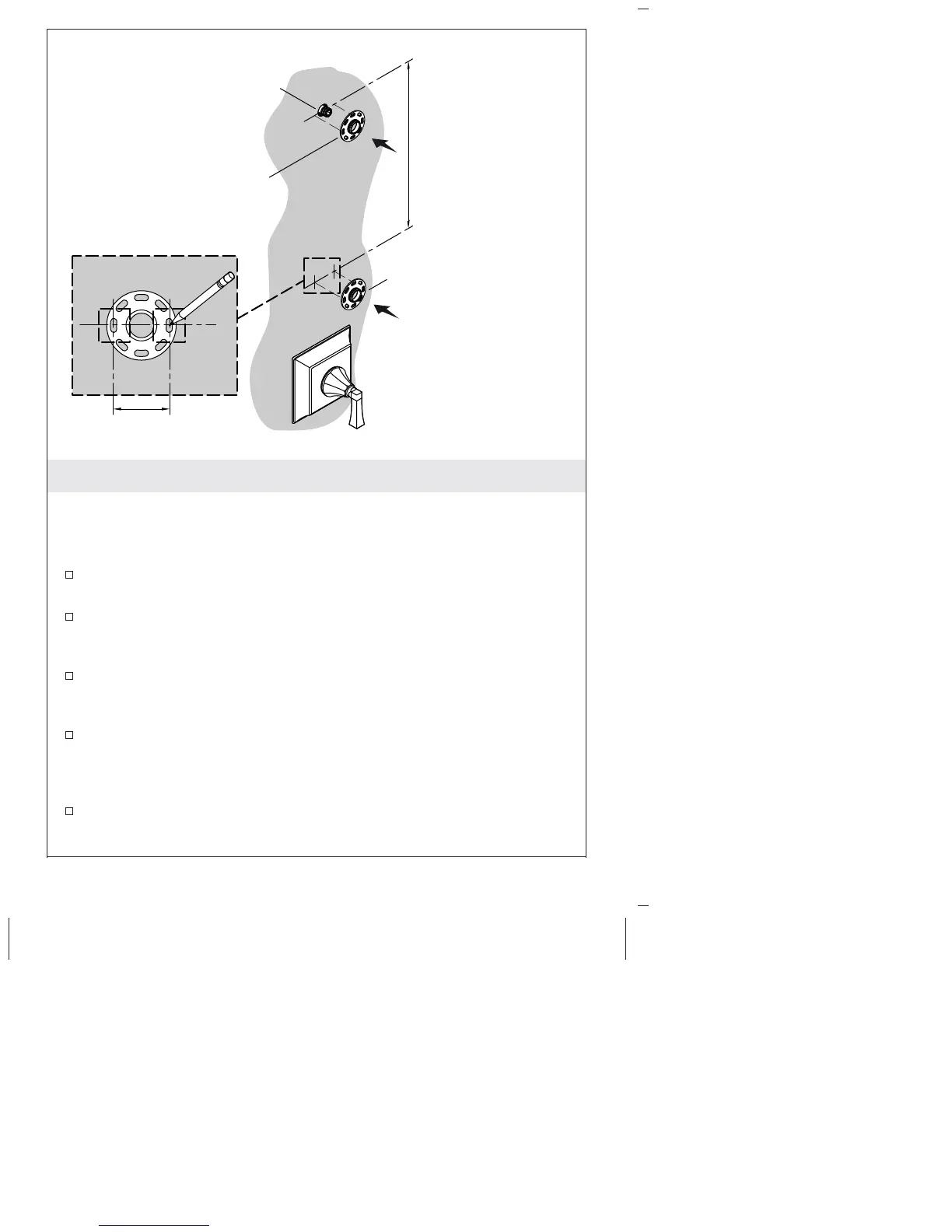

3. Mark the Mounting Hole Locations
NOTE: The upper mounting collar must be centered on the supply
adapter. The distance between the upper and lower mounting collar
centers should be 18″ (457 mm) or 27″ (686 mm) depending on the
length of your shower column.
Center the mounting collar on the supply adapter. Mark the left
and right mounting holes.
For K-45209/K-45210 only: From the center of the supply adapter,
measure down 27″ (686 mm) and mark the horizontal
measurement with a pencil.
For K-45211/K-45212 only: From the center of the supply adapter,
measure down 18″ (457 mm) and mark the horizontal
measurement with a pencil.
Center the mounting collar on the horizontal line. Measure and
mark the left and right mounting holes. Ensure the upper and
lower mounting hole locations are level and plumb to one
another.
Do not drill the mounting holes until instructed to do so.
2" (51 mm)
Supply Adapter
Mounting Collar
Mounting Collar
K-45209, K-45210,
27" (686 mm)
K-45211, K-45212,
18" (457 mm)
1213116-2-A 10 Kohler Co.
