6. Install with Anchors
IMPORTANT! If the supplied toggle anchor fasteners are not used,
refer to ″Before You Begin″ for fastener requirements.
NOTE: Anchor installation requires 1-7/8″ (48 mm) minimum
clearance behind the wall. The finished wall thickness must be a
minimum of 5/8″ (16 mm) and must be adequate in strength.

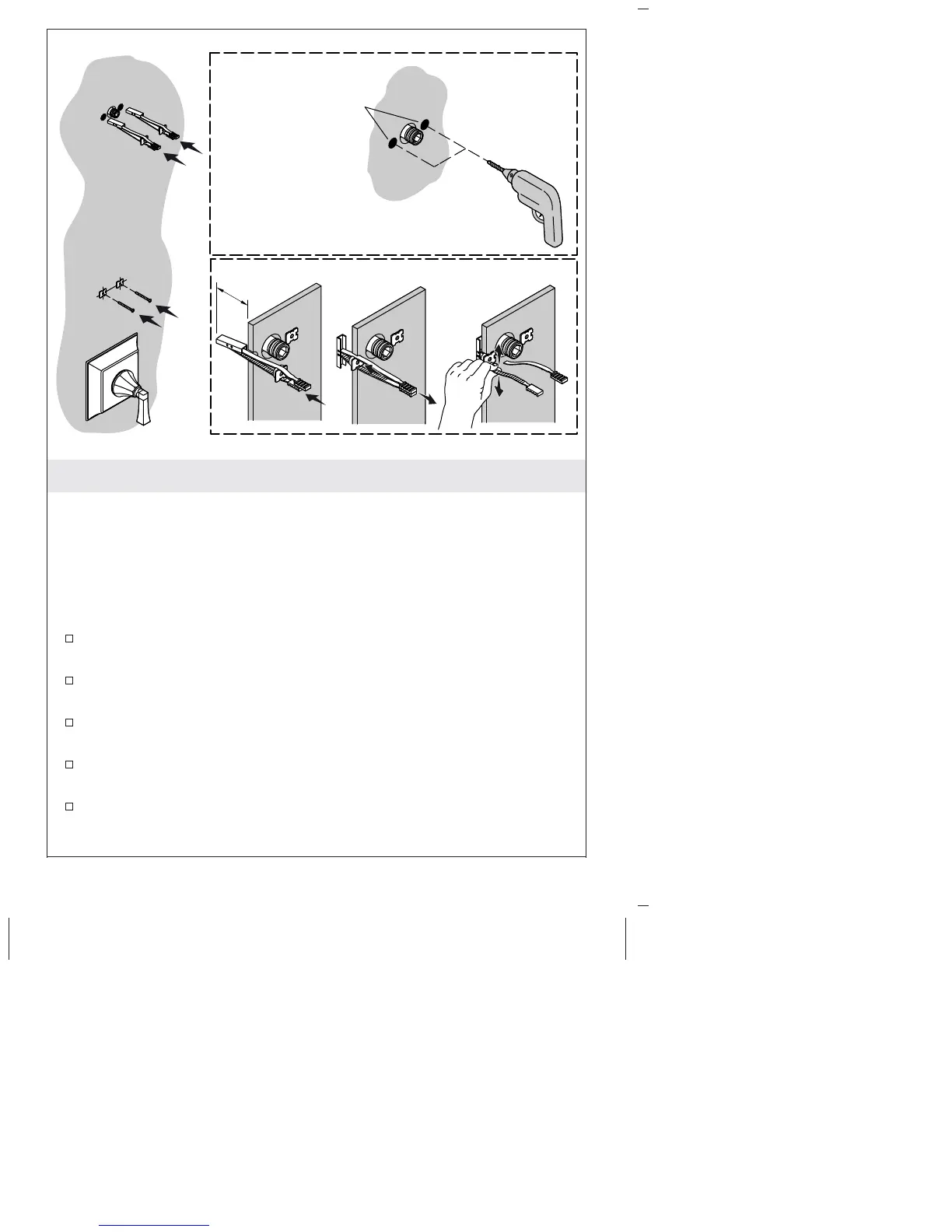

Install the Anchors
Drill two 1/2″ (13 mm) diameter holes for each mounting collar
at the pencil markings on the finished wall.
Hold the metal channel of the anchor flat alongside the plastic
straps and slide the channel through the drilled holes.
Realign the handles of the straps to straighten the channel behind
the wall.
With one hand, pull the finger grips straight out (do not pull at
an angle) so that the metal channel rests flush behind the wall.
Slide the clip along the straps with your other hand until the
flange of the clip is flush with the wall.
Drill 1/2" (13 mm)
holes at each
marked location.
1-7/8"
(48 mm)
Kohler Co. 13 1213116-2-A
