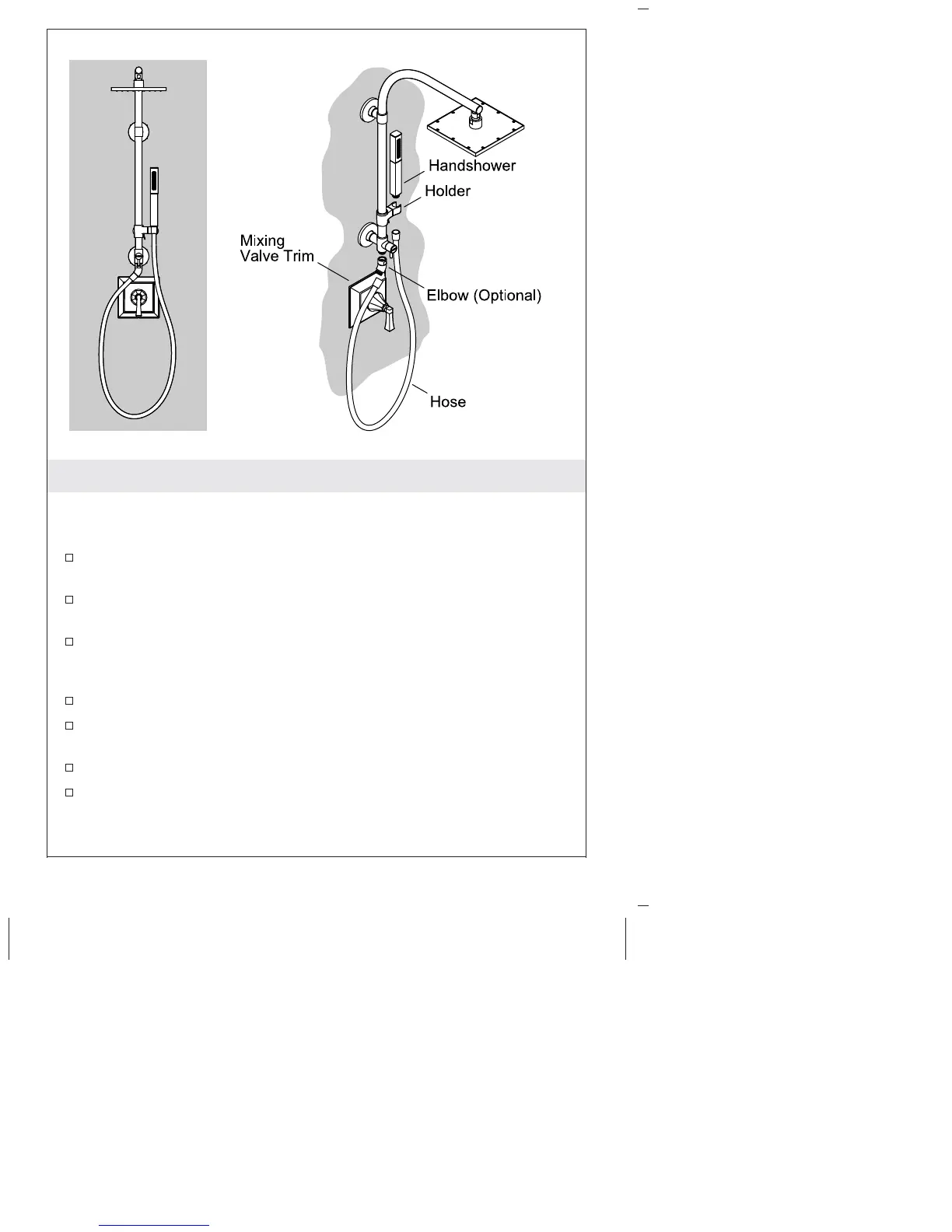

9. Install the Handshower
NOTE: Elbow installation is optional and allows the hose to drape
around the mixing valve trim. The shower hose can also be installed
directly onto the shower column if desired.
With the gasket installed, thread the elbow onto the bottom of the
shower column.
With the gasket installed, thread the check valve end of the
shower hose to the elbow.
Position the handshower holder and the elbow opposite each
other. This allows the hose to drape around the mixing valve
trim.
Thread the hose through the holder.
With the screen washer installed, thread the hose to the
handshower.
Place the handshower into the holder.
Turn on the water.
NOTE: If water does not flow through the handshower or shower
hose, the shower hose was incorrectly installed. To correct, reinstall
