2. Preparation
NOTICE: If the digital valve will be used for a bath/shower application, the bath fill supply line must be
routed from the #1 outlet port.
NOTE: The two valve interfaces are identical. Either can be used for primary and secondary connections.
One is located outside the showering enclosure, while the other is located inside the showering enclosure.
Determine all required components along with their installation locations before beginning this
installation.
When routing piping, keep in mind the numbers marked at each valve outlet must correspond to
the appropriate showering component for the preprogrammed or custom showering experiences to
function properly.

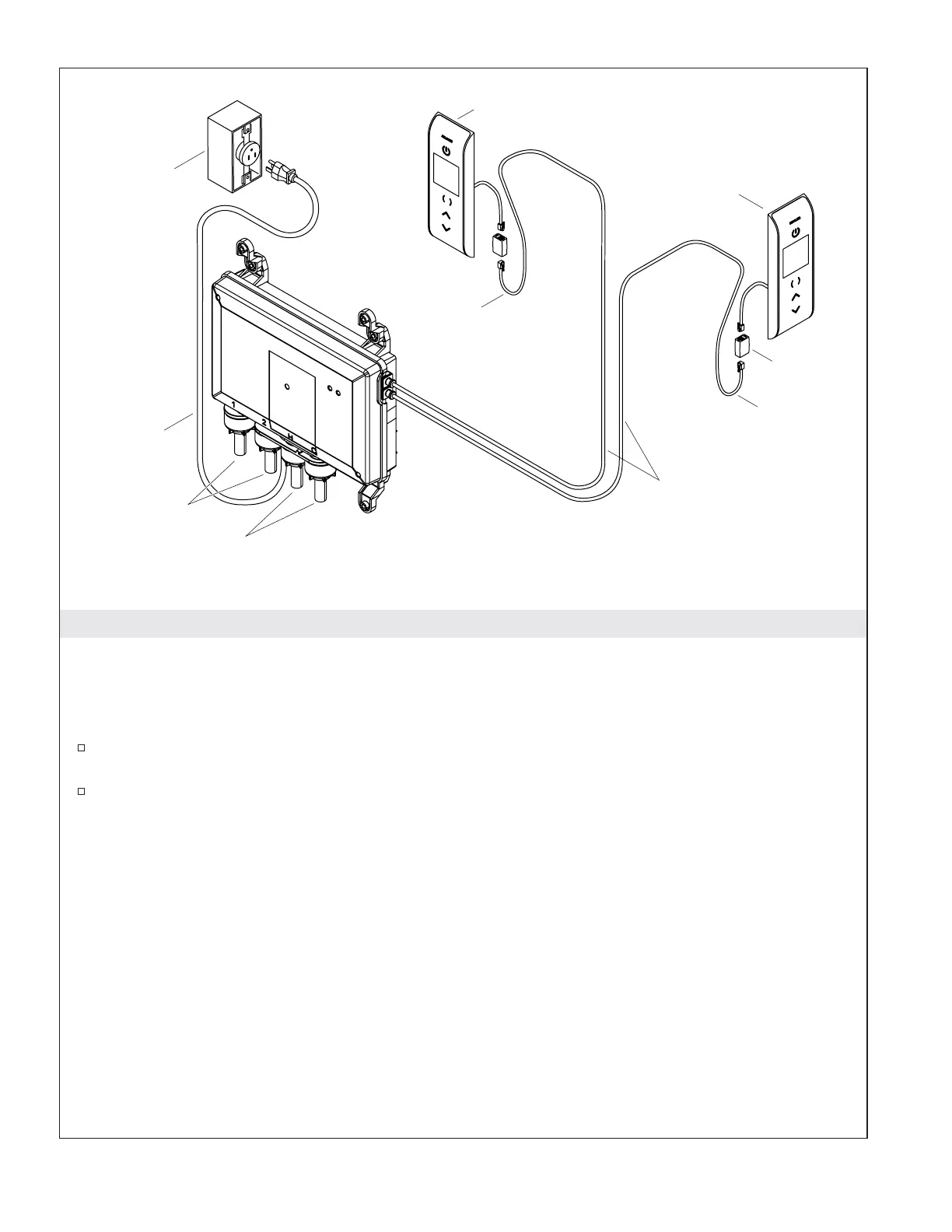

Coupler
Drip Loop
Drip
Loop
Power Cord
Outlet
Interface
Interface
20' (6.1 m) Cables
NOTE: Only one interface, installed inside the shower, is required.
An additional interface can be installed outside the shower.
Outlets
Supply Inlets
Kohler Co. 7 1145587-2-A
