3. Prepare the Site
NOTE: Vertical wall installation shown. The valve can also be mounted to a horizontal surface. Refer to
the ″Valve Mounting Configurations″ section.

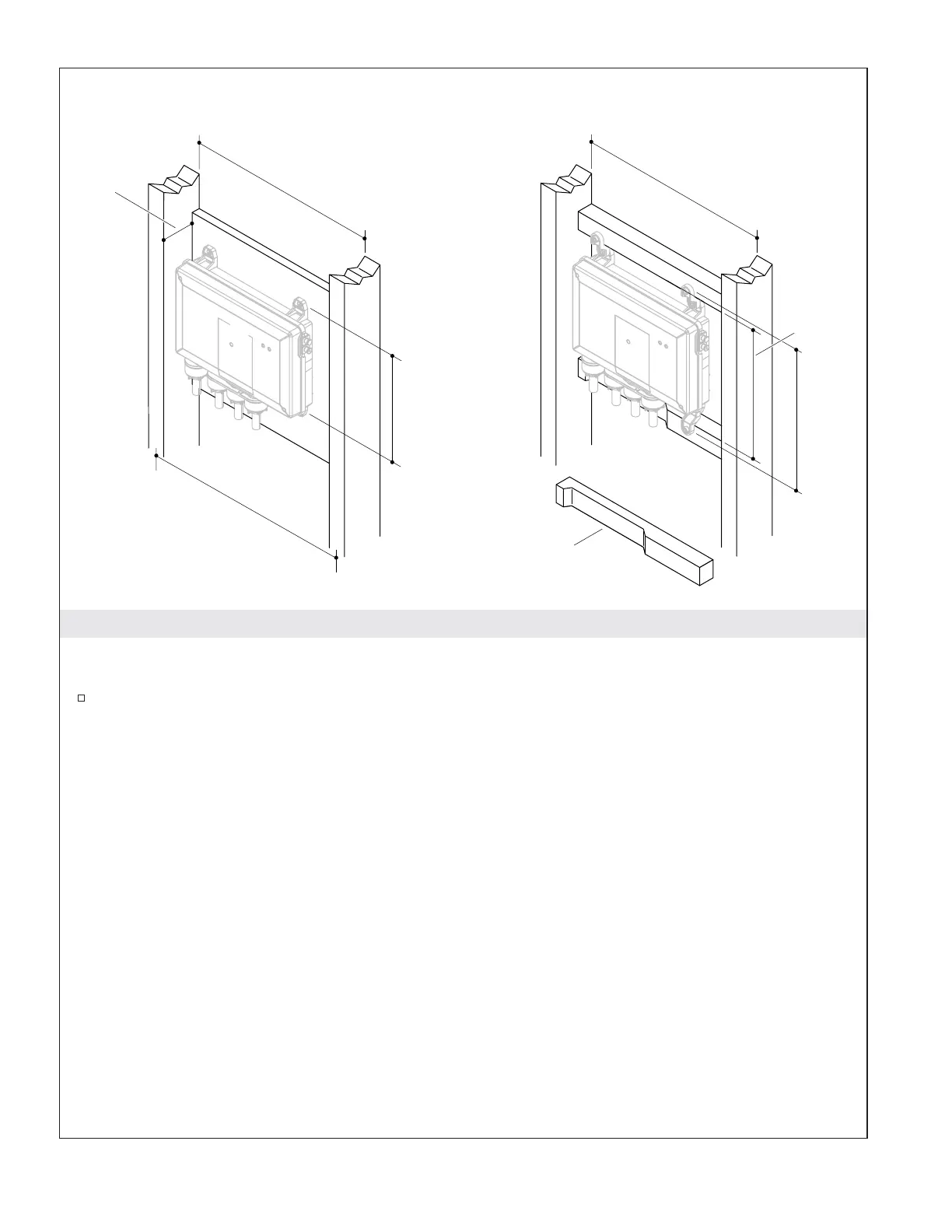

This product is designed to fit within a minimum 14-1/2″ (36.8 cm) 2x4 stud cavity. If necessary to
modify the stud cavity, apply adequate bracing for mounting the valve.
Cross Brace MountBoard Mount
Notch bottom brace.
14-1/2" (36.8 cm) Min
2-3/4"
(7 cm)
Min
9-1/2"
(24.1 cm)
12-1/2"
(31.8 cm)
14-1/2" (36.8 cm) Min
11-5/8"
(29.5 cm)
16" (40.6 cm)
Centers
1145587-2-A 8 Kohler Co.
