3. Install the Bracing

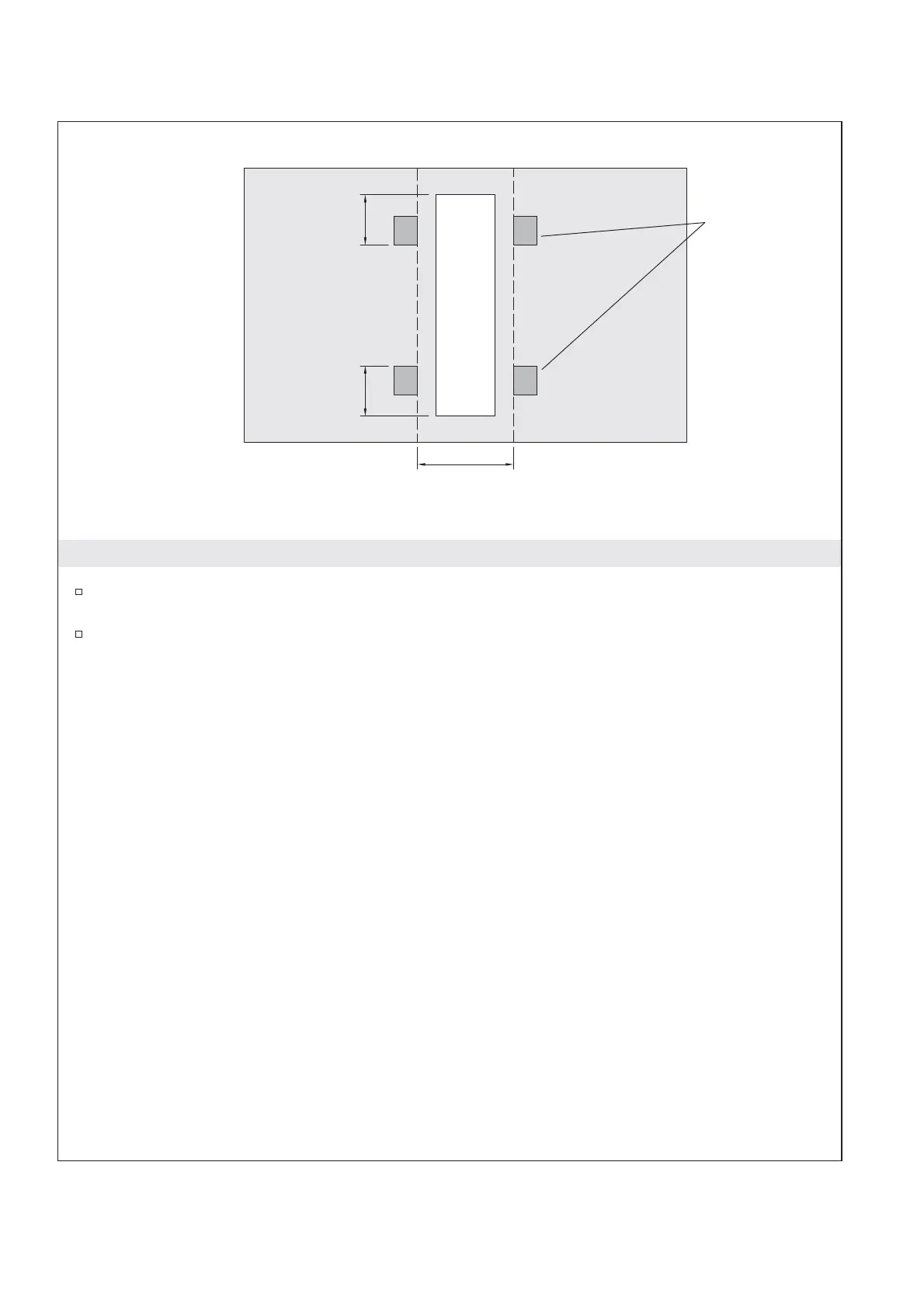

Secure four pieces of 2x4 blocking (not provided) to the rough wall following the dimensions shown
above.
Leave the wood blocking in place until the final step of the installation.
24"
(610 mm)
24"
(610 mm)
10-7/8" (276 mm) = 9" Locker
16-13/16" (427 mm) = 14" Locker
Wood
Blocking
Kohler Co. 5 1248926-2-A
