Kohler KCT MPAC 1000 - Manual Operation (Programmed-Transition Switches)

TP-6126 8/02 7Section 2 Installation
127a
1. Maintenance handle
2. Shaft
1
2

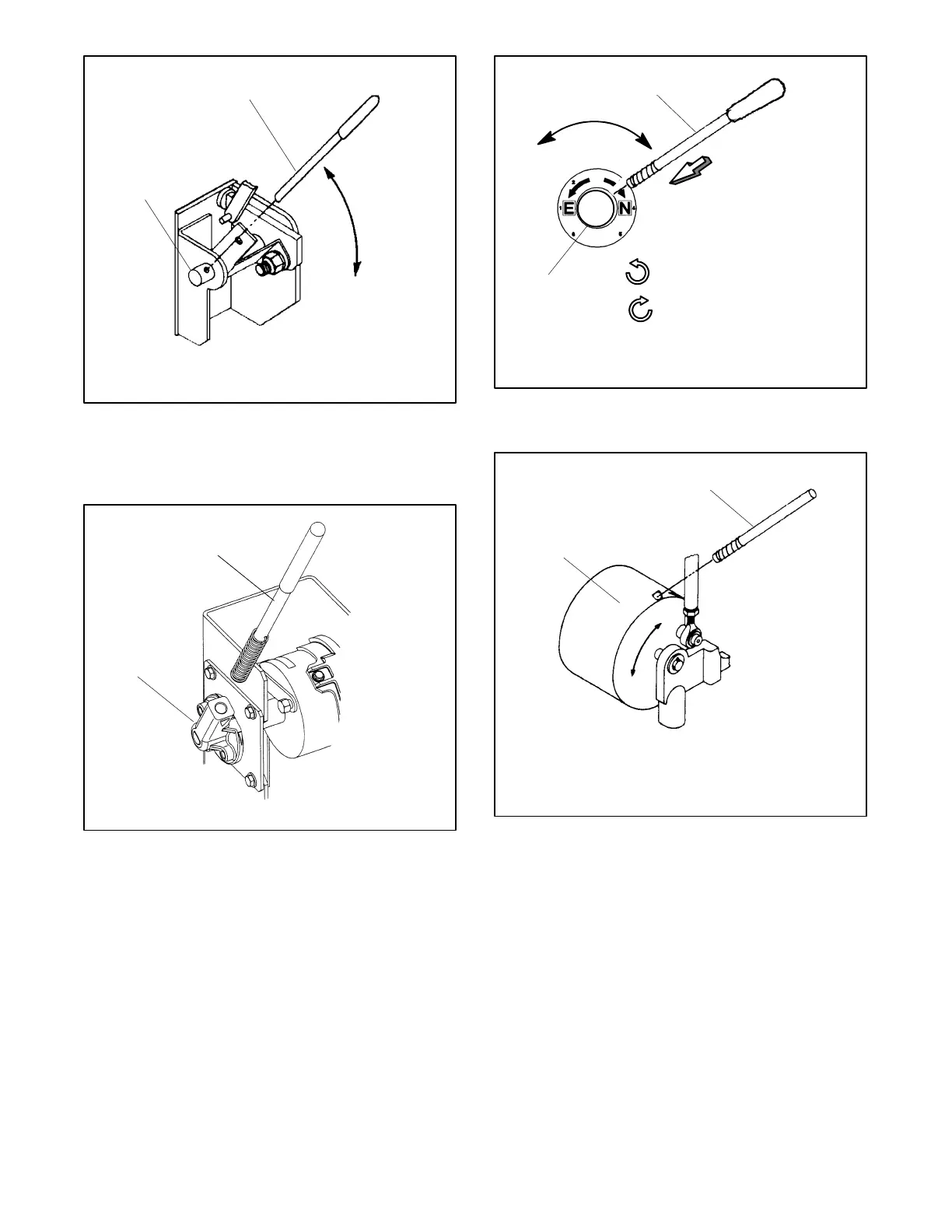

Figure 2 -9 Manual Operation, 225--400 Amp
Open-Transiton Switches and 150--400
Amp Programmed-Transition Switches
(one operator shown)
202
2
1
1. Maintenance handle
2. Hub
1
Figure 2 -10 Manual Operation, 600--1200 Amp
Switches
1
127a
1. Maintenance handle
2. Hub
Turn counterclockwise
to Emergency.
Turn clockwise
to Normal.
2
Figure 2 -11 Manual Operation, 1600--3000 Amp
Switches
2
127a
1. Weight
2. Maintenance handle
1
Figure 2 -12 Manual Operation, 4000 amp switches
