Kohler
®
Diesel
Model KD400
PAGE: 4 OF 4
KOHLER Co., Kohler, Wisconsin 53044 • Tel: 920-457-4441
800-544-2441 • Fax: 920-459-1570 • KohlerEngines.com
Form TP-2611 5/08 © 2008 by Kohler Co. Printed in U.S.A.

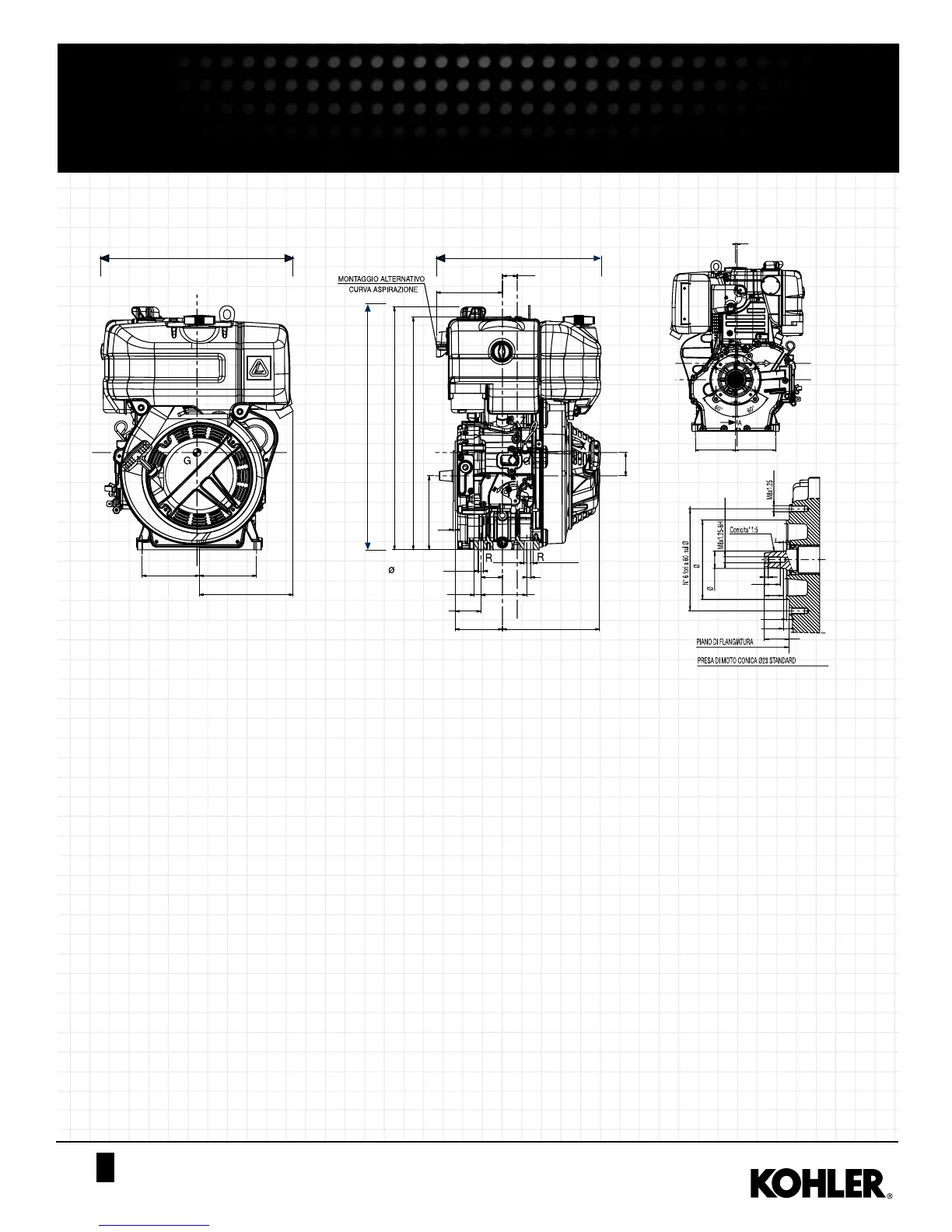

Technical Drawings
Standard Equipment
Recoil Start with Automatic Compression Release
Fuel Tank
Fuel Filter
Dry Air Cleaner
Muffler with Guard
Accelerator and Stop Manual Control
12 V Electric Start with Control Panel
SAE J609a Ext 4 Crankshaft with Type B Mtg. Flange
Fuel Safety Shutdown for Low Oil Pressure
Accessories
Internal Dynamic Balancer
24 V Electric Start
Accelerator and Stop Remote Control
Key Start Panel with Shutdown Device
Fuel Lift Pump
Oil Temperature Switch
Glow Plug on Intake Manifold
SAI J609a Ext 9, 6, and 3 Integral Crankshafts
with Type B Mtg. Flange
Extended Wiring Harness
403.0/15.86
335.5/13.20
31.0/1.22
138.5/5.45
512.0/20.15
120.0/4.72120.0/4.72
196.70/7.74
509.0/20.03
488.0/19.21
155.0/6.10
4.0/
0.15
203.5/8.01
99.0/3.89
54.0/2.12
14.0/0.55
49.0/1.92
120.0/4.72
120.0/4.72
45.0/1.77
5.5/0.21
5.5/0.21
96.0/3.77
8.0/0.31
21.0/0.82
5.0/0.19
23.0/0.90
105.0/4.13
25.0/0.98
4.0/0.15
8.0/0.31
33.0/1.29
135.0/5.31
5.0/0.19
