TP-7070 8/20 25Section 2 Operation
2.7 HMI Screen Layout
2.7.1 Home Screen
The home screen of the APM802 controller’s human-machine interface (HMI) contains status messages, navigation
b
uttons, data displays, and controls described briefly in the following sections. See Figure 2-5.
1
1. Top bar
2. Control Panel
3. Generator view
3
2

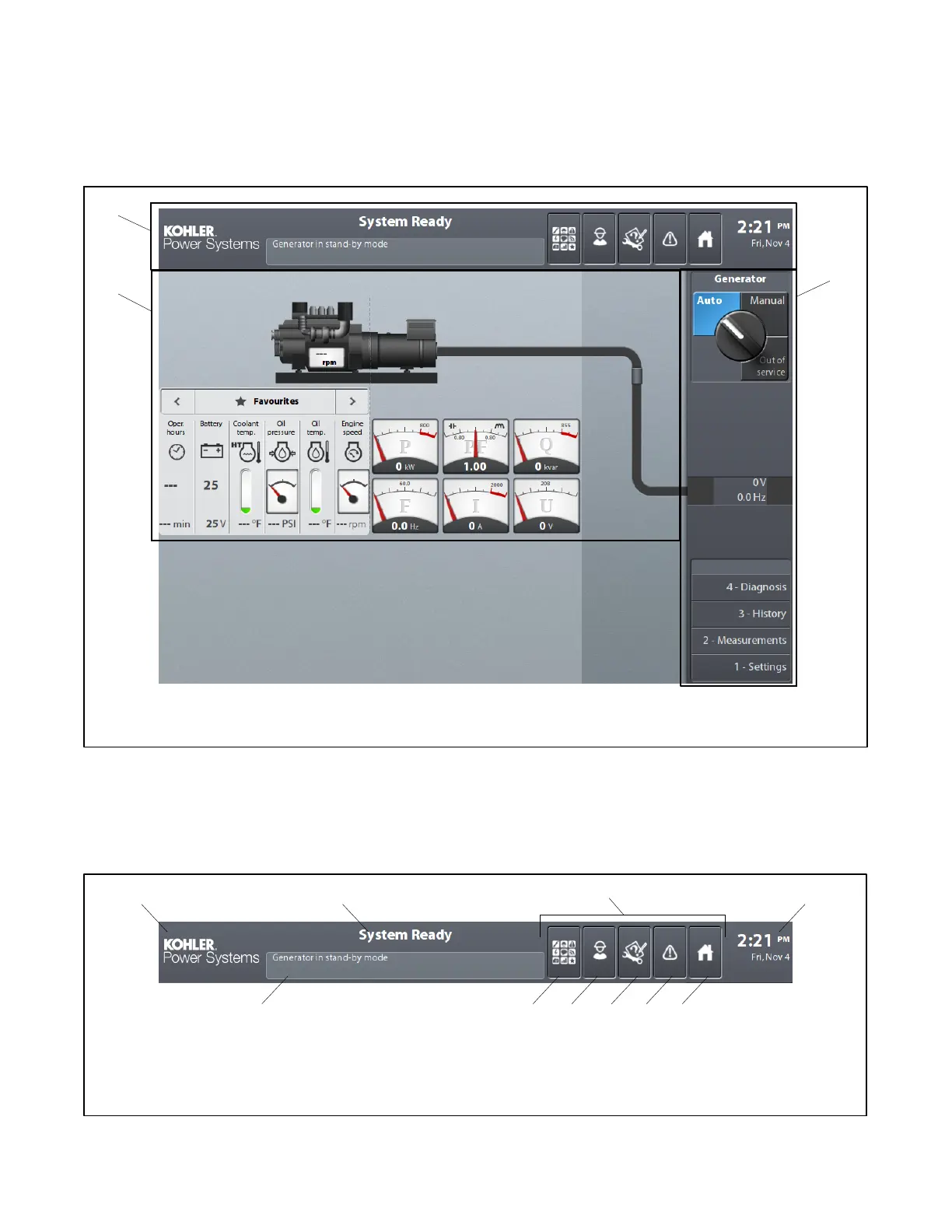

Figure 2-5 Home Screen
2.7.2 Top Bar
The top bar is always present, it displays system information and status messages, and it has shortcut buttons for quick
access to other screens.
1. Shortcut to operating screen
2
. Operating status message
3. Shortcut buttons
4. Date and time display
5. To home screen
6. Alarm indicator and access to events screen
7. For future development
8. To operator login
9. To applications screen
10. Operating sequence display
1 2
3
4
9 8 7 6 510
Figure 2-6 Top Bar
