2.12.2 Menu 2- Measurements
The 2- Measurements menu can be accessed via the button with the same name. This gives access to the screens
l
isted below.
Screen 2.2 - Mechanical
Screen 2.3 - Generator electrical
Screen 2.6 - Harmonics
Note: The measurements menus are view-only; no modifications are possible from these menus.
Screen 2.2- Mechanical
The 2.2- Mechanical screen gives an overview of all the mechanical values for the associated generator.
1. Separation of the mechanical values into three categories
1

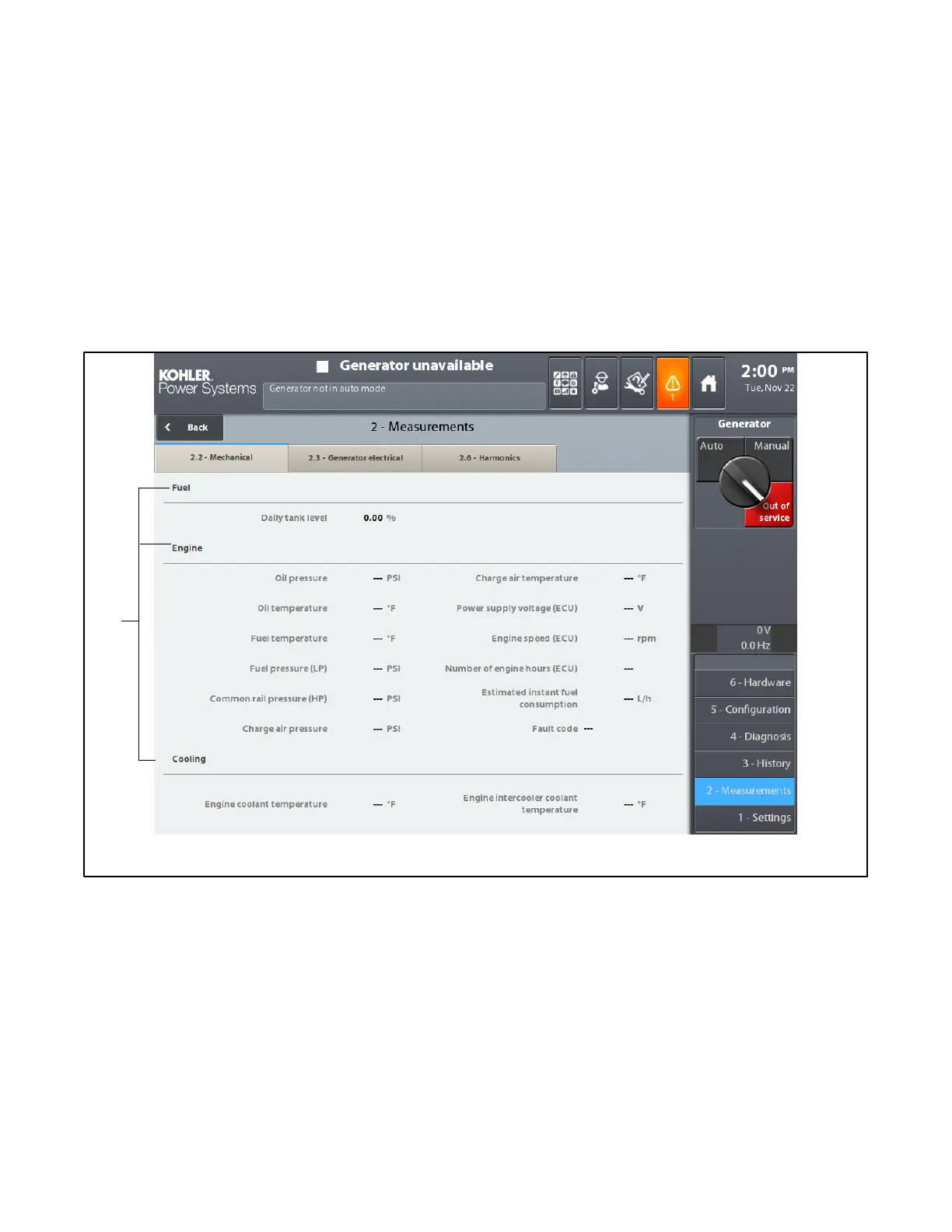

Figure 2-64 Mechanical Screen
Note: Other values may be displayed depending on the engine selected in the 6.1.2 generator set screen.
