Kohler KD2500

TP-7070 8/2048 Section 2 Operation
1. Input line title
2. Electrical connection
3. Input internal variable
4. Normally closed contact
5. Input variable
4
1
5
2
3

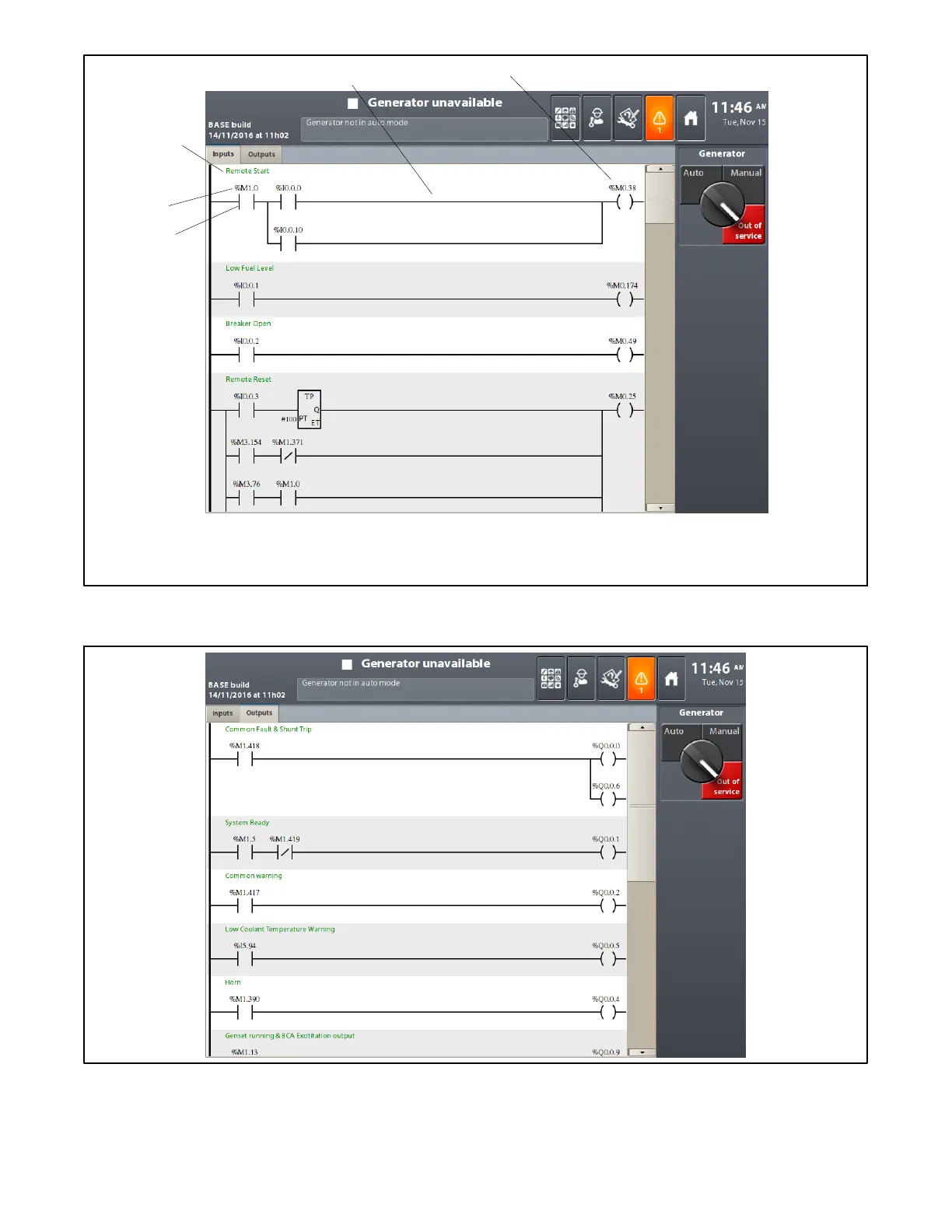

Figure 2-54 Inputs Network
Figure 2-55 Outputs network
