TP-7070 8/20 65Section 2 Operation
Screen 4.5- Regulation
T
he 4.5- Regulation screen is used to read all of the internal variables for the regulation modules.
1. Entry field for a variable name
2. Value or status of the variable
3. Regulation status
1
2
3

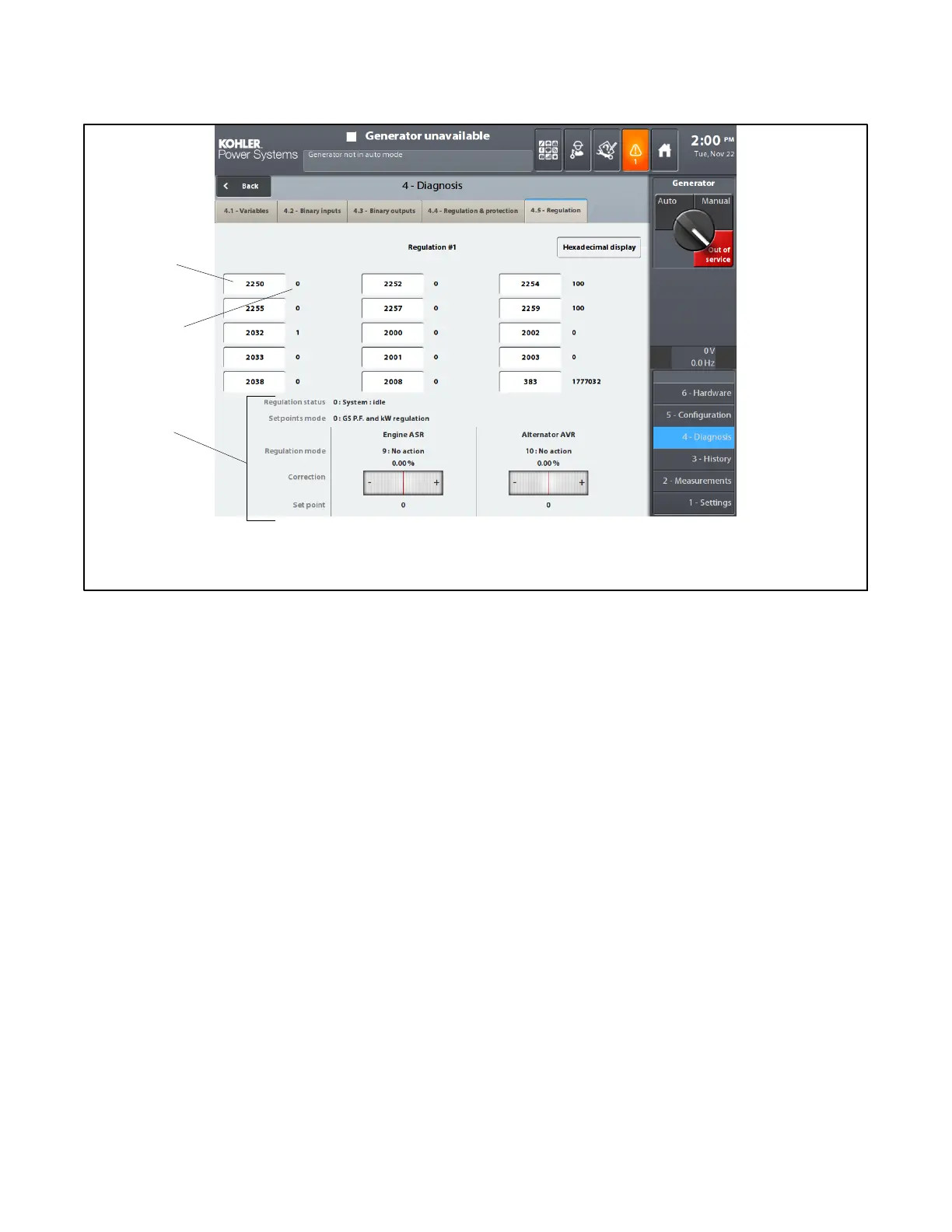

Figure 2-74 Regulation Screen
The virtual numeric keypad appears after the variable entry field has been pressed.
