Kohler KD800

TP-7070 8/2058 Section 2 Operation
Screen 2.6- Harmonics
T
he 2.6- Harmonics screen is used to monitor the change in harmonics in real time on the generator set.
2
1. Harmonics
2. Line-to-neutral voltage
3. Current
3
1

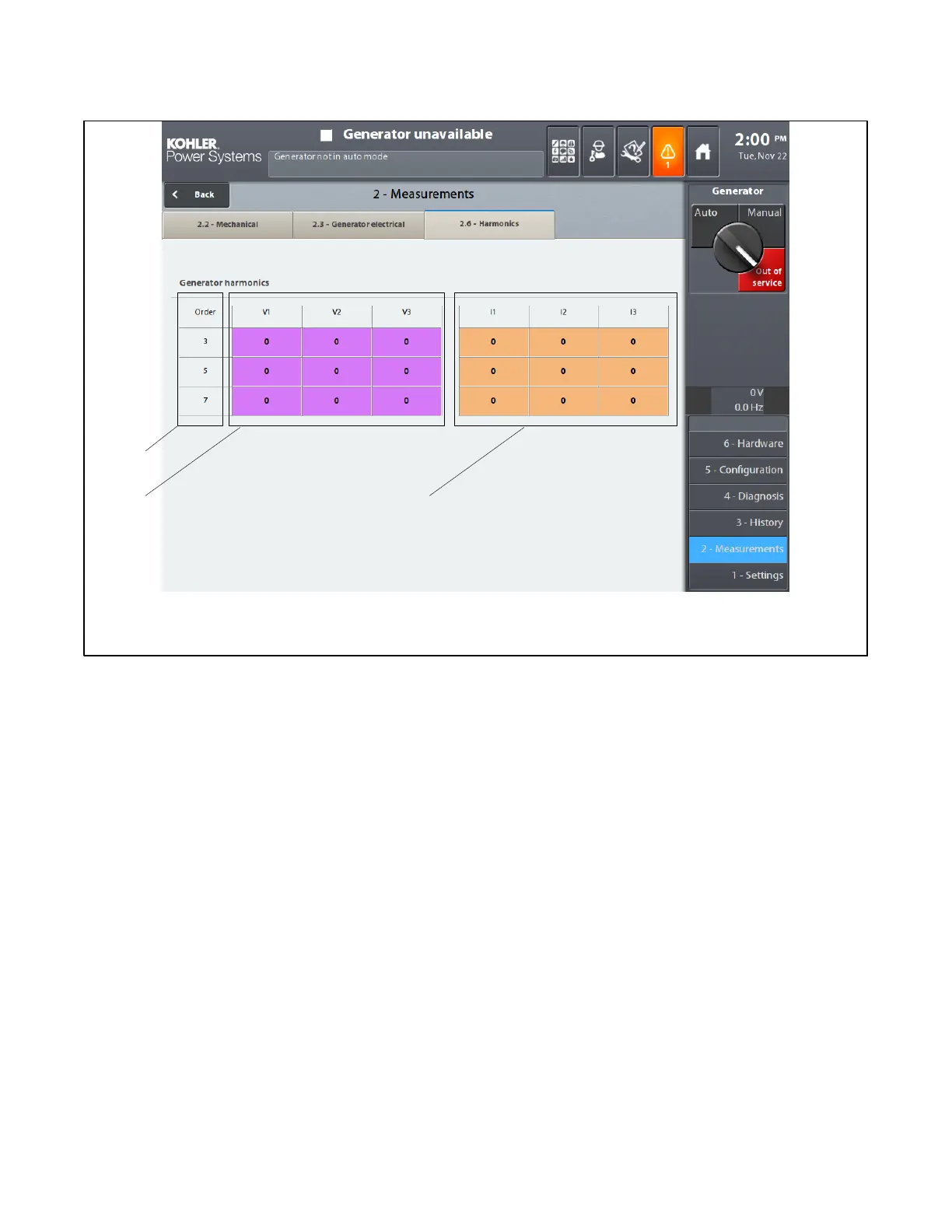

Figure 2-66 Harmonics Screen
