INFORMATION ABOUT OVERHAULING
8.7 Oil pump check
8.7.1 Dimensional and visual check

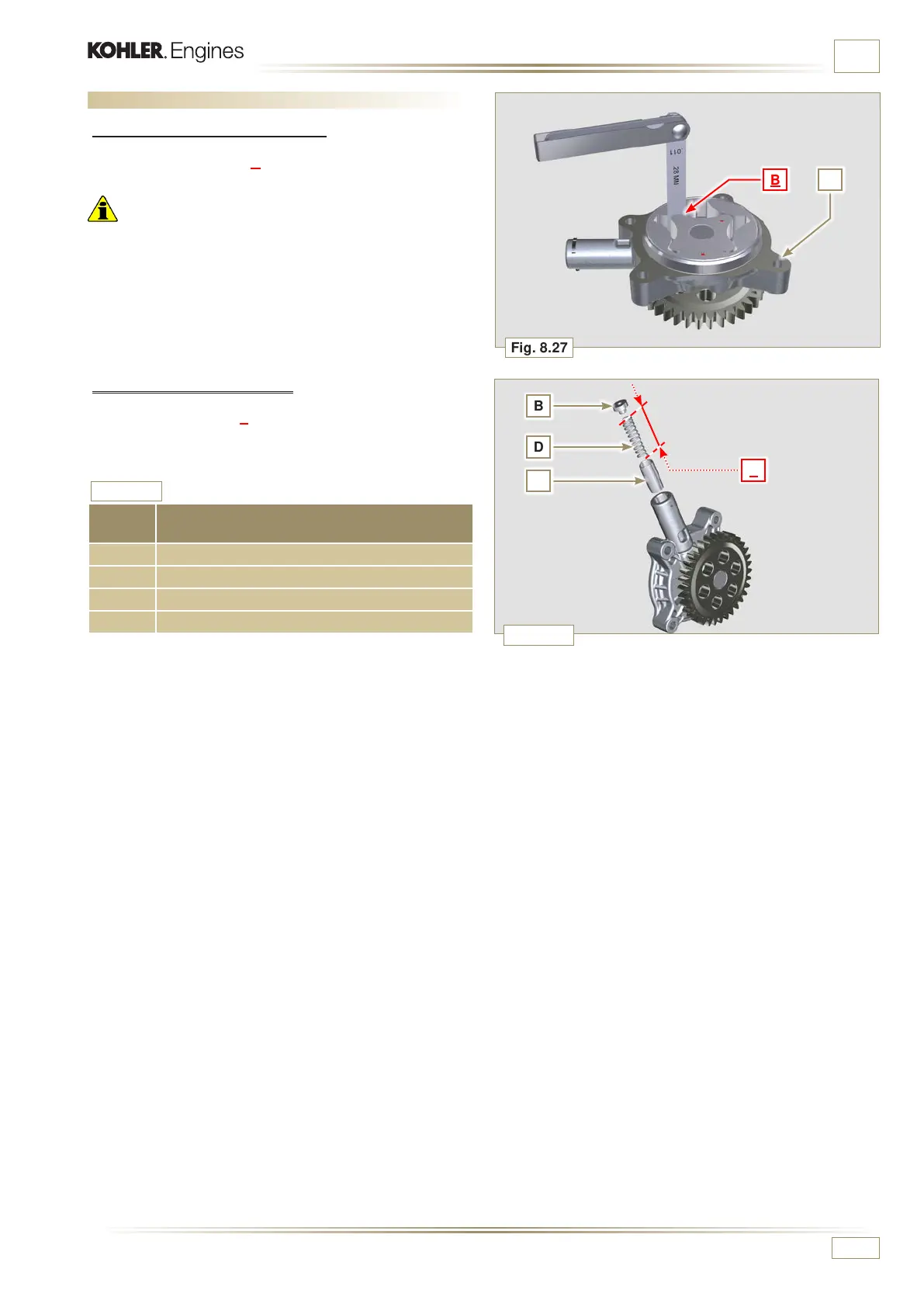

Measure clearance value B between the rotor teeth, the value
of allowable wear is MAX 0.28 mm.
Important
• Should the results from checks carried out not be in
accordance with the conditions described, replace the oil
pump A.
8.7.2 Oil pressure valve check
Measure the free length F of spr ing D, which must be 47.5 mm.
If the measured value does not correspond to the value
indicated, replace spring D.
POS. DESCRIPTION
B Plug
C Gasket
D Spring
E Piston
