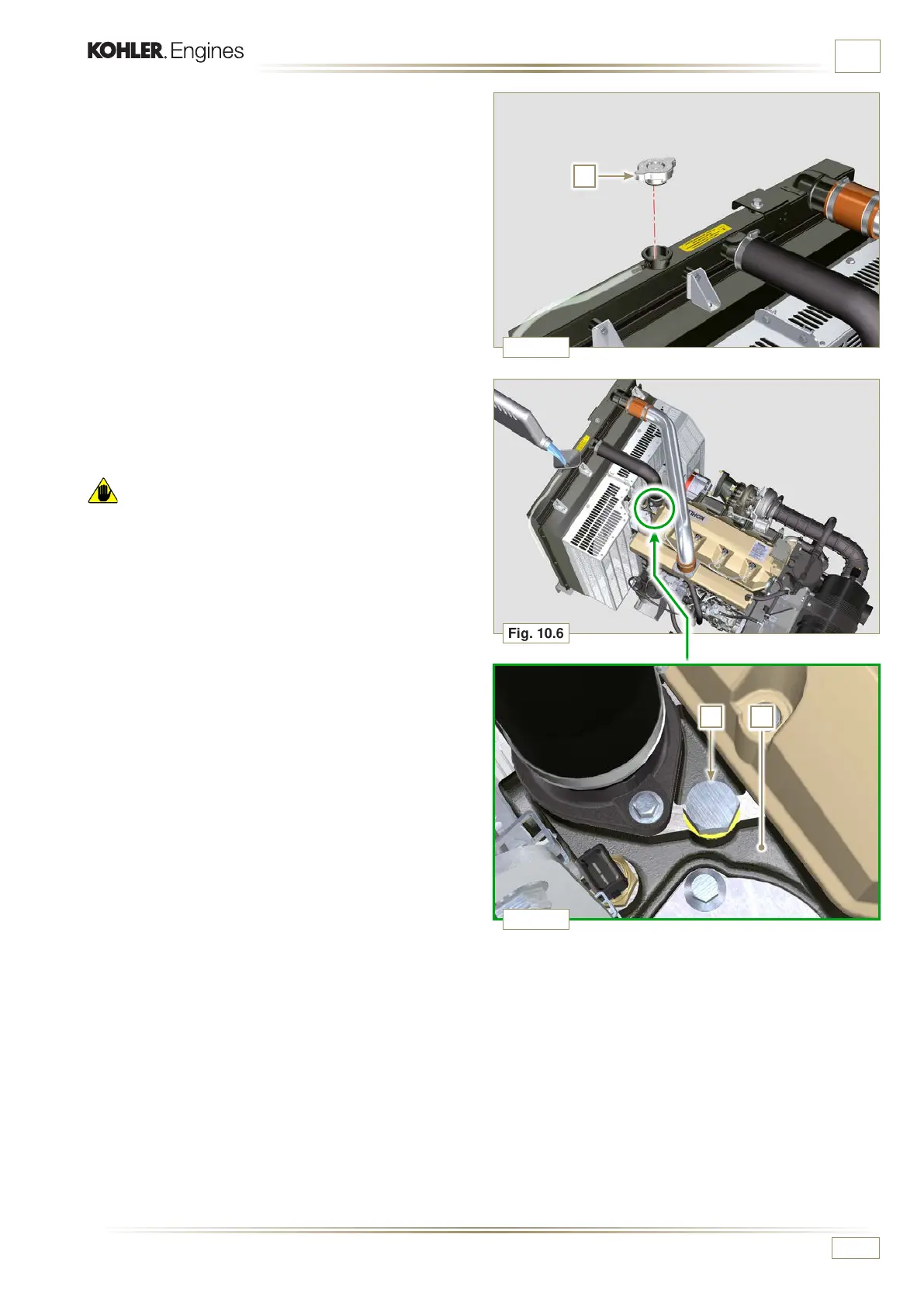

Fig. 10.5
Fig. 10.6
D
Fig. 10.7
F
H
ED0053030410
FLUIDS FILLING INFORMATION
5 - Loosen the screw F on the head G, release any air
and tighten the screw (Fig. 10.7); Tightening torque:
- 8 Nm for screw M6 (Rev. 00);
- 30 Nm for screw M12 (Rev. 01).
6 -
Start the engine without the radiator cap D or the ex pansion
tank cap B.
7 -
Keep the engine at idle speed or without a load until the
cooling liquid level goes down and becomes steady (the
waiting times varies according to the ambient temperature).
8 - Turn off the engine and allow it to cool.
9 - If there is an expansion tank top liquid up to the mark MAX.
10 - Without expansion tank top liquid up until the pipes inside
the radiator are covered by 5 mm. Do not overfill the
radiator, but leave room for the fuel to expand.
11 - Tighten the radiator cap D or the expansion tank cap B.
Warning
• Before starting make sure that the radiator cap and expansion
tank cap, if present, are installed correctly to avoid loss of
liquid or vapour at high temperatures.
12 - After a few hours of operation stop the engine and allow it
to cool.
Check and top up the coolant liquid.
