TECHNICAL INFORMATION

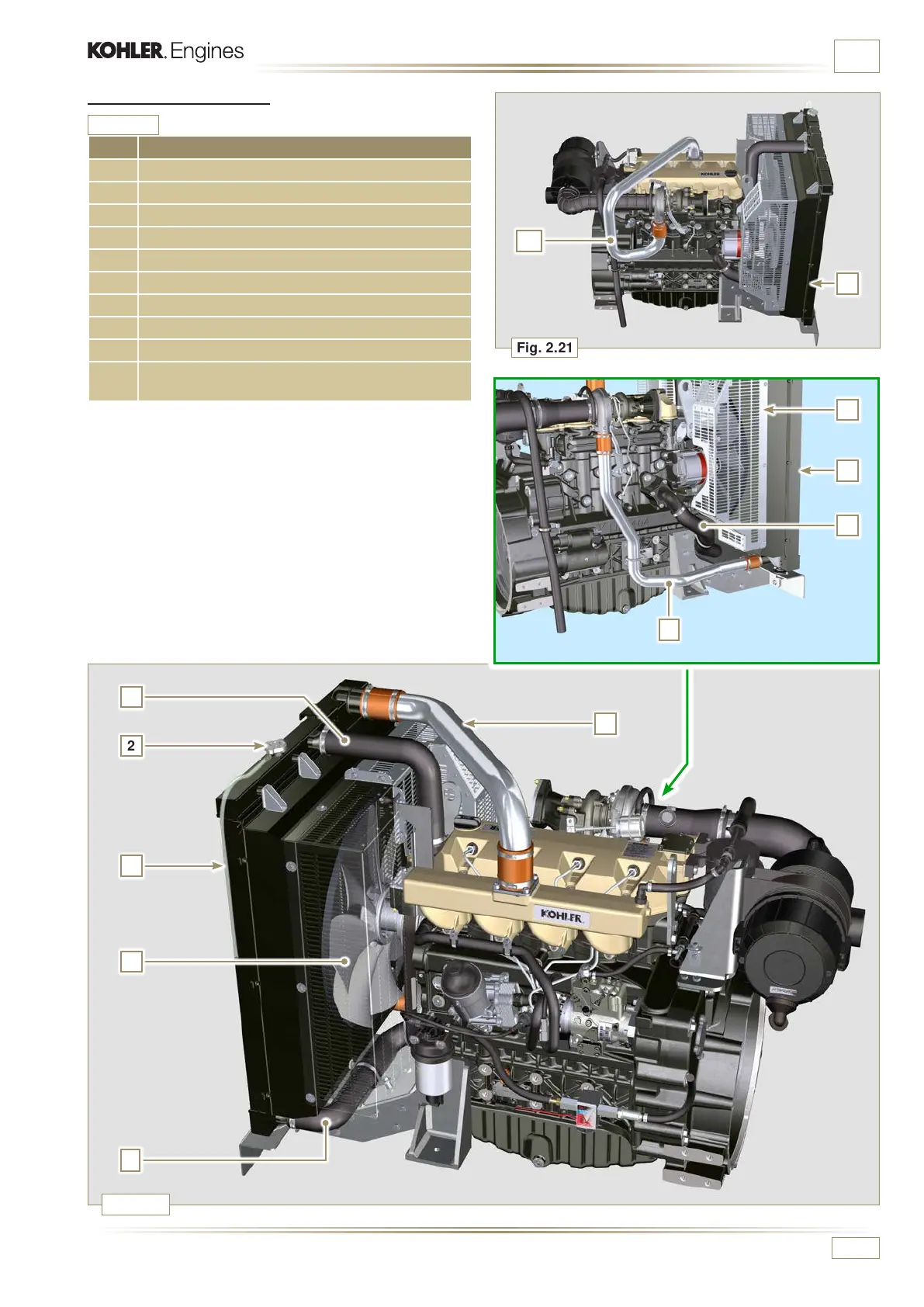

2.11.4 Radiator (optional)
POS. DESCRIPTION
1 Radiator
2 Coolant rell cap
3 Vent tube or excess coolant return
4 Coolant ow manifold
5 Coolant intake manifold
6 Fan
7 Protective grid
8 Air hose (from Intercooler to manifold - Fig. 2.22)
9 Intercooler air delivery hose (Fig. 2.22)
10 Compressed air delivery hose to the intake
manifold (Fig. 2.21)
NOTE:
Nella Fig. 2.21 illustrates the radiator without Intercooler
(the differences in POS. 10). Fig. 2.22 illustrates the
radiator with Intercooler (the differences in POS. 8 - 9).
Component not necessarily supplied by KOHLER.
