46
5
4
10
6
11
12
7
8
1
9
8
1
2
3
4
5
6
7
9
8
Fig. 2.48
Fig. 2.49
Fig. 2.50
Tab. 2.40
ED0053030410
TECHNICAL INFORMATION
The distribution system is equipped with hydraulic tappets that automatically recover the operation of the rocker rods assembly.
No registration is therefore required.

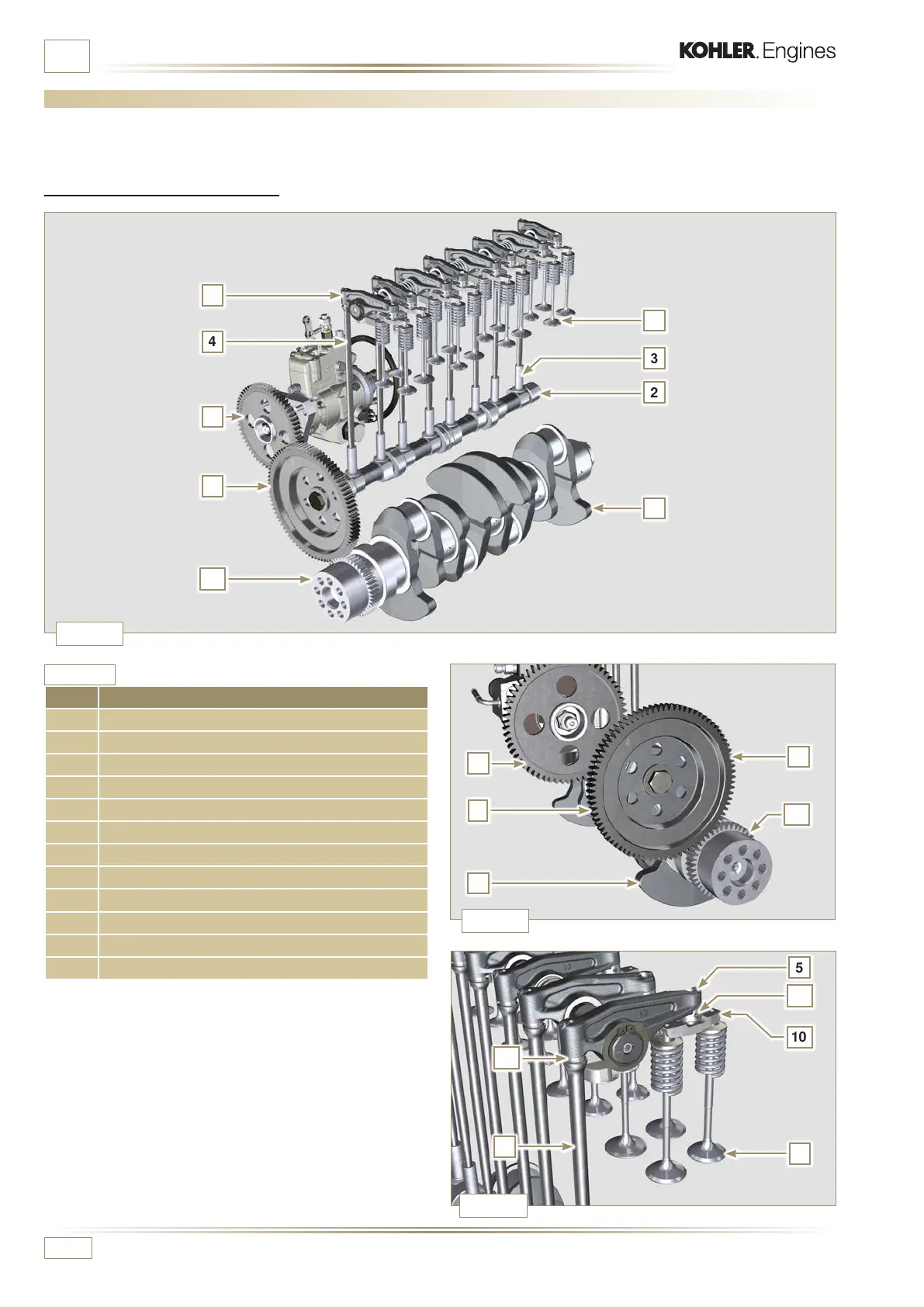

2.16.1 Components identication
2.16 Timing system and tappets
POS. DESCRIPTION
1 Crankshaft
2 Camshaft
3 Camshaft tappets
4 Rocker arm control rod
5 Rocker arms
6 Valves
7 Fuel injection gear pump control
8 Camshaft control gear
9 Crankshaft gear
10 Valve control bridge
11 Articulation control valves
12 Hydraulic tappets
